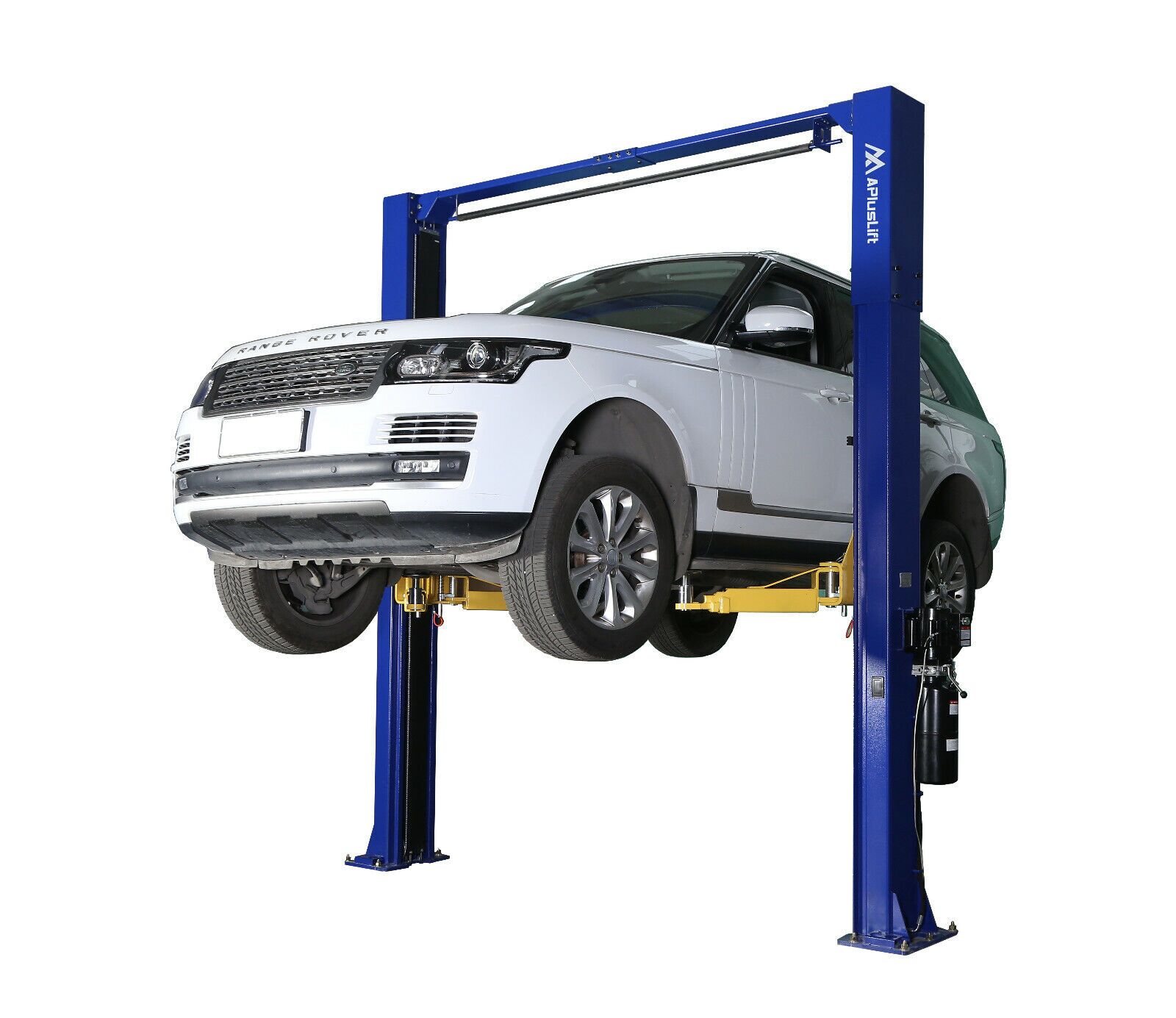

The APlusLift HW-10KOH-A Overhead Car Lift combines quality, strength, and affordability in one high-capacity solution. Featuring a durable double “S” column design, it supports a 10,000 lb load capacity, making it a dependable choice for both professional and home garages. Available through Danbury Automotive Lifts, this lift is backed by an industry-leading 5-year warranty and crafted to meet CE-certified safety standards. With symmetrical and asymmetrical arm options, advanced safety features, and a high-efficiency hydraulic system, this lift offers secure and smooth operation every time.
| Feature | Details |
|---|---|
| Brand | APlusLift (offered by Danbury Automotive Lifts) |
| Model | HW-10KOH-A |
| Load Capacity | 10,000 lbs |
| Overall Height | 143.2 inches |
| Overall Width | 134.3 inches |
| Maximum Lift Height | 81″ with truck adapters; 75″ without truck adapters |
| Minimum Height of Pads | 4 inches |

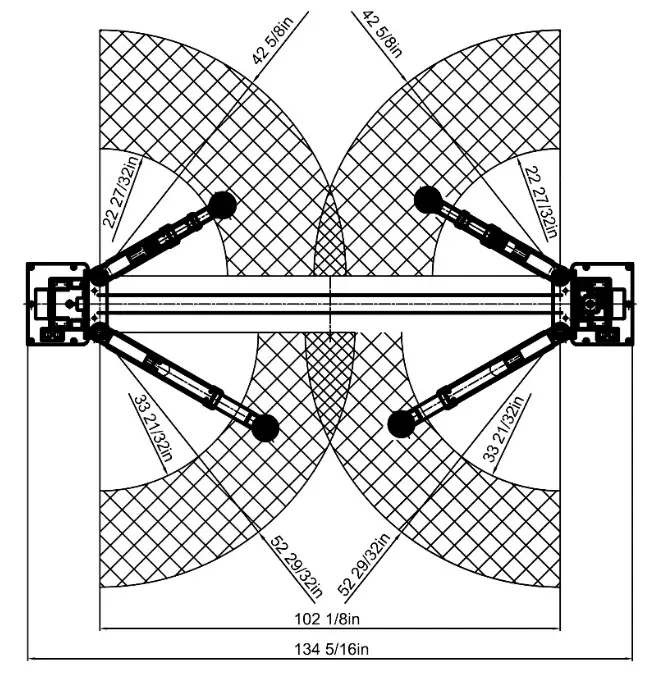

| Drive-Through Width | 100 inches (carriage to carriage) |
| Column to Column Width | 109 inches |
| Column Cross Section | 11″ (L) x 7″ (W) |
| Motor | 220V Single Phase, 3HP, 10A (recommended 30A breaker) |
| Lifting Mechanism | Dual hydraulic cylinders, chain drive |
| Hydraulic Oil | 3-5 gallons AW32/AW46 |

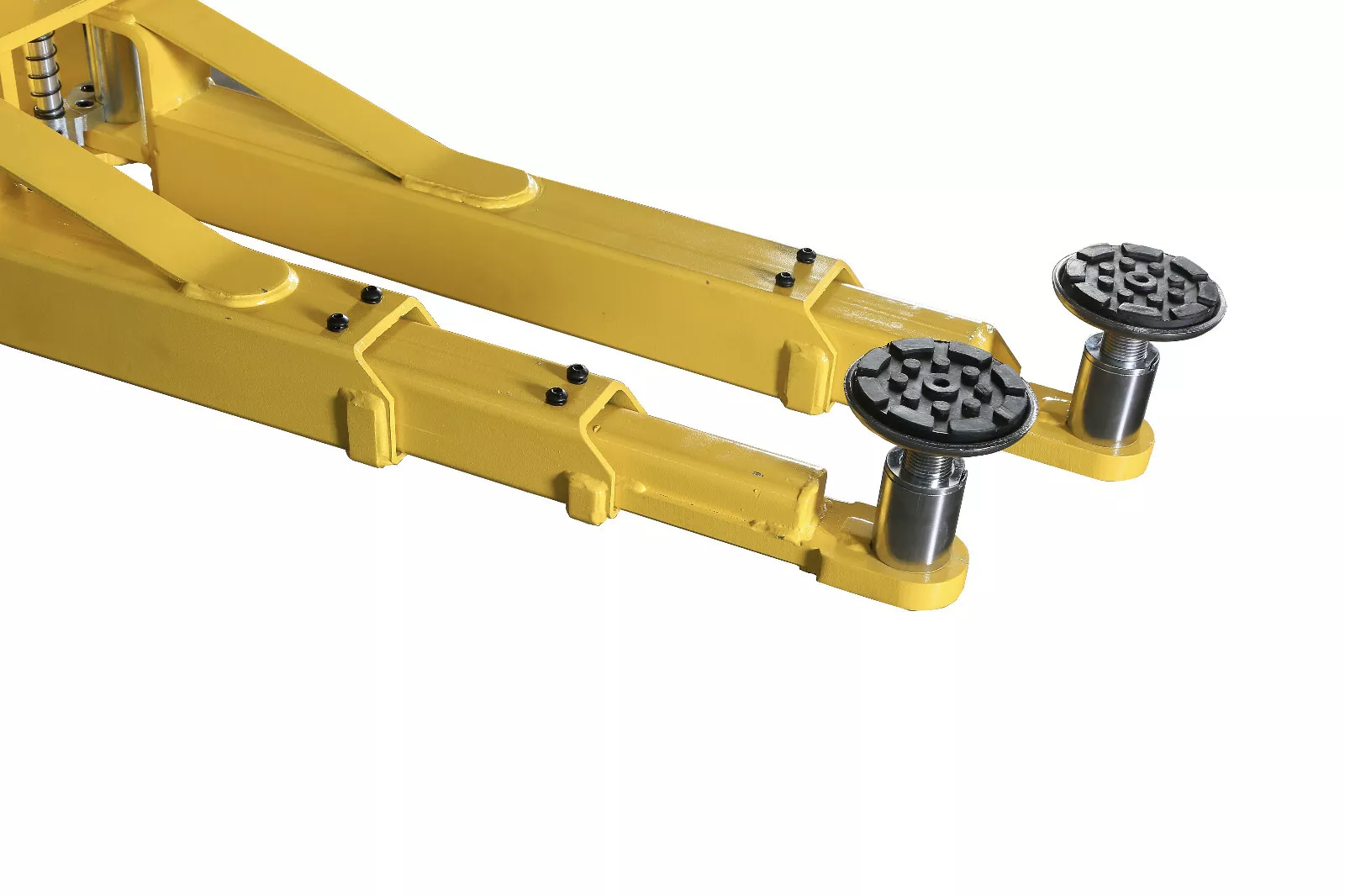

| Combo Arm Assembly | Symmetrical and asymmetrical arms with adjustable reach |
| Truck Adapters | 4 pieces of 4″ tall adapters included |

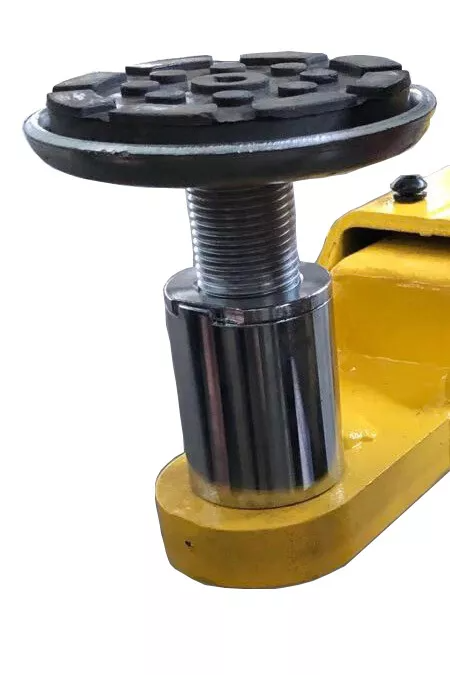

| Adjustable Pads | 4 adjustable screw pads included |

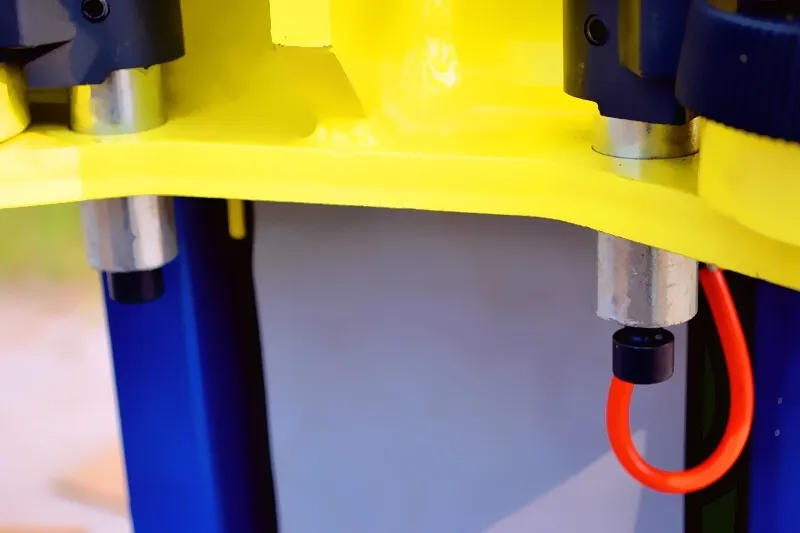

| Safety Mechanisms | – Double-point safety lock release – Automatic arm lock restraints – Relief valve in power pump to prevent overloading – Door guards with protection rubber – Up-limit switch to protect cylinder stroke |
| Corrosion Resistance | Powder-coated finish for enhanced durability |

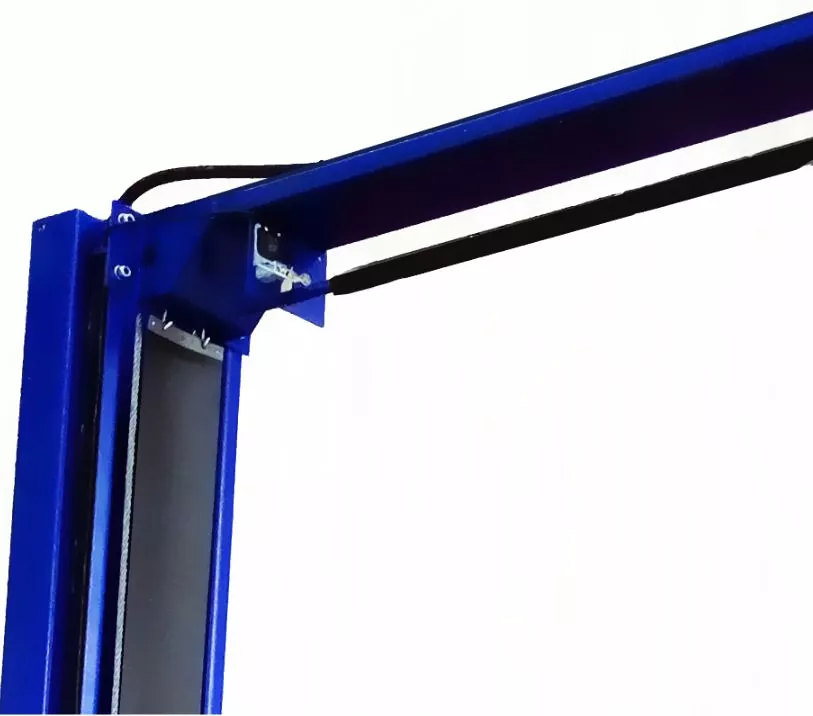

| Cable & Pulley | Heavy-duty 3/8″ diameter cable and 5″ pulley for increased durability |
| Slider Material | Ultra-high molecular self-lubricating nylon slider for smooth carriage movement |
| Concrete Requirements | 6″ thick at 3500 psi (4″ thick for vehicles 9,000 lbs and below) |

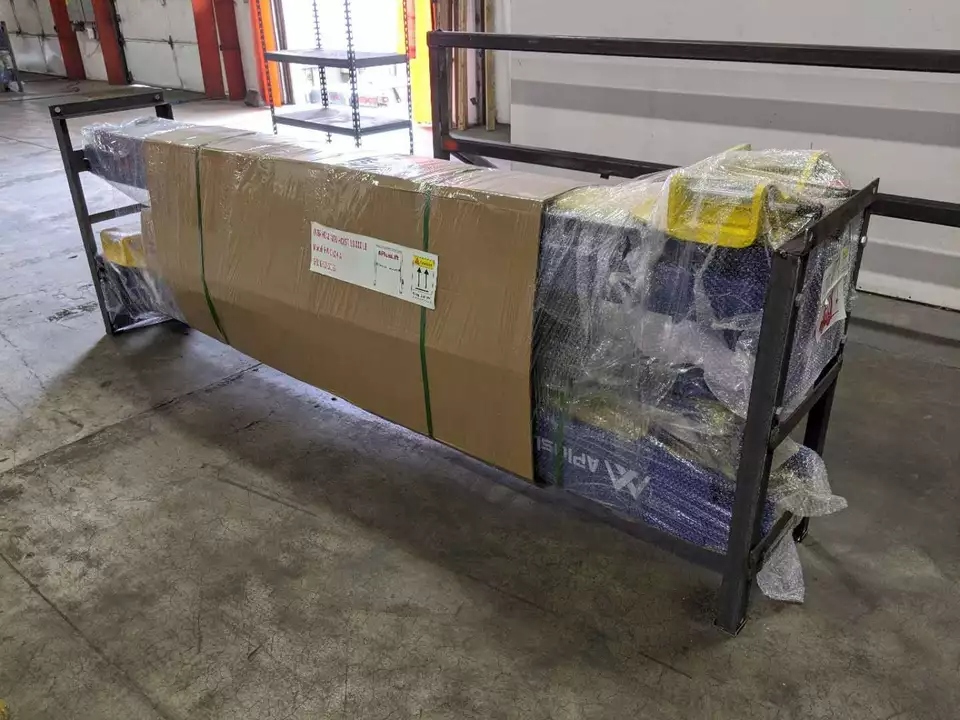

| Shipping Details | Weight: 1,470 lbs Package Size: 113″ (L) x 22″ (W) x 40″ (H) |
| Warranty | Industry-Leading 5-Year Warranty |
| Additional Notes | Built with high-strength steel and precision engineering. Danbury Automotive Lifts offers full parts availability and support, backed by our 5-year warranty. |
