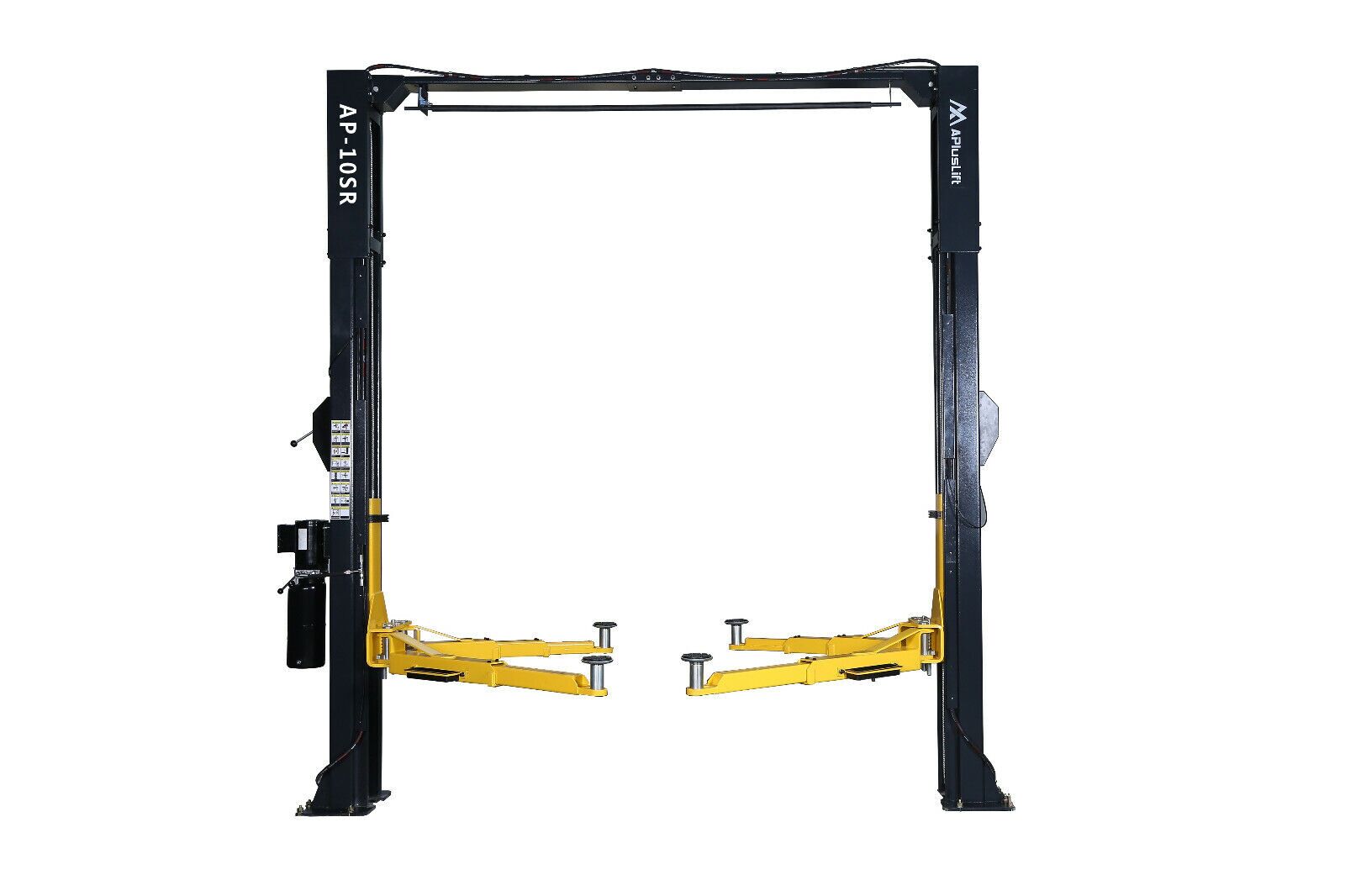

The APlusLift AP-10SR 10,000 lb Overhead Car Lift is a high-performance, single-point release lift designed to provide safety, reliability, and ease of use. An upgrade from the popular HW-10KOH-A model, the AP-10SR adds a convenient single-point lock release system, making it an ideal choice for professional garages and home workshops. Available through Danbury Automotive Lifts and backed by an industry-leading 5-year warranty, this CE-certified lift is built to the highest standards, ensuring long-lasting durability and efficiency.
| Feature | Details |
|---|---|
| Brand | APlusLift (offered by Danbury Automotive Lifts) |
| Model | AP-10SR |
| Load Capacity | 10,000 lbs |
| Overall Height | 143.2 inches |
| Overall Width | 134.3 inches |
| Maximum Lift Height | 81″ with truck adapters; 75″ without truck adapters |
| Minimum Height of Pads | 4 inches |
| Drive-Through Width | 100 inches (carriage to carriage) |
| Column to Column Width | 109 inches |
| Column Cross Section | 11″ (L) x 7″ (W) |
| Driving Mode | Dual hydraulic cylinders, chain drive |
| Motor | 220V Single Phase, 3HP, 10A (recommended 30A breaker) |
| Hydraulic Oil | 3-5 gallons AW32/AW46 |
| Combo Arm Assembly | Symmetrical and asymmetrical arm assembly with adjustable screw pads |
| Truck Adapters | 4 pieces of 4″ height extensions included |
| Adjustable Pads | 4 pieces included for flexible positioning |
| Safety Mechanisms | – Single-point safety lock release – Automatic arm lock restraints – Relief valve in power pump to prevent overloading – Door guard protection rubber |
| Corrosion Resistance | Powder-coated finish for superior durability |
| Cable & Pulley | Heavy-duty 3/8″ diameter cable and 5″ pulley for enhanced durability |
| Slider Material | Ultra-high molecular self-lubricating nylon for smooth carriage movement |
| Concrete Requirements | 6″ thick at 3500 psi (4″ thick for vehicles under 9,000 lbs) |
| Shipping Details | Weight: 1,400 lbs + 120 lbs Package Size: 113″ (L) x 22″ (W) x 40″ (H), additional package: 38″ (L) x 17″ (W) x 14″ (H) |
| Warranty | Industry-Leading 5-Year Warranty |
| Additional Notes | Built with high-grade steel and precision engineering. Danbury Automotive Lifts guarantees durability, offering full parts availability and a 5-year warranty for dependable performance. |
