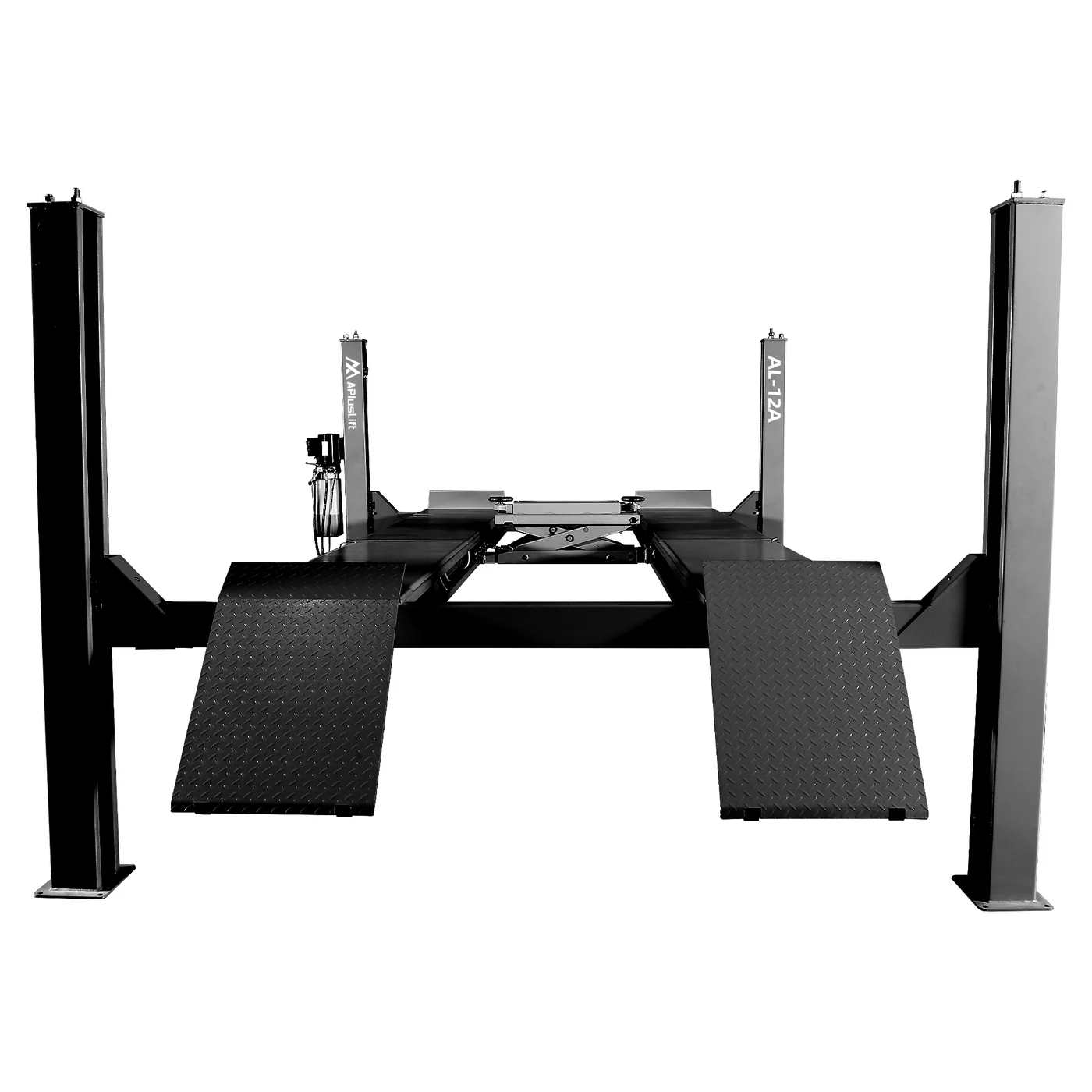

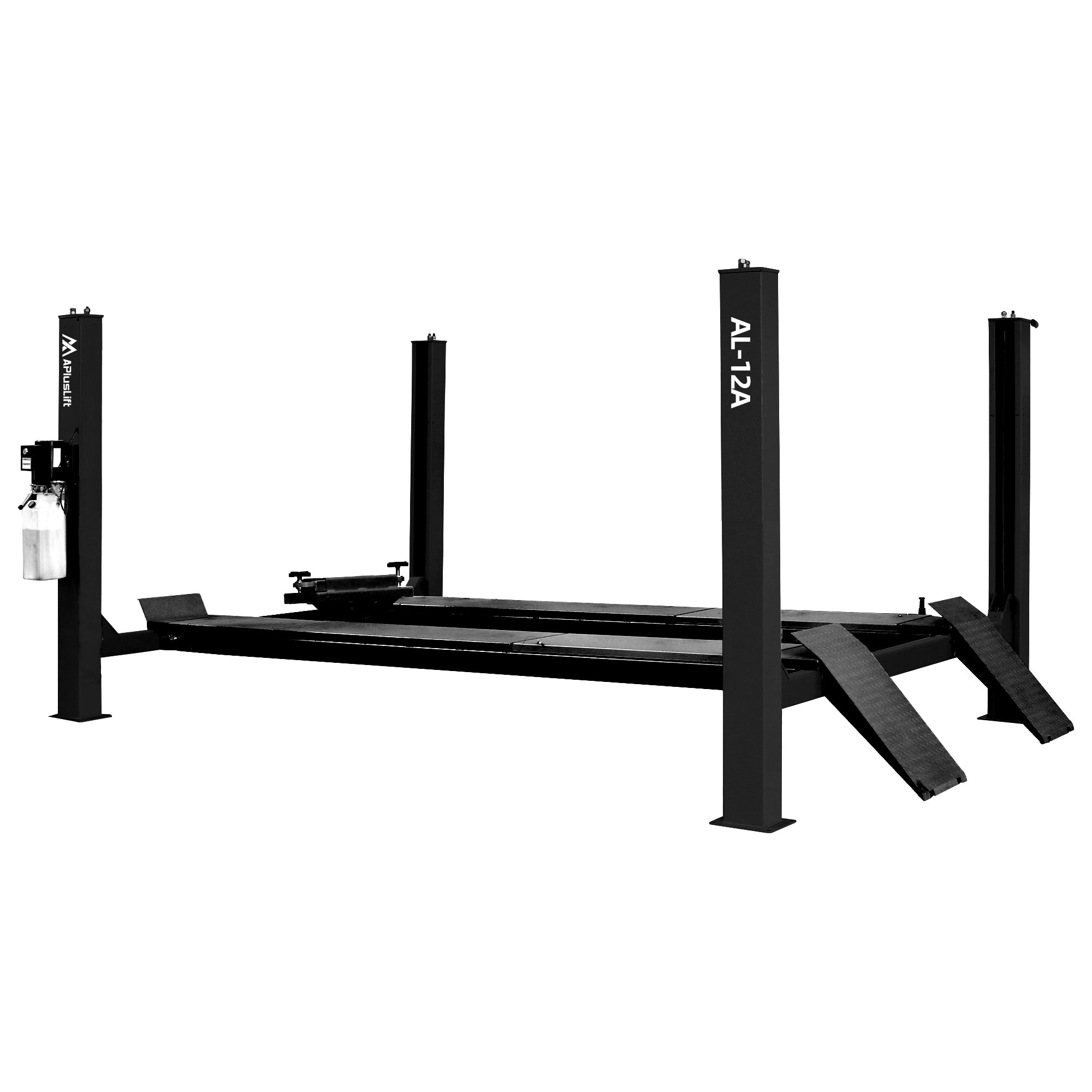

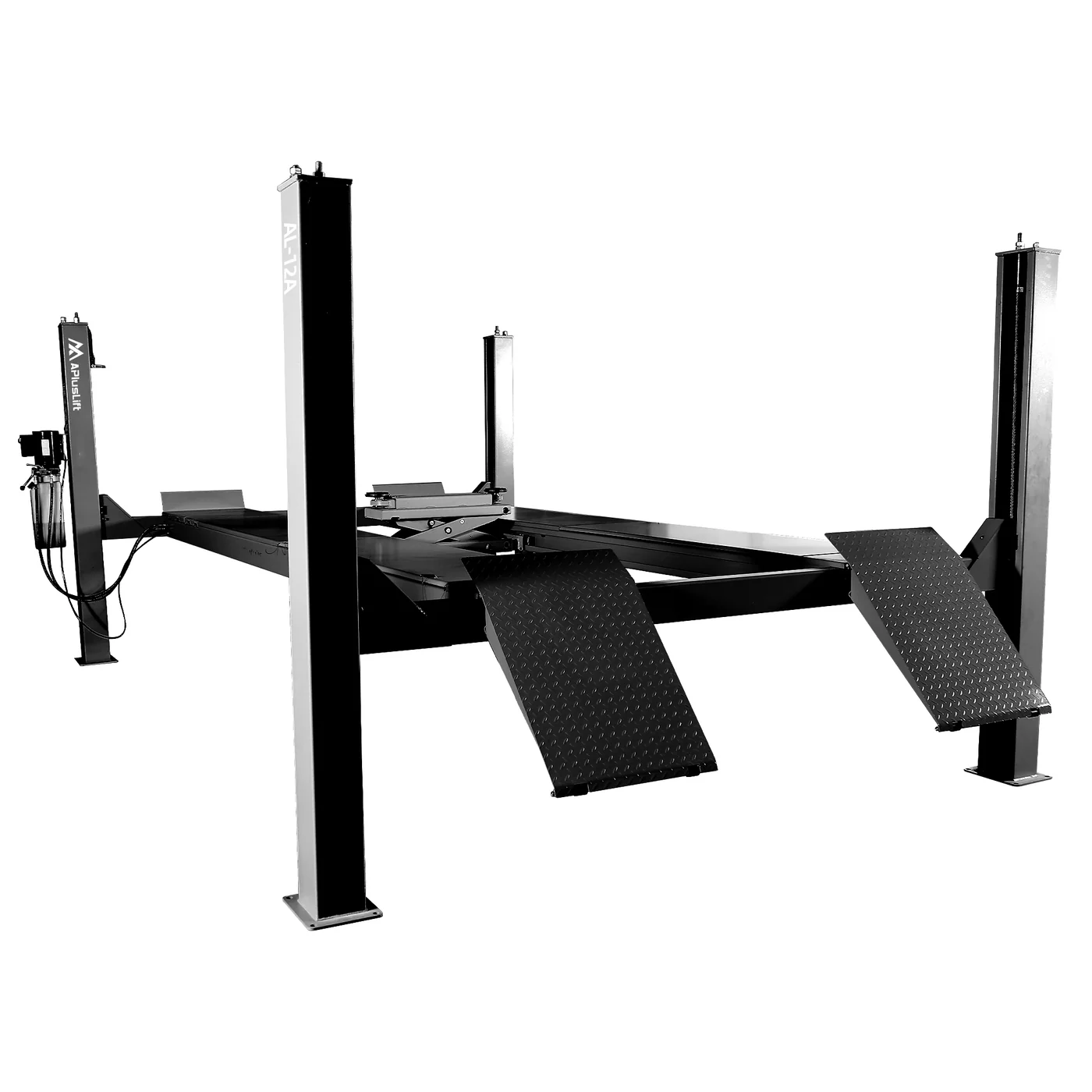

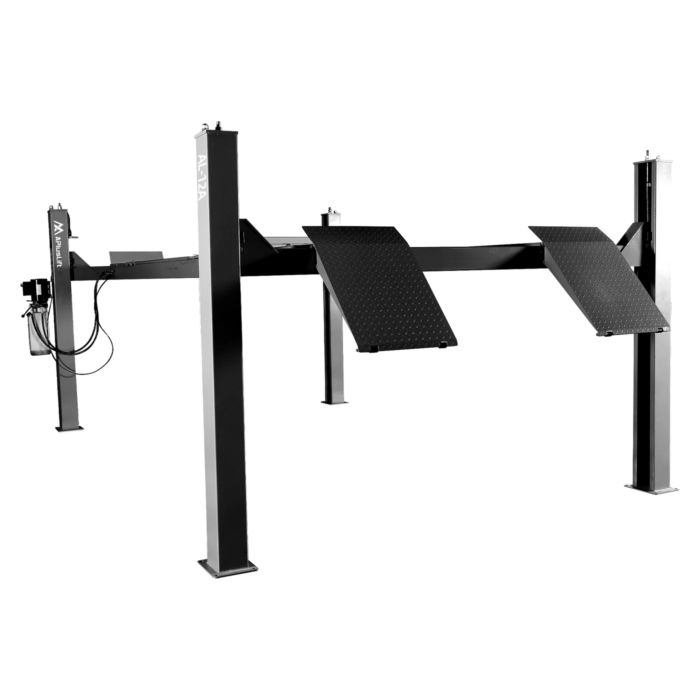

The APlusLift AL-12A (HW-12S) is a robust 4-post alignment lift designed for high-performance alignment and service tasks. With a 12,000 lb capacity, it’s ideal for commercial-grade usage in parking, storage, or service settings. Engineered with durability in mind, this lift is powder-coated for superior corrosion resistance. The AL-12A package includes two alignment turn plate tables, a 6,000 lb sliding jack, and two approach ramps, making it a complete solution for alignment and maintenance operations. Backed by a 5-year industry-leading warranty, this lift delivers reliability and efficiency for professional shops.
| Key Features | Details |
|---|---|
| Brand | APlusLift – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 12,000 lbs |
| Usage | Parking, Storage, Service |
| Safety Mechanism | Air-operated (pneumatic) safety lock release |
| Finish | Powder-coated for superior corrosion resistance |
| Included Accessories | Two alignment turn plate tables, one 6,000 lb sliding jack, two approach ramps |
| Design | Commercial-grade, time-tested design |
| Power Unit | 220V Single Phase, 3HP |
| Warranty | 5 Years |
| Offered By | Danbury Automotive Lifts |
| Specifications | Measurements |
|---|---|
| Overall Length | 230″ |
| Overall Width | 130″ |
| Overall Height | 87 1/2″ |
| Lifting Height | 72″ |
| Clearance Under Runway | 67″ |
| Width Between Posts | 113″ |

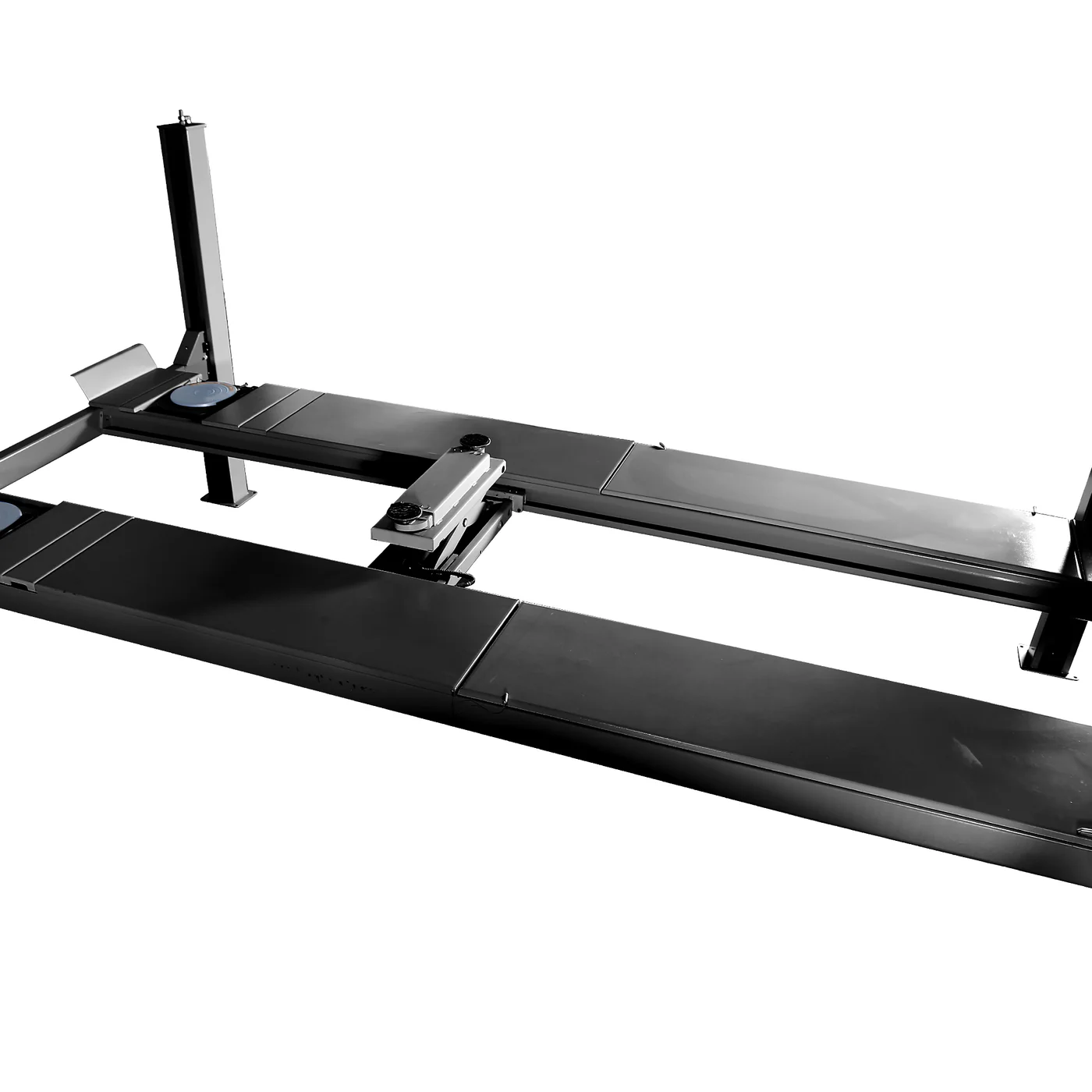

| Runway Size | 196″L x 23″W |
| Width Between Runways | 34 1/2″ |
| Runway Gauge Steel | 6 |
| Locking Positions | 14 multi-position locks |
| Lifting Time | 60 seconds |
| Motor | 220V Single Phase, 3HP, 10A |
| Hydraulic Oil Requirement | 3-5 gallons AW32/AW46 (not included) |
| Concrete Thickness Required | 4″ |
| Shipping Weight | 3,300 lbs |
| Shipping Dimensions | 201″L x 28″W x 25″H |
Performance & Safety

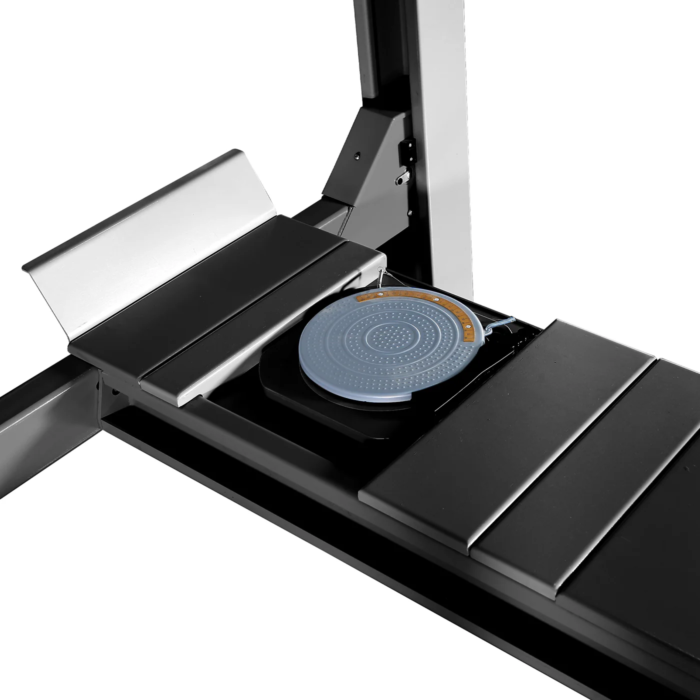

- Alignment-Ready: Includes turn plate tables and a sliding jack, optimized for alignment tasks.
- Sturdy Lock Mechanism: 14 lock positions ensure stability at various lift heights.
- Corrosion-Resistant Finish: Powder-coated to withstand frequent use and harsh conditions.
- Reliable Power: Equipped with a high-efficiency, 220V motor, making operations smoother and safer.
The APlusLift AL-12A is the perfect choice for professionals seeking a heavy-duty lift with alignment capabilities. With Danbury Automotive Lifts as the authorized seller, enjoy a high-quality lift designed to last and support your shop’s needs efficiently.
