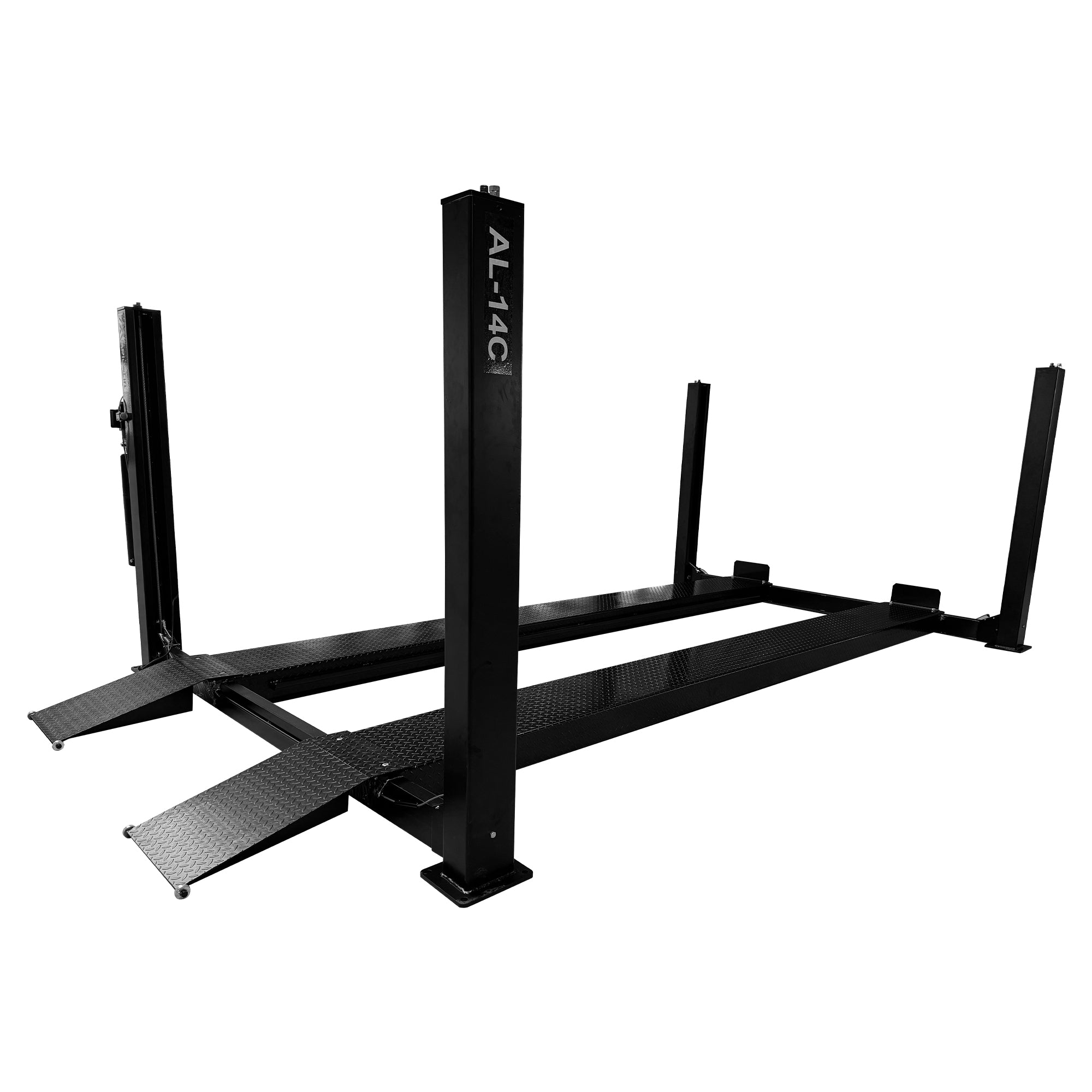

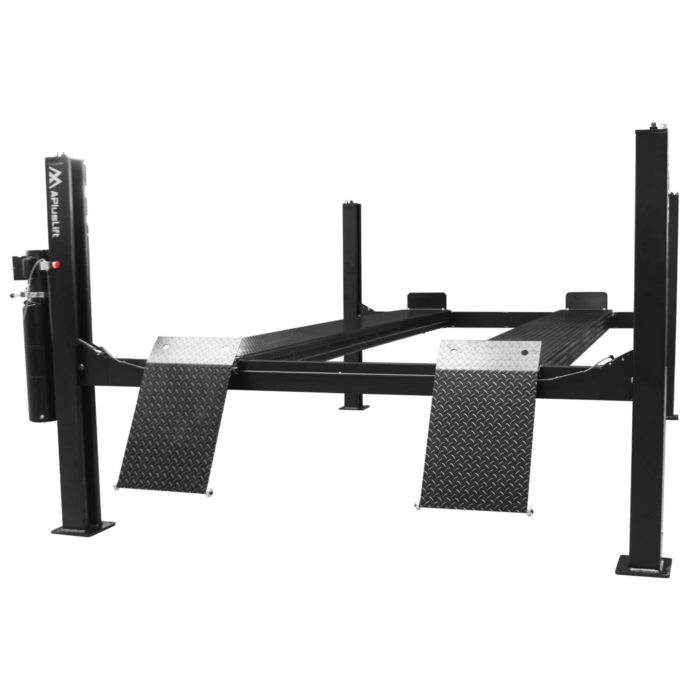

The APlusLift AL-14C (HW-14AL) 4-post heavy-duty lift is built to handle larger vehicles with ease, offering a substantial 14,000 lb lifting capacity. With its commercial-grade design and powder-coated finish, it is crafted for durability and corrosion resistance. This model is ideal for parking, storage, or service applications and includes removable approach ramps for user convenience. The AL-14C is a time-tested lift model, supported by a 5-year warranty for reliable performance.
| Key Features | Details |
|---|---|
| Brand | APlusLift – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 14,000 lbs |
| Usage | Parking, Storage, Service |
| Finish | Powder-coated for superior corrosion resistance |
| Included Accessories | 2 removable approach ramps |
| Drive-Through Width | 106 9/32″ |
| Design | Heavy-duty, commercial-grade construction |

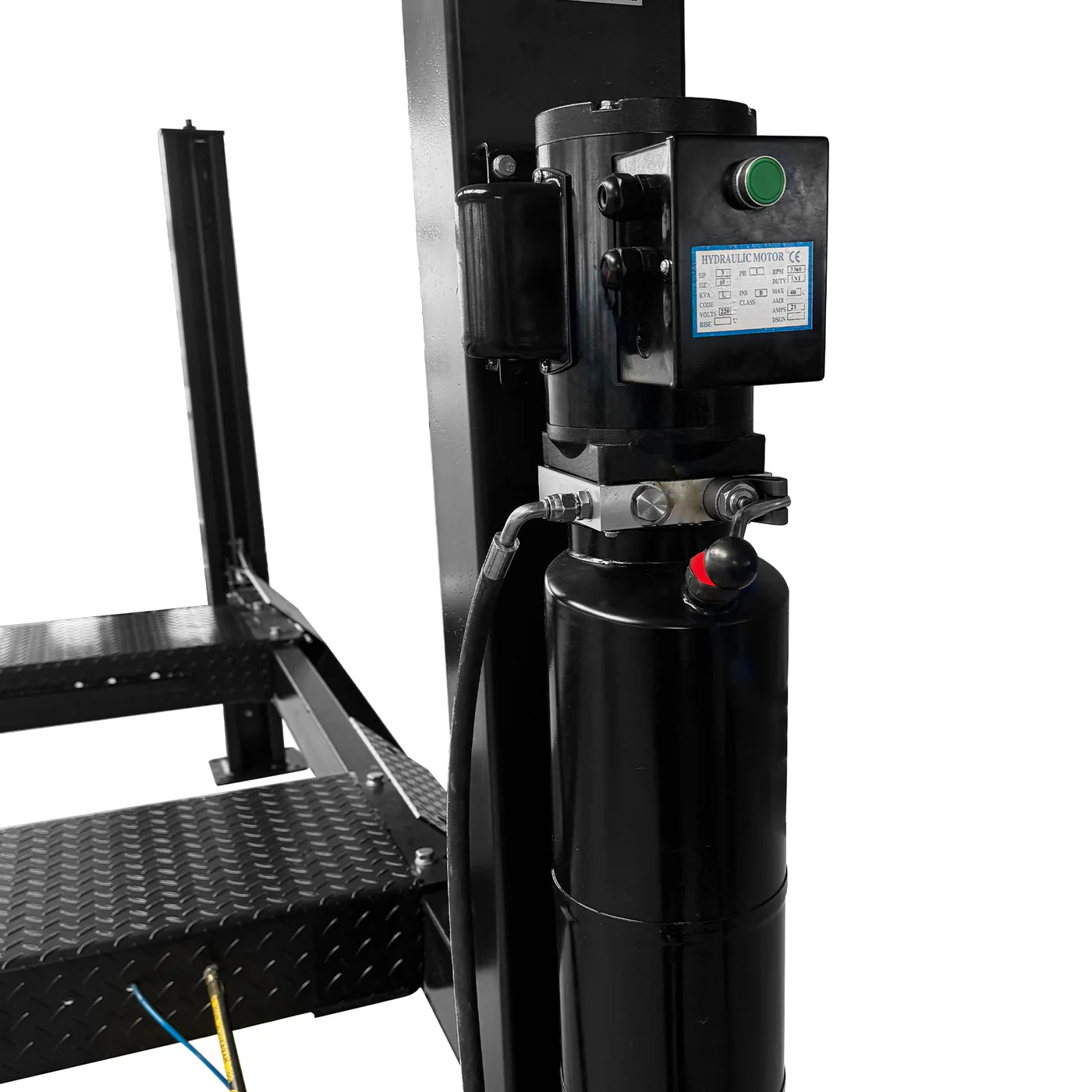

| Power Unit | 220V Single Phase, 3HP |
| Offered By | Danbury Automotive Lifts |
| Warranty | 5 Years |
| Specifications | Measurements |
|---|---|
| Overall Length | 243 1/2″ |
| Overall Width | 134 3/8″ |
| Overall Height | 106 9/32″ |
| Lifting Height | 77 11/32″ |
| Clearance Under Runway | 70 27/32″ |
| Runway Size | 203 15/16″L x 20″W |
| Width Between Runways | 43″ (inside-inside), 83″ (outside-outside) |
| Runway Gauge Steel | 15/64″ |
| Column Cross Section | 7 11/16″L x 6″W |
| Approach Ramp Size | 27 31/32″L x 20 3/32″W |
| Locking Positions | 10 multi-position locking levels |
| Lifting Time | 100 seconds |
| Motor | 220V Single Phase, 3HP, 10A |
| Hydraulic Oil Requirement | 4.3-5 gallons AW32/AW46 (not included) |
| Concrete Thickness Required | 4″ at 3000 psi |
| Shipping Weight | 3,000 lbs |
| Shipping Dimensions | 214″L x 25″W x 31″H |
Performance & Safety
- Heavy-Duty Construction: Built with robust 15/32″ diameter cables and reinforced columns to handle heavy loads.
- Flexible Locking Positions: Ten lock levels offer versatility for various working heights.
- Corrosion-Resistant Finish: Powder-coated for long-lasting performance in demanding shop environments.
- Time-Tested Design: Proven over 30 years, this lift model is an industry staple for heavy-duty needs.
The APlusLift AL-14C is the ideal solution for commercial garages and restoration shops that need a reliable, high-capacity lift. Exclusively from Danbury Automotive Lifts, it combines strength, durability, and flexibility for ultimate utility.
