Brand: Atlas® Automotive Equipment
Offered by: Danbury Automotive Lifts

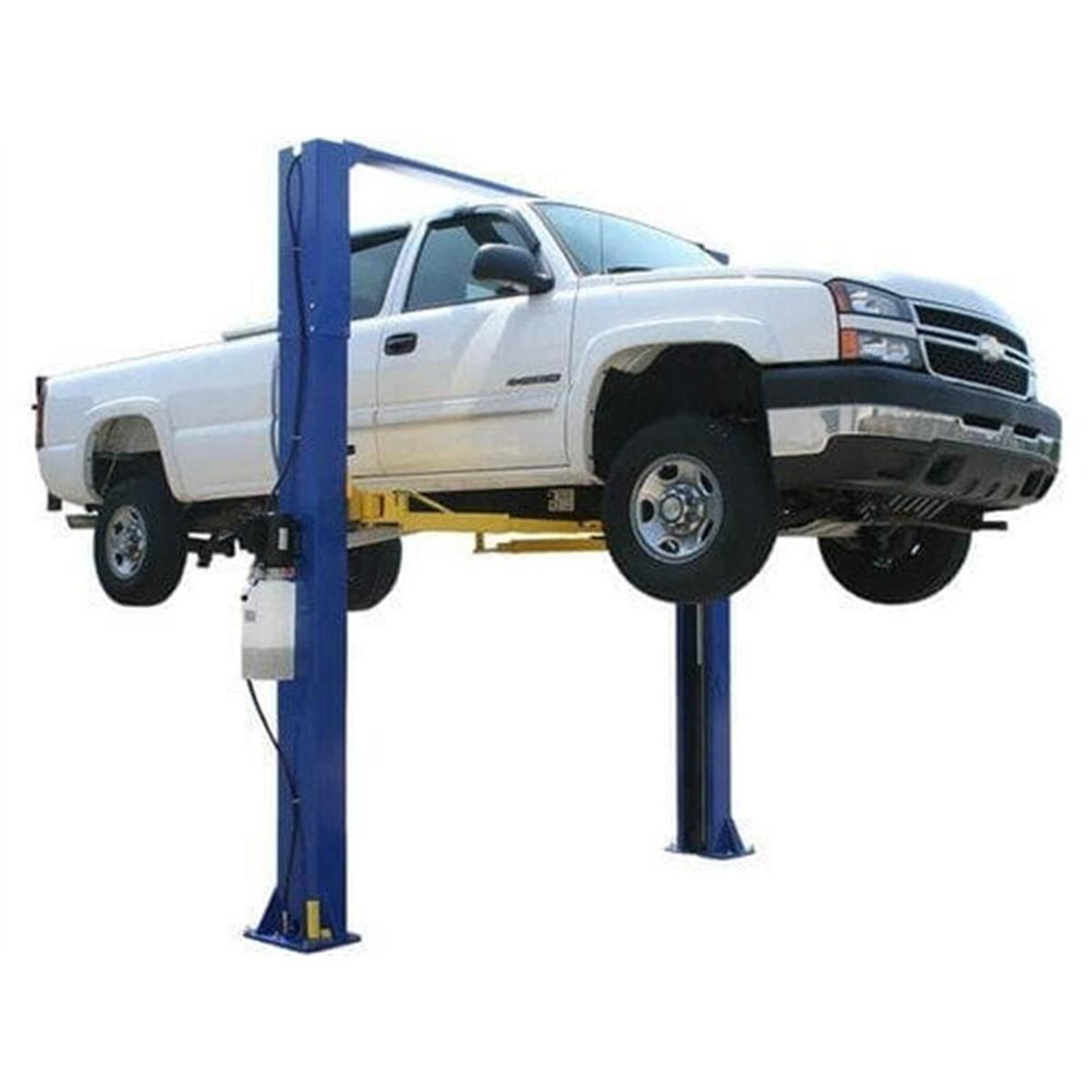

The Atlas® 9KOHX is a versatile 9,000 lb. capacity overhead 2-post lift featuring a flexible arm design that can be used in symmetric or asymmetric positions, offering optimal adaptability for small cars and heavy-duty pickup trucks. With adjustable height settings and a low lift pad position, the Atlas® 9KOHX ensures smooth operations for vehicles with low pick-up points or higher clearances.
Key Features
| Feature | Description |
|---|---|
| Lifting Capacity | 9,000 lbs. |

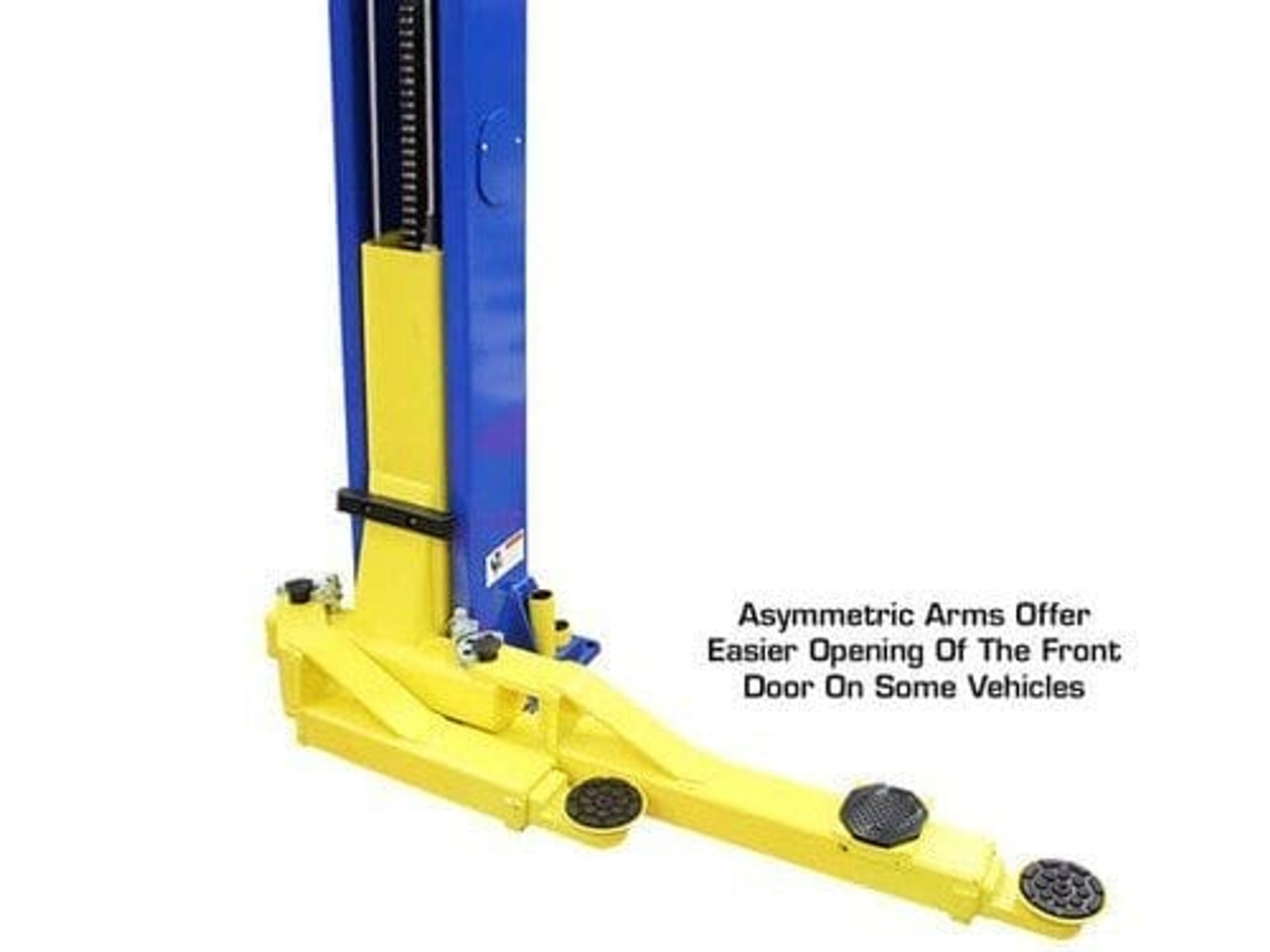

| Symmetric/Asymmetric Design | Flexible arm positions for small cars or larger trucks, ensuring wide usability. |
| Low Pad Height | Easily accommodates vehicles with low ground clearance. |
| Height Adjustable | Two height options: 11′ 6″ or 11′ 10″. |

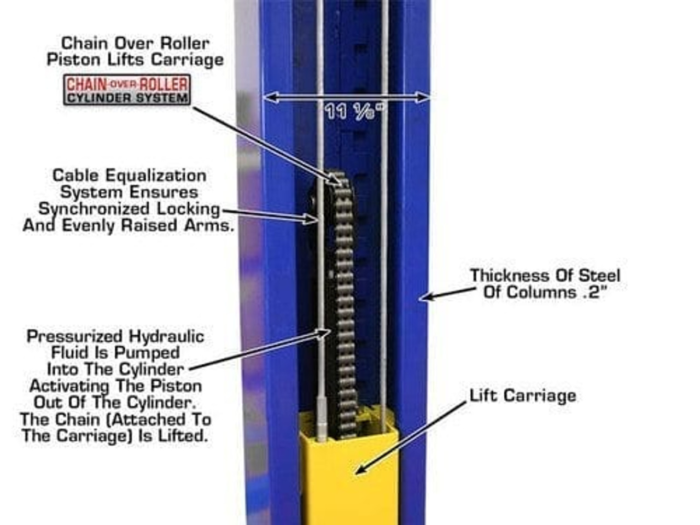

| Secondary Lock System (SLS) | Automatically engages for added safety in case of chain slack or break. |

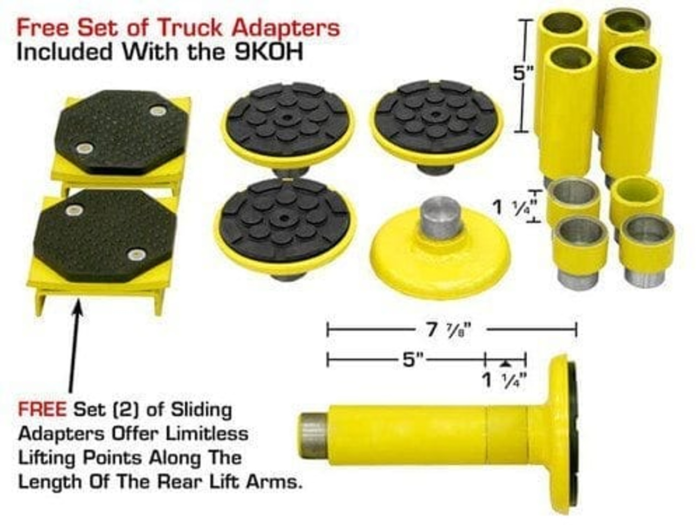

| Complete Accessory Kit | Includes truck adapters, mounting hardware, and sliding lift point adapters. |
| Durable Construction | Made with heavy-duty 5mm column steel and 6mm arm steel for enhanced durability. |

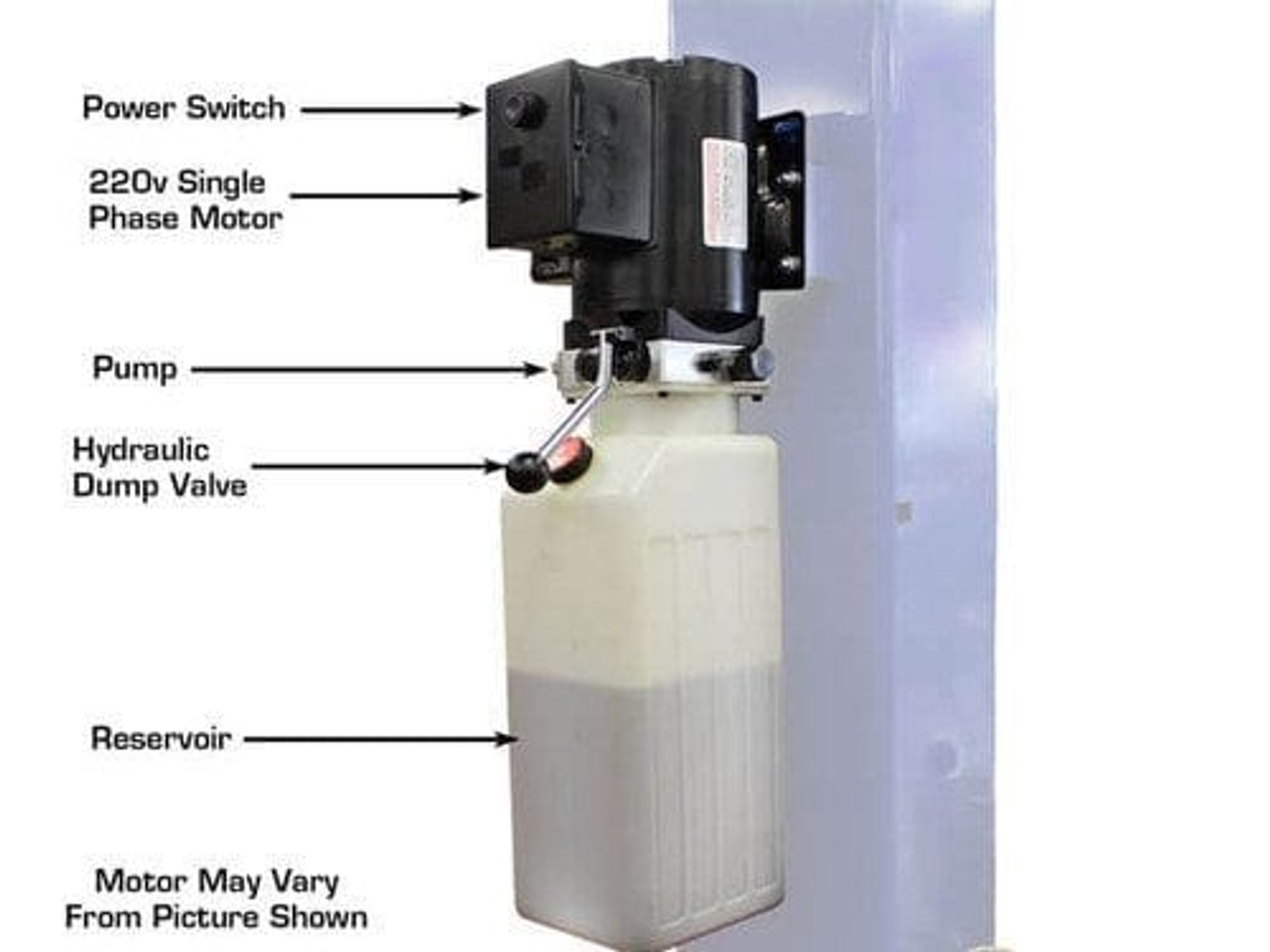

| Power Unit Configuration | 220V single-phase power unit, mountable on either column side (must align with operational requirements). |
| Warranty | 2-year structural warranty and 1-year warranty on hydraulic and major components. |
Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 lbs. |

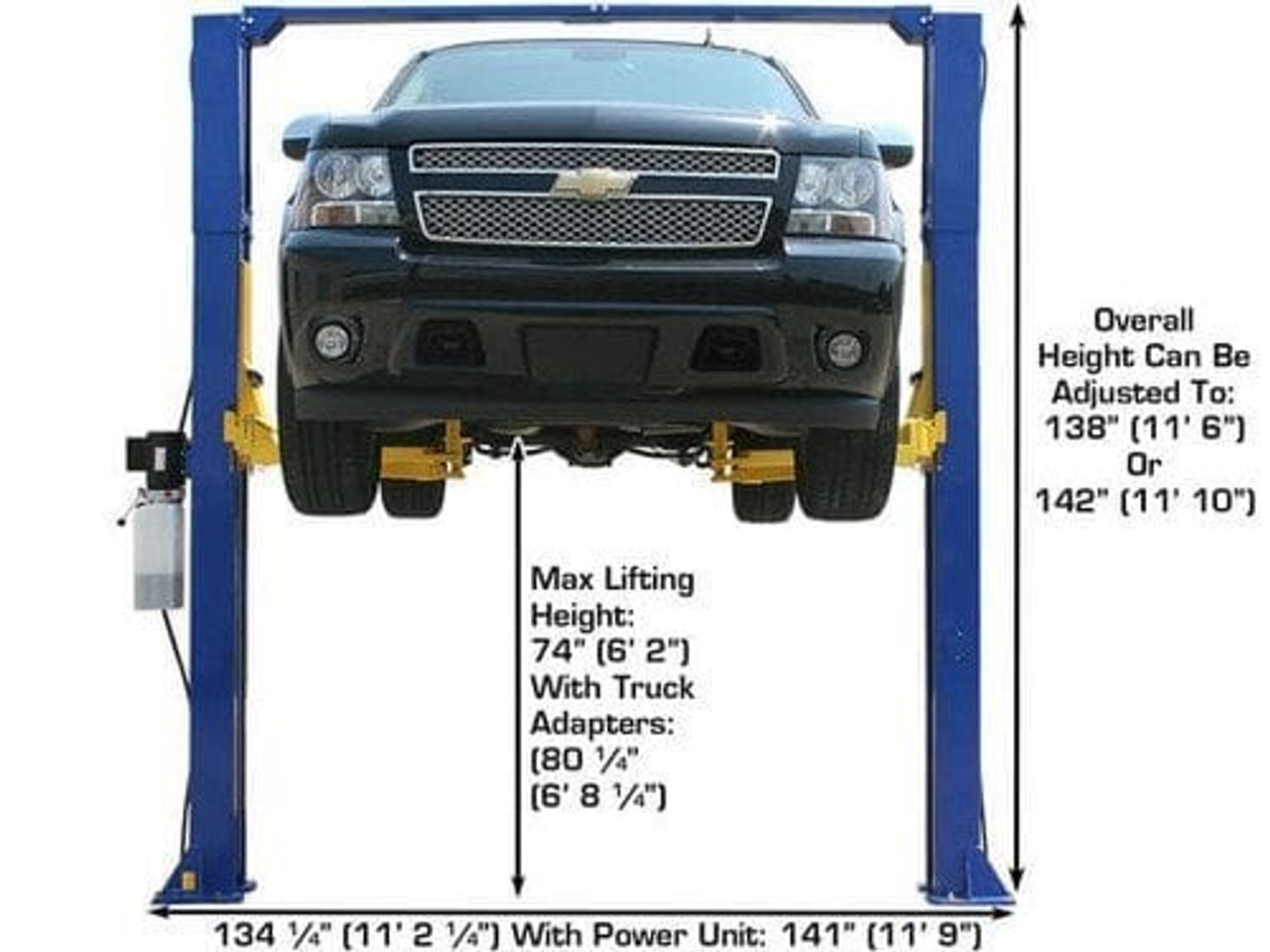

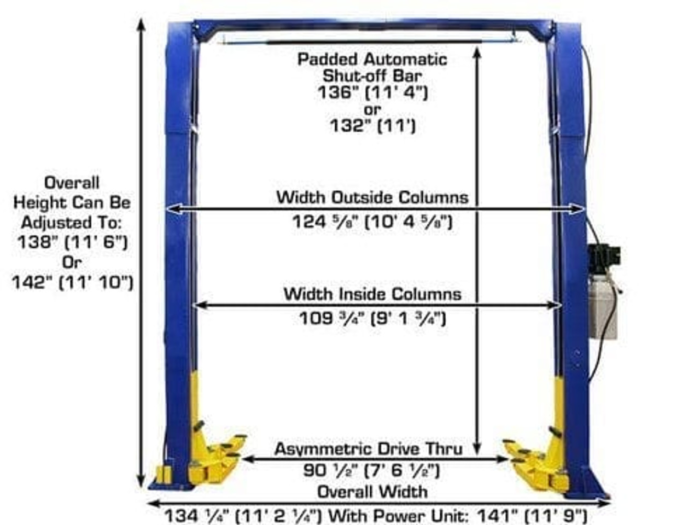

| Overall Height | 138″ (11′ 6″) or 142″ (11′ 10″). |
| Overall Floor Width | 134 1/2″ (11′ 2 1/2″). |
| Outside Columns Width | 124 7/8″ (10′ 4 7/8″). |
| Inside Columns Width | 110″ (9′ 2″). |

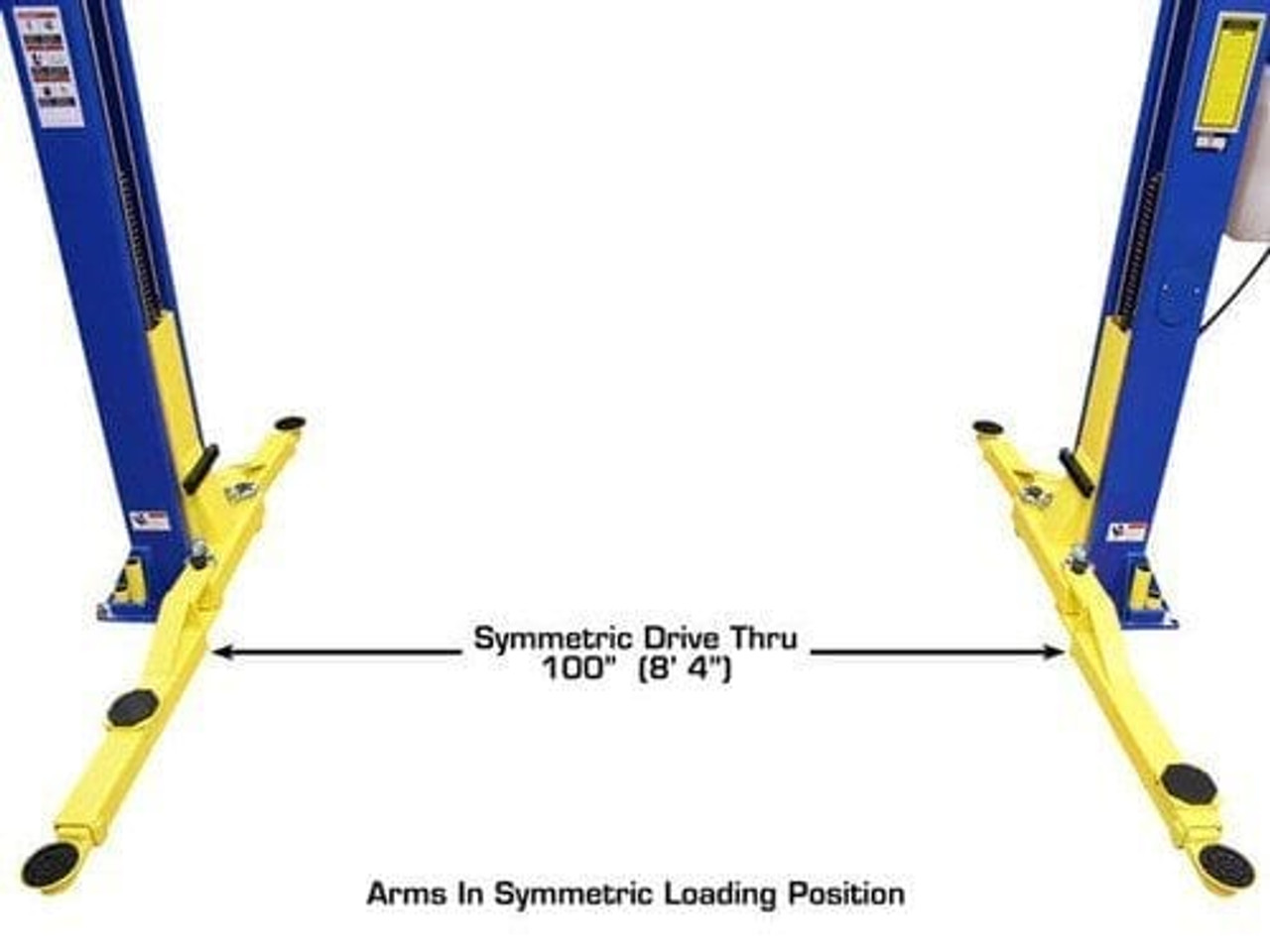

| Drive Thru Clearance | 100″ symmetric / 90 1/2″ asymmetric. |

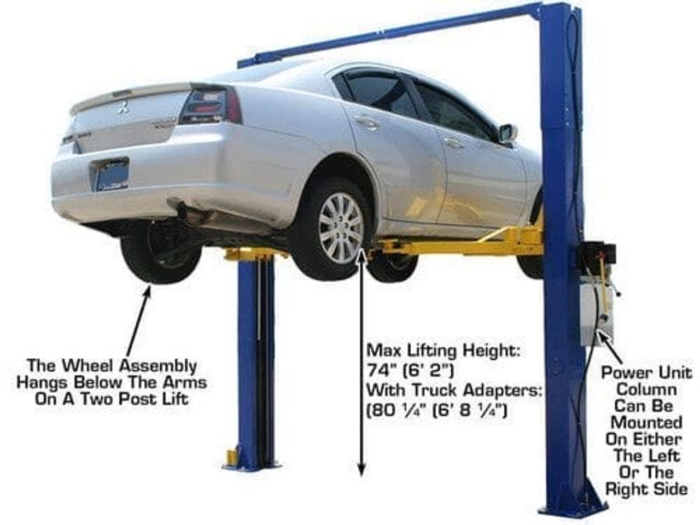

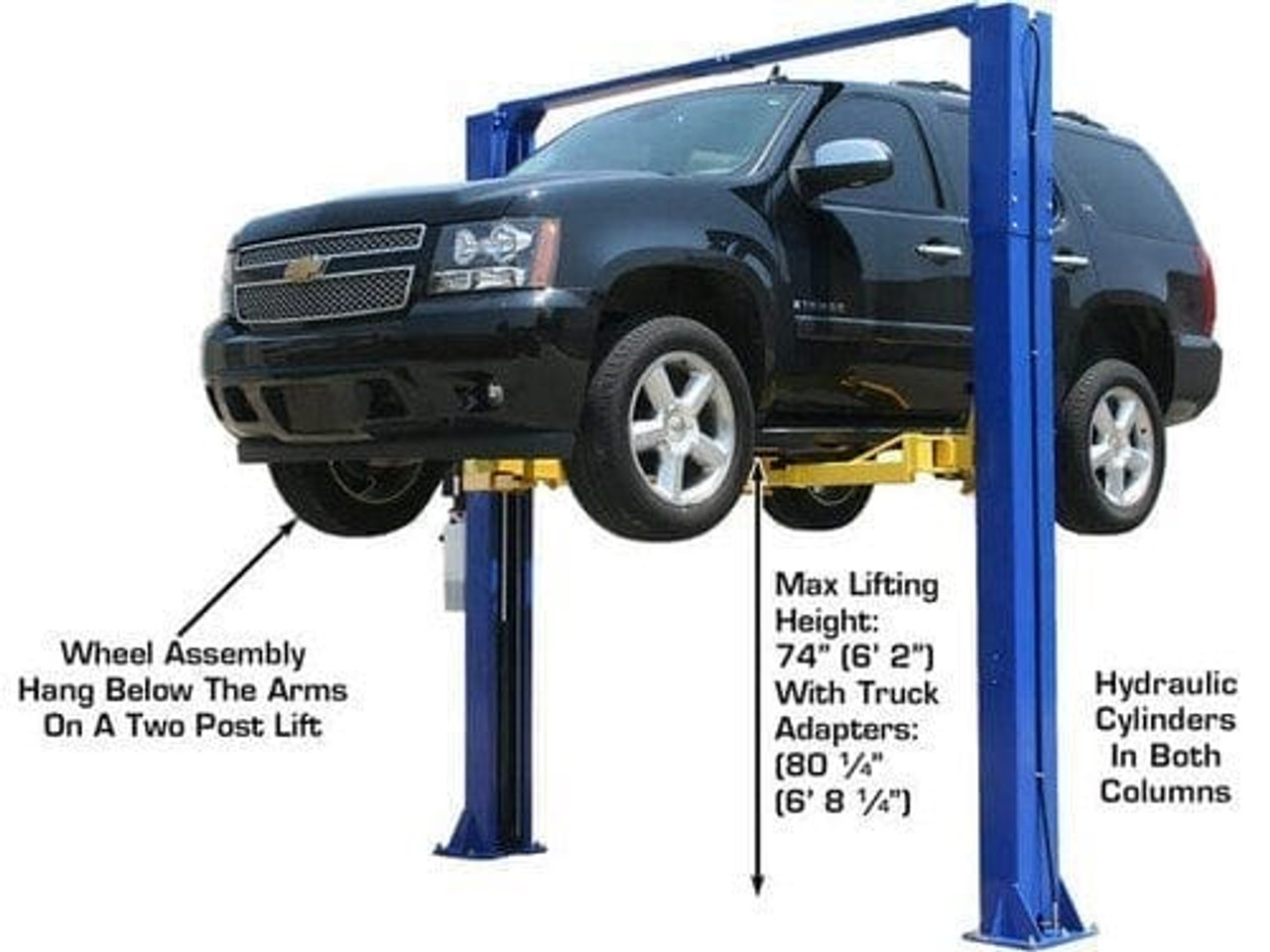

| Max Lift Height (With Adapters) | 81″. |
| Minimum Arm Height | 4″. |

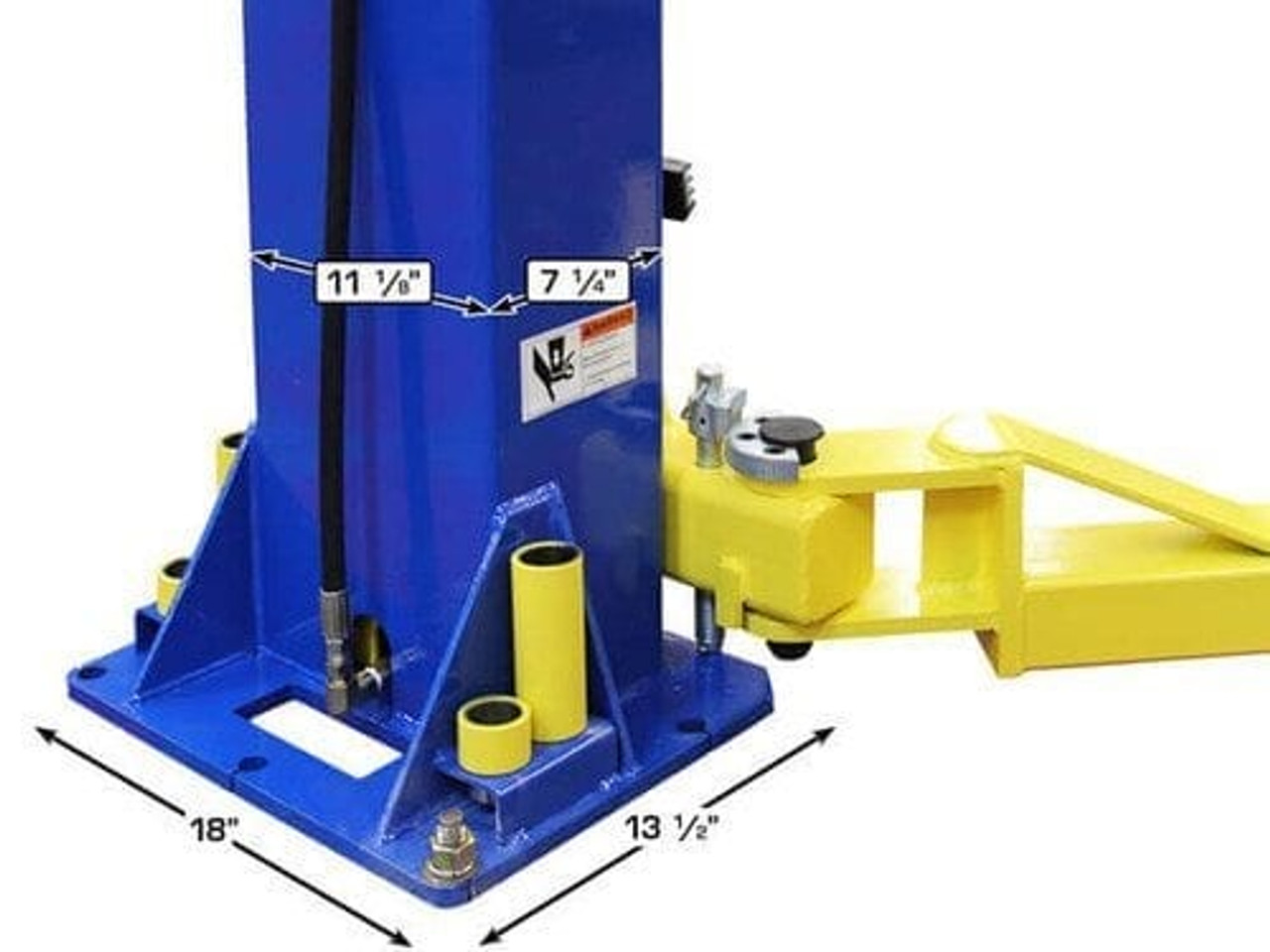

| Column Size | 7 1/4″ x 11″. |
| Base Dimensions | 14 1/4″ x 18″. |
| Steel Thickness (Column/Arm) | 5mm (column), 6mm (arm). |
| Motor/Electrical Requirement | 220V single-phase; requires 30-amp breaker. |
| Oil Requirement | 3-5 gallons of AW32 or AW46 hydraulic oil. |

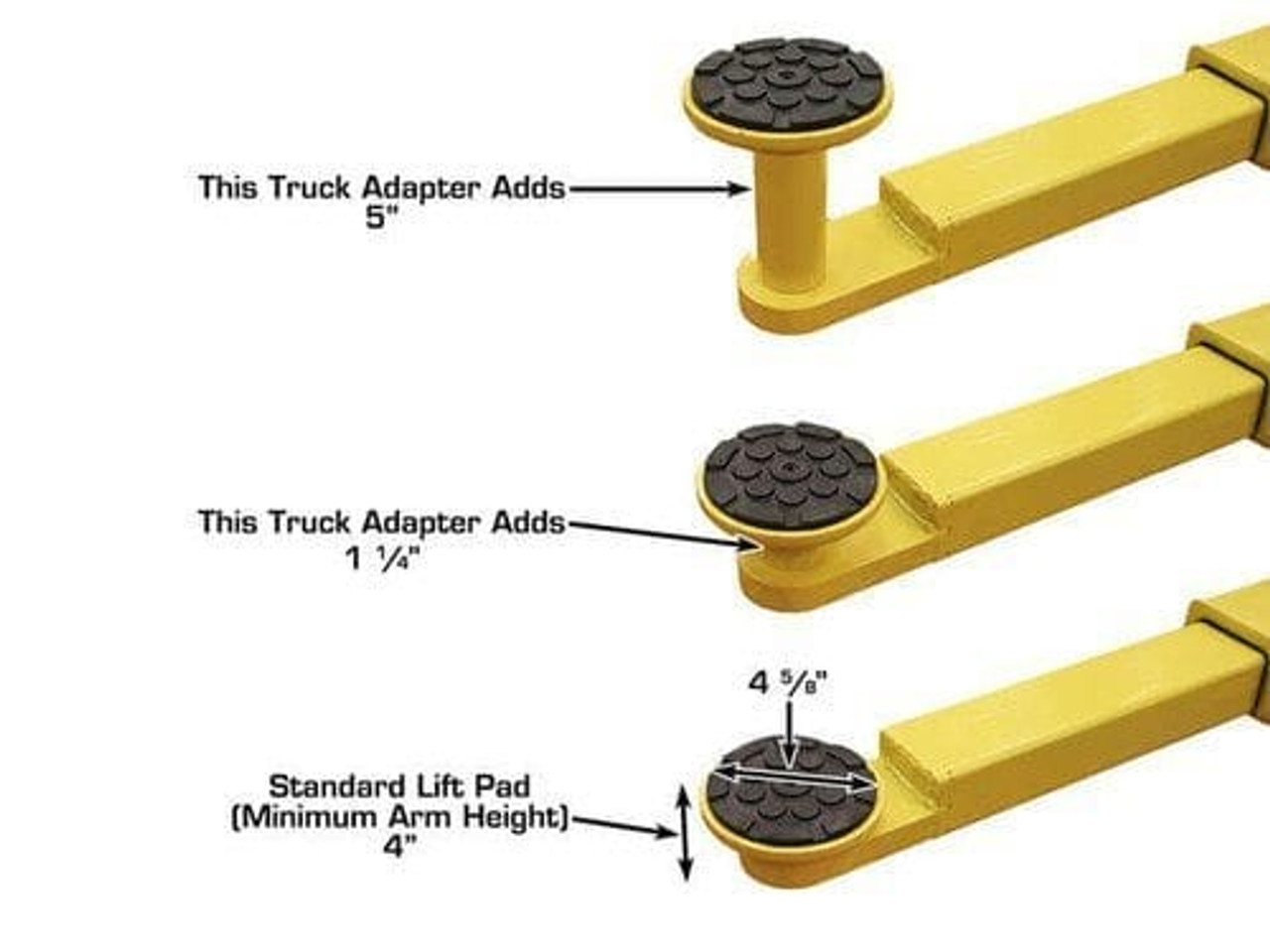

| Adapter Heights | 4 each: 1.5″, 5″. |
| Arm Hole/Adapter Peg Size | 1.5″. |

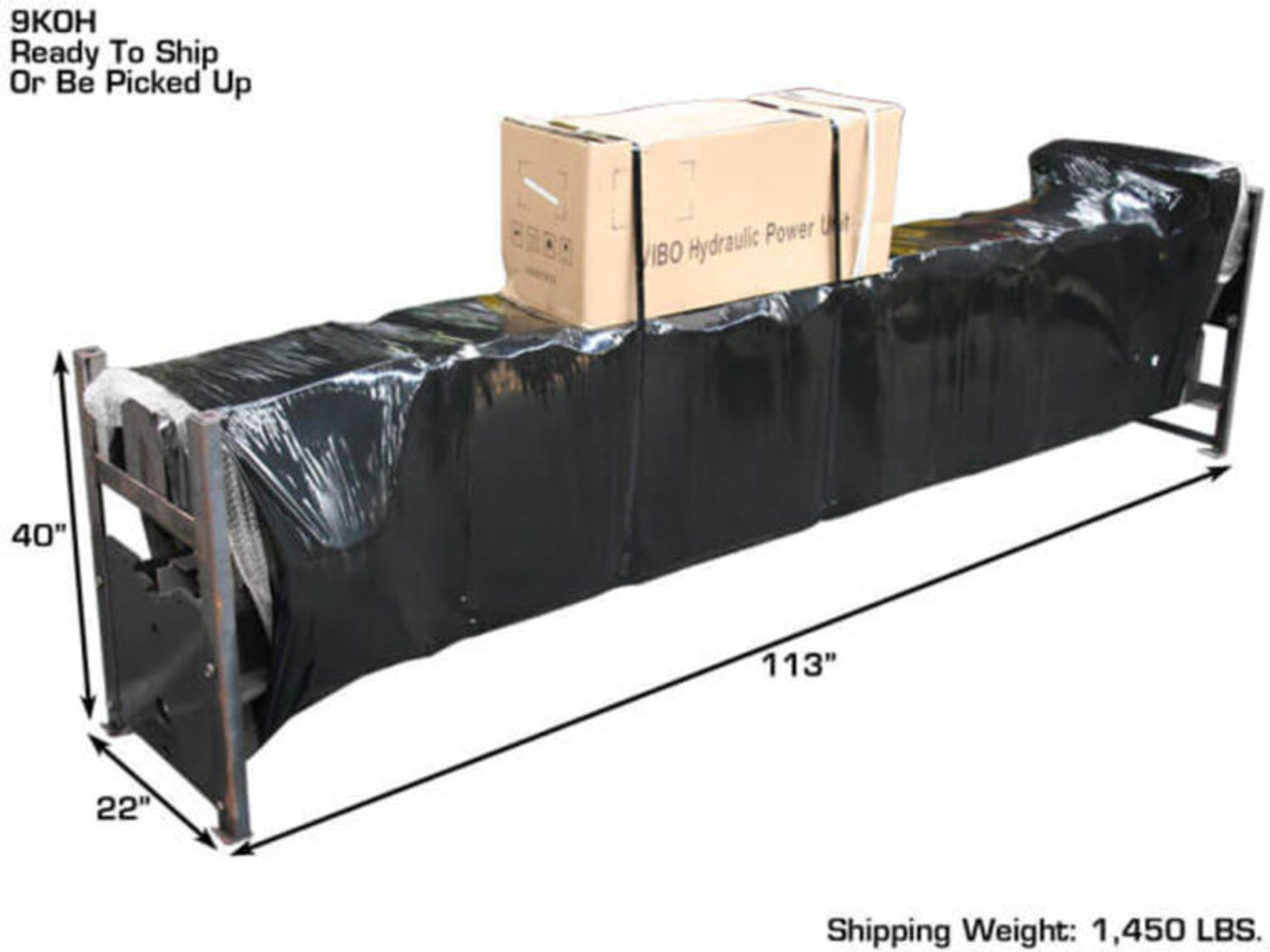

| Shipping Weight | 1,450 lbs. |
Highlights
- Versatile Arm Configuration: Switch between symmetric or asymmetric arm positions for different vehicle types.
- Height Adjustment Options: Ideal for shops with varied ceiling heights.

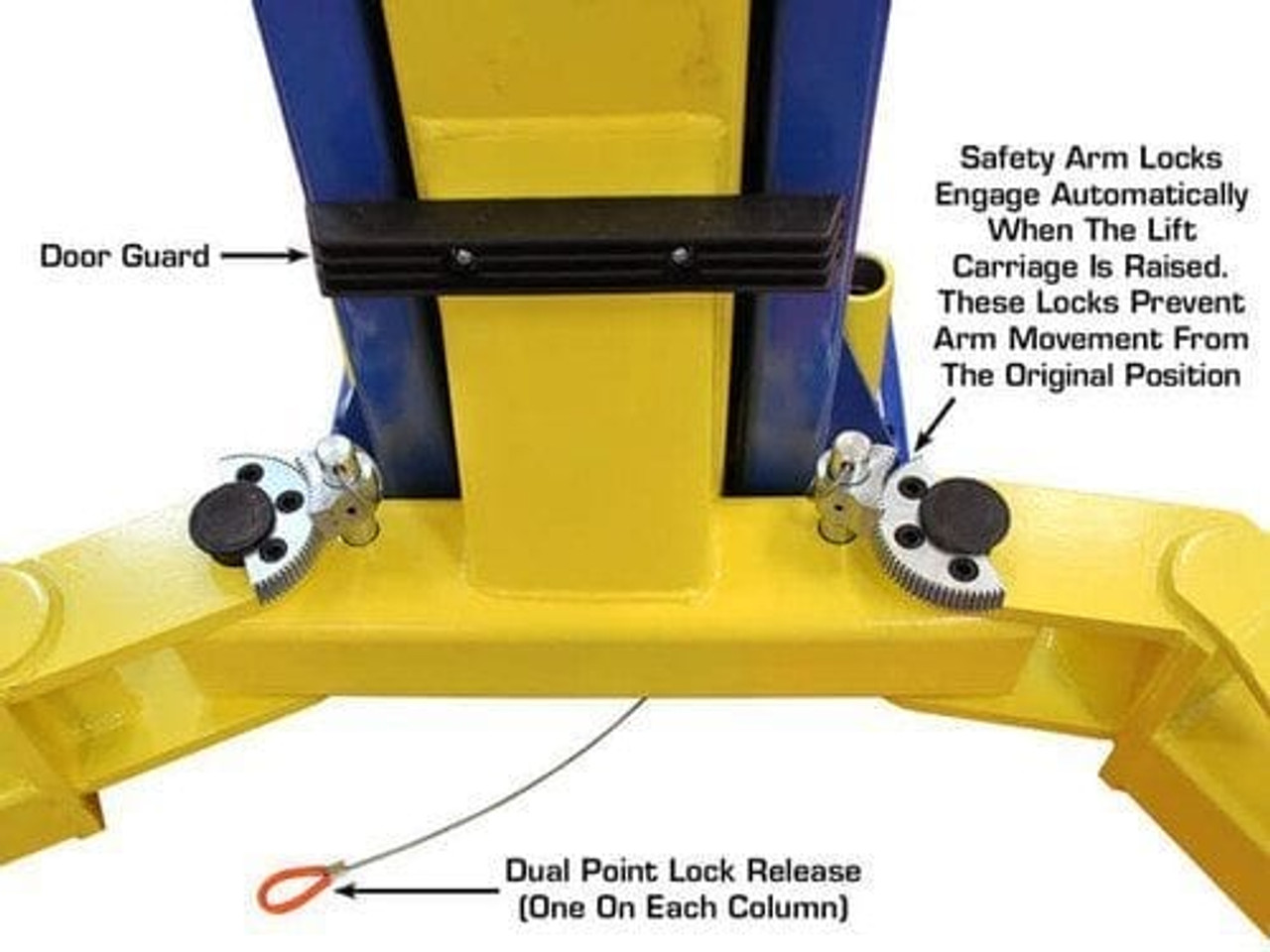

- Enhanced Safety: Built-in Secondary Lock System (SLS) ensures secure operations.

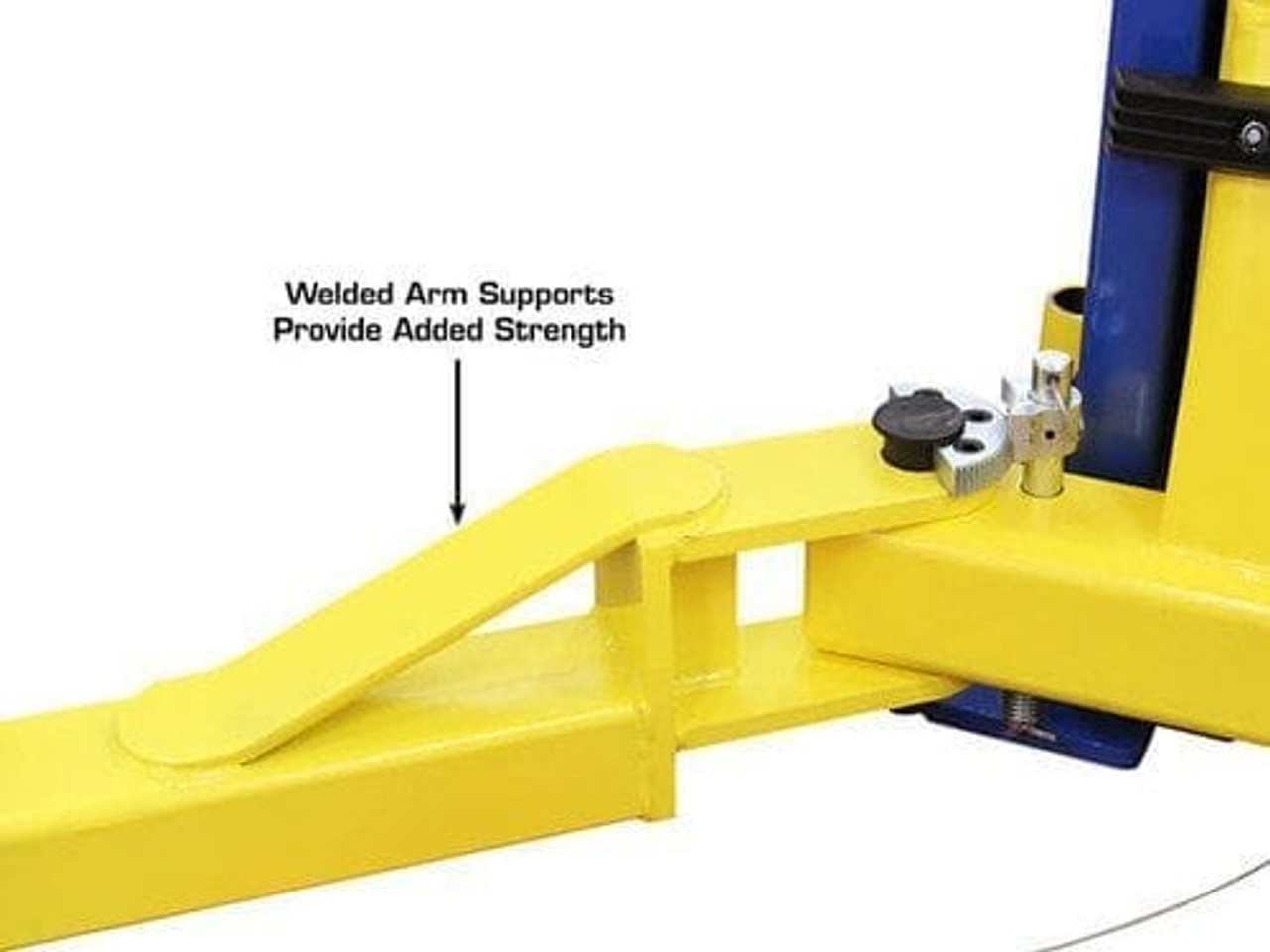

- Robust Build: Made with heavy-duty steel for long-lasting performance.
The Atlas® 9KOHX Overhead 2-Post Lift is the ultimate choice for professional garages or vehicle enthusiasts looking for reliable, high-performance lifting at an unbeatable price.
