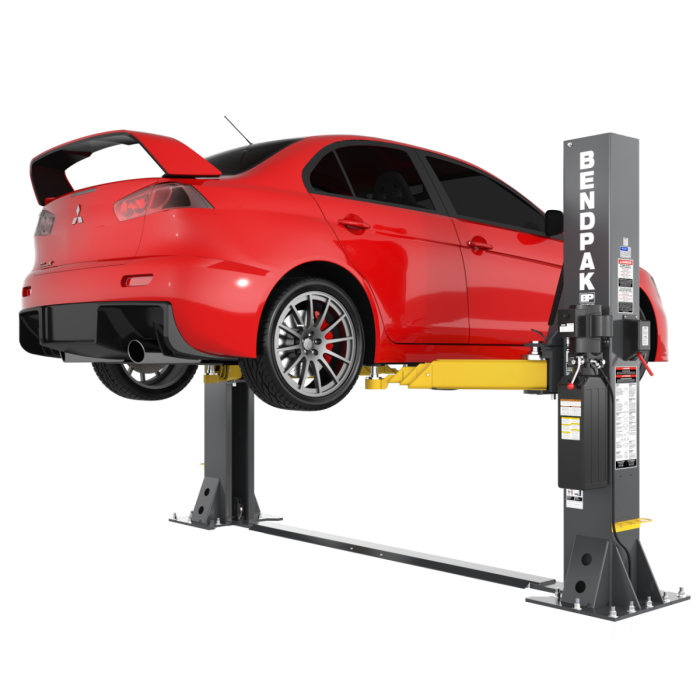

The BendPak 10AP-SRT is part of the all-new AP Series, designed with versatility and safety in mind. This innovative lift provides a 10,000-lb lifting capacity and is ideal for tire and wheel service, offering both symmetric and asymmetric lifting capabilities. Offered by Danbury Automotive Lifts, the 10AP-SRT is engineered for professional-grade performance and includes advanced safety features, durable construction, and unique Bi-Metric™ arm technology for flexible arm positioning.
| Key Features | Details |
|---|---|
| Brand | BendPak (Offered by Danbury Automotive Lifts) |
| Model | 10AP-SRT Short-Rise |
| Lifting Capacity | 10,000 lbs (4,536 kg) |
| Max Capacity / Front Axle | 5,000 lbs (2,268 kg) |
| Max Capacity / Rear Axle | 5,000 lbs (2,268 kg) |
| Power Unit | 220 VAC, 60 Hz, 1 Phase |
| Noise Level | <43 dB |
| Rise Time | ≈ 45 seconds |
| Hydraulic Pressure | 2,170 psi (under Max Load) |
| Certification | ALI Certified |
Lift Features

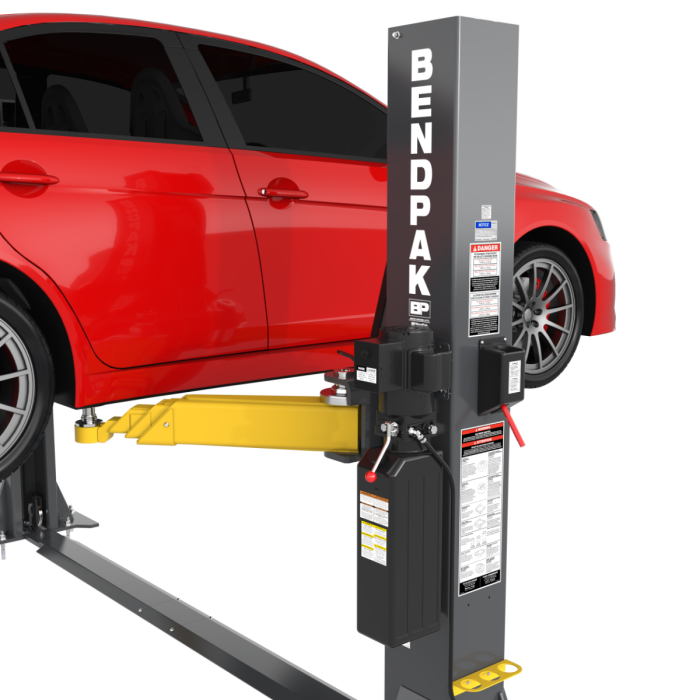

- Power Side Post: Houses power unit, safety lock release handle, and lowering handle
- Offside Post: Opposite side post with safety covers and floor plates

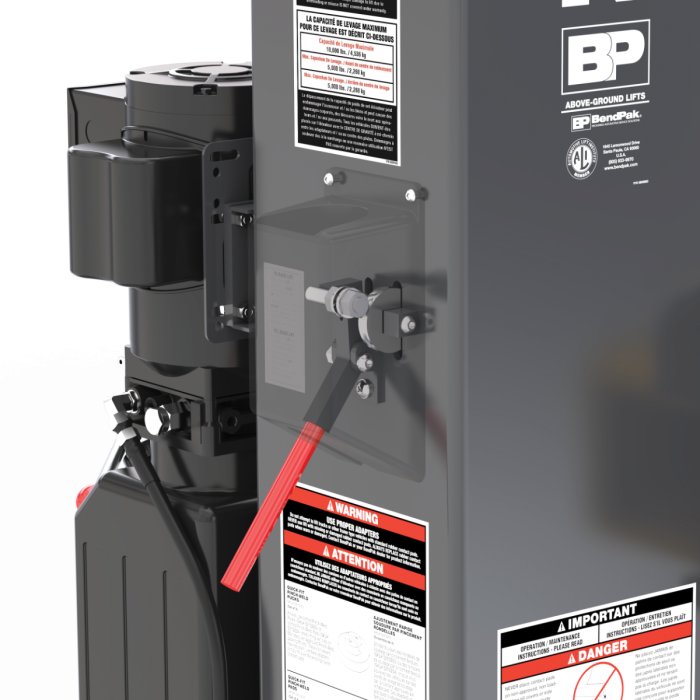

- Safety Lock Release Handle: Engages/disengages safety locks, located on the power post
- Adapters & Arm Design: Includes cradle adapters for trucks and SUVs, with optional height adapters, pinch weld pads, and screw adapters available
- Safety Locks: Multiple height positions hold lift heads securely, even if power is lost

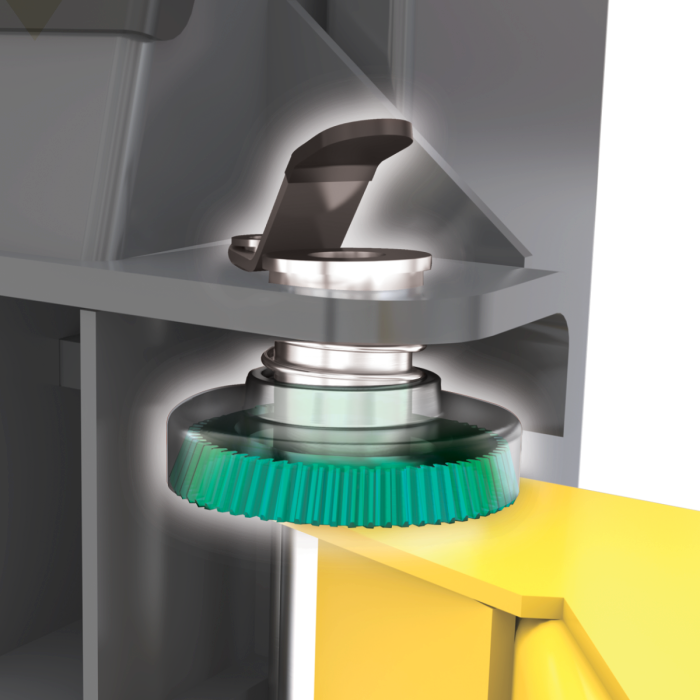

- Automatic Arm Restraints: Withstand over 2,000 lbs of side force
Specifications
| Description | Measurement |
|---|---|
| Width Overall (Narrow) | 136″ (3,453 mm) |
| Width Overall (Wide) | 146″ (3,707 mm) |
| Base Plate Width | 25.25″ (642 mm) |
| Post Height | 93.5″ (2,377 mm) |
| Drive-Thru Width (Narrow) | 91″ (2,311 mm) |
| Drive-Thru Width (Wide) | 101″ (2,565 mm) |
| Inside Posts Width (Narrow) | 108.25″ (2,749 mm) |
| Inside Posts Width (Wide) | 118.25″ (3,003 mm) |
| Outside Posts Width (Narrow) | 128.75″ (3,269 mm) |
| Outside Posts Width (Wide) | 138.75″ (3,523 mm) |
| Min. Pad Height | 4.5″ (116 mm) |
| Max Lifting Height | 46″ (1,173 mm) |
| Max Lifting Height (without pad) | 42.5″ (1,081 mm) |
| Max Screw Pad Adjustment | 2.25″ (55 mm) |
| Floor Plate Height | 1.4″ (36 mm) |
| Floor Plate Width | 9.5″ (240 mm) |
Arms & Pads
| Position | Front Arm Reach | Rear Arm Reach |
|---|---|---|
| Minimum | 22.25″ (562 mm) | 29.5″ (747 mm) |
| Maximum | 47.5″ (1,205 mm) | 57″ (1,446 mm) |
| Safety Lock Positions | 8 |
Construction & Safety
- Durable Finish: Powder-coated for corrosion resistance
- Exclusive Bi-Metric™ Arm Design: Provides versatile arm positioning
- Dual Hydraulic Cylinders: Direct drive for reliable lifting
- Heavy-Duty Cables: ½” aircraft-quality equalizer cables with oversized sheave to reduce fatigue
- Safety Locks: Engaged every 3″ along the columns
Shipping Information
| Shipping Dimensions | 150″ x 24″ x 30″ (3,810 mm x 610 mm x 762 mm) | | Weight | 1,840 lbs |
