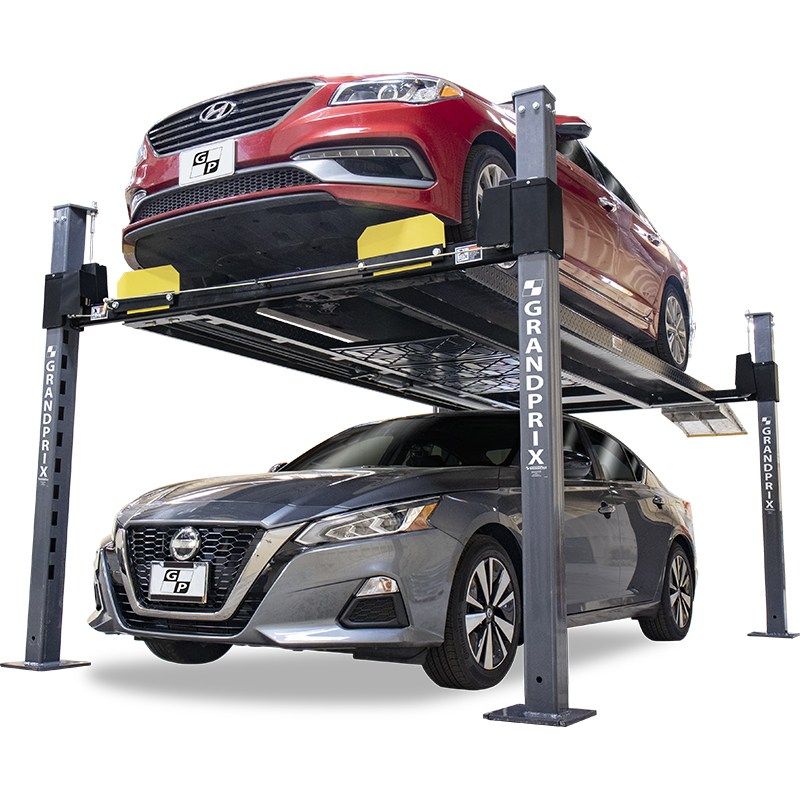

The GrandPrix GP-9F is an ideal four-post lift solution for home garages, designed with robust features and a compact footprint. Built to accommodate light-duty trucks, SUVs, and low-profile vehicles, this lift includes aluminum ramps, a caster kit, a jack platform, and drip trays for added convenience. Offered by Danbury Automotive Lifts, the GP-9F ensures safe, reliable lifting with BendPak’s trusted engineering.
| Key Features | Details |
|---|---|
| Brand | GrandPrix by BendPak (Offered by Danbury Automotive Lifts) |
| Model | GP-9F Four-Post Lift |
| Lifting Capacity | 9,000 lbs (4,082 kg) |
| Max Capacity / Front Axle | 4,500 lbs (2,041 kg) |
| Max Capacity / Rear Axle | 4,500 lbs (2,041 kg) |
| Power Unit | Standard: 110VAC, 50-60 Hz, 1 Phase, 20A; Optional: 208-230VAC, 50-60 Hz, 1 Phase, 25A |
| Noise Level | 45 dB |
| Locking Positions | 13 positions, spaced every 4” (102 mm) |
| Freestanding Design | Can be fastened to the floor or used as a freestanding unit |
Lift Features
- Complete Package: Includes caster kit, drip trays, jack platform, aluminum approach ramps, and steel tire stops
- Stable Construction: Boxed-steel columns made from welded structural steel tubing
- Durable Finish: Powder-coated to prevent corrosion and extend product life
- Manual Dead Bolt Locks: Reliable, machined directly into the boxed-steel columns
- Secondary Slack-Cable Lock System: Engages automatically for extra safety in case of cable failure
- Versatile Usage: Utility rail on the runway for additional accessories like jack trays and drip trays
- Easy to Move: Heavy-duty poly caster wheels that protect floor surfaces
- Hydraulic Cylinder: Positioned under the runway to ensure even lifting
Specifications
| Description | Measurement |
|---|---|
| Min. Runway Height | 5″ (127 mm) |
| Max. Rise | 70″ (1,778 mm) |
| Max. Lifting Height | 75″ (1,905 mm) |
| Overall Width | 114.5″ (2,908 mm) |
| Outside Length | 176.5″ (4,483 mm) |
| Overall Length | 203″ (5,156 mm) |
| Height of Columns | 89″ (2,261 mm) |
| Drive-Thru Clearance | 88″ (2,235 mm) |
| Width Between Columns | 98″ (2,489 mm) |
| Runway Width | 18.75″ (476 mm) |
| Runway Length | 161.25″ (4,096 mm) |
| Width Between Runways | 35″ (889 mm) |
| Runway Centerline | 56.5″ (1,435 mm) |
| Outside Edge of Runways | 75.25″ (1,911 mm) |
Minimum Wheelbase for Capacity
| Capacity | Wheelbase Requirement |
|---|---|
| Rated Capacity (100%) | 115″ (2,921 mm) |
| 75% Capacity | 100″ (2,540 mm) |
| 50% Capacity | 85″ (2,159 mm) |
| 25% Capacity | 70″ (1,778 mm) |
Locking & Safety
- Primary Locking Positions: 13 positions, spaced every 4” (102 mm)
- Manual Dead Bolt Locks: Securely engage with a ¾” thick steel safety lock mechanism
- Secondary Slack-Cable Lock System: Provides additional safety if the primary lock fails
Shipping Information
| Shipping Weight | 2,224 lbs (1,008.8 kg) | | Shipping Dimensions | 166″ x 22″ x 30″ (4,203 mm x 558 mm x 762 mm) |
