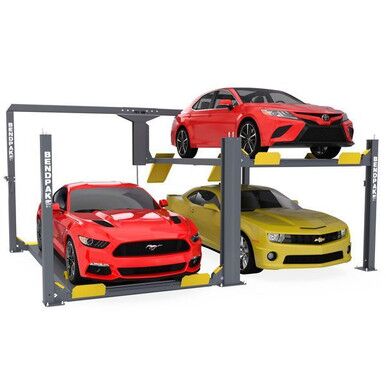

The Bendpak PL-12000DPS offers a revolutionary solution for parking space constraints, doubling parking capacity without the need for additional square footage. Designed for commercial garages and residential applications, this dual-platform lift is the ultimate space-saving solution for long-term and short-term vehicle storage.
Key Features
- Dual Hydraulic Platforms: Independent operation of each platform eliminates the need to shuffle vehicles.
- Heavy-Duty Construction: Rugged welded steel ensures years of reliable service.
- Hydraulic Power System: Reliable, low-maintenance operation with equalized platform lifting.
- Space-Saving Design: Perfect for cars, light trucks, motorcycles, and ATVs, fitting in standard parking spaces.
- Enhanced Safety: Multiple locks, wheel stops, and durable galvanized cables ensure secure vehicle storage.
- User-Friendly Operation: Simple controls make the lift easy to operate, even for first-time users.
Advantages
- Increased Parking Density: Maximizes parking spaces in the same footprint.
- Performance Backed Warranty: A full five-year warranty provides peace of mind.
- Reliable and Safe: Features automatic safety locks and industrial-grade hydraulic cylinders.
- Durable Powder-Coat Finish: Protects the lift from wear and corrosion, ensuring long-lasting aesthetics.
Specifications
| Specification | Details |
|---|---|
| Brand | Bendpak® |
| Offered By | Danbury Automotive Lifts |
| Model | PL-12000DPS |
| Total Load Capacity | 12,000 lbs. (6,000 lbs. per side) |
| Number of Platforms | 2 |
| Total Width | 221.5″ (5,624 mm) |
| Outside Length | 174″ (4,418 mm) |
| Total Length | 218.5″ (5,550 mm) |
| Total Height | 118.5″ (3,009 mm) |
| Runway Height | 4.75″ (121 mm) |
| Maximum Rise | 70.2″ (1,784 mm) |
| Width Between Posts | 211″ (5,362 mm) |
| Width Between Platforms | 29″ (739 mm) |
| Runway Length | 159″ (4,039 mm) |
| Runway Width | 19″ (482 mm) |
| Drive Thru Width | 85″ (2,161 mm) |
| Drive Thru Height | 68.5″ (1,742 mm) |
| Safety Lock Positions | 6 |
| Lifting Time | ~45 seconds |
| Power Unit / Motor | 220 VAC, 50/60 Hz, 1 Ph |
| Warranty | 5 years |
Why Choose Bendpak PL-12000DPS?
The PL-12000DPS is engineered to meet the demands of modern parking challenges, offering reliability, durability, and innovative solutions to optimize your parking spaces. Whether for residential or commercial use, it’s the ultimate choice for efficient, safe, and cost-effective parking.
