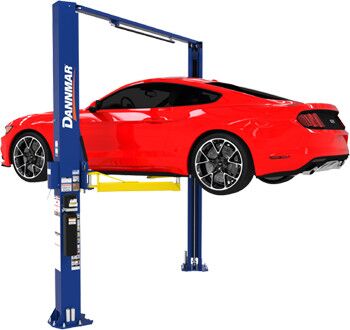

The Dannmar D2-10A, offered by Danbury Automotive Lifts, is designed for the toughest jobs in garages and workshops, delivering superior performance and durability. With a powerful 10,000 lb. lifting capacity, it can handle a range of vehicles, from full-size trucks and vans to standard passenger cars and performance vehicles. Equipped with a self-contained electric-hydraulic power unit and twin direct-drive hydraulic cylinders, the D2-10A promises reliable and long-lasting service. The welded steel columns and maintenance-free UHMW bearings ensure smooth, silent operation.
Asymmetric columns and extended rear arms provide convenient vehicle access, minimizing the chance of door interference. With telescoping arms featuring automatic arm restraints, urethane contact pads, and an 8-piece stackable adapter set, the D2-10A is versatile for varied service needs. Finished with a durable powder coat and zinc-plated components, this lift is built to maintain its quality over time.
| Key Features | Details |
|---|---|
| Brand | Dannmar (Offered by Danbury Automotive Lifts) |
| Lifting Capacity | 10,000 lbs (4,536 kg) |
| Arm Design | Tru-Metric™ telescoping arms for versatile positioning |
| Column Style | 30° rotated single-piece asymmetric columns |
| Safety Features | Single-point safety release, automatic arm restraints, overhead safety shutoff |
| Finish | Durable powder-coated frame with zinc-plated components |
| Adapter Set | 4-piece 63 mm stackable adapter set included |
| Noise Level | 45 dB |
Specifications
| Description | Measurement |
|---|---|
| Lowered Height + Pad | 5″ (127 mm) |
| Max Lift Height (Top Lock) | 78.5″ (1,994 mm) |
| Max Rise | 69″ (1,753 mm) |
| Overall Height | 145″ (3,683 mm) |
| Overall Width | 143.5″ (3,645 mm) |
| Width Outside Columns | 137.25″ (3,486 mm) |
| Width Inside Columns | 120.75″ (3,067 mm) |
| Drive-Thru Clearance | 100″ (2,540 mm) |
| Floor-to-Top Switch | 141″ (3,581 mm) |
| Front Arm Reach | 29.25″ (743 mm) – 43.75” (1,111 mm) |
| Rear Arm Reach | 40.25″ (1,022 mm) – 58” (1,473 mm) |
| Max Load per Arm | 2,500 lbs (1,134 kg) |
| Motor | 220 VAC, 60 Hz, 1 Phase |
Performance & Safety
- Time to Full Rise: 45 seconds
- Automatic Arm Restraints: Keeps vehicle stable during service
- Heavy-Duty 1/2” Aircraft Cables: With oversized sheaves to reduce cable fatigue
- Quiet Operation: Soft-cushioning guides for silent movement
