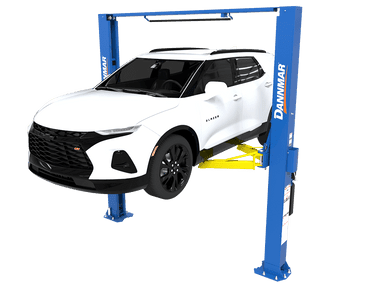

The Dannmar D2-10C symmetric two-post lift, offered by Danbury Automotive Lifts, is designed for efficiency and adaptability in any garage or workshop. Its adjustable top beam allows for both wide and narrow installation setups, ensuring that you can choose the best configuration to fit your workspace. Built with minimal maintenance in mind, this lift offers reliable, smooth operation without the need for lifting chains or screw mechanisms.
| Key Features | Details |
|---|---|
| Brand | Dannmar (Offered by Danbury Automotive Lifts) |
| Lifting Capacity | 10,000 lbs (4,536 kg) |
| Top Beam | Adjustable for wide or narrow installation |
| Power System | Electric/hydraulic HVLP direct-drive |
| Base Plate | Large 17″ x 19″ A36 steel |
| Safety Features | Single-point safety release, overhead shutoff bar, automatic arm restraints |
| Arm Design | Triple-telescoping arm design for versatile positioning |
| Adapter Set | Includes a 4-piece, 63 mm stackable adapter set |
| Offered By | Danbury Automotive Lifts |
| Approvals | ETL Approved |
| Noise Level | 45 dB |
Specifications
| Description | Measurement |
|---|---|
| Lowered Height + Pad | 5″ (127 mm) |
| Max Lift Height (Top Lock) | 78.5″ (1,994 mm) |
| Max Rise | 69″ (1,753 mm) |
| Overall Height | 145″ (3,683 mm) |
| Overall Width | 145.25″ (3,690 mm) |
| Width Outside Columns | 137.25″ (3,486 mm) |
| Width Inside Columns | 118.25″ (3,004 mm) |
| Drive-Thru Clearance | 106″ (2,692 mm) |
| Floor-to-Top Switch | 141″ (3,581 mm) |
| Arm Reach | 32.25″ (819 mm) – 52.5” (1,334 mm) |
| Max Load per Arm | 2,500 lbs (1,134 kg) |
| Time to Full Rise | 45 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
Performance & Safety
- Telescoping Arm Design: Provides versatile positioning
- Direct-Drive Cylinders: Minimizes leaks and extends cylinder life
- Oversized Cable Sheaves: Reduces cable fatigue
- Automatic Arm Restraints: Keeps vehicles stable during service
- Self-Lubricating Bearings: Ensures maintenance-free operation
