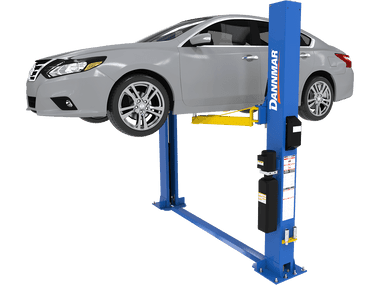

The Dannmar D2-8F, offered by Danbury Automotive Lifts, provides robust lifting capabilities for various vehicle types. With a two-stage telescoping screw pad assembly and triple-telescoping front arms, this lift reaches factory-recommended lift points on most vehicles. It’s equipped with low-profile, dropped-end frame contact pads for easy access to vehicles with low-clearance frames, making it versatile for daily drivers, performance vehicles, and more.
| Key Features | Details |
|---|---|
| Brand | Dannmar – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 8,000 lbs (3,629 kg) |
| Arm Design | Triple-telescoping front arms, two-stage rear arms |
| Power System | Electric/hydraulic direct-drive |
| Base Plate | Large 17″ x 19″ A36 steel |
| Safety Features | Single-point safety release, automatic arm restraints, column safety locks every 3” |
| Pad Assembly | Double-telescoping screw pads with stackable 63 mm adapters |
| Offered By | Danbury Automotive Lifts |
| Noise Level | 45 dB |
Specifications
| Description | Measurement |
|---|---|
| Lowered Height + Pad | 4.25” (108 mm) |
| Max Lift Height (Top Lock) | 80.5” (2,045 mm) |
| Max Rise | 72” (1,829 mm) |
| Overall Height | 113” (2,870 mm) |
| Overall Width | 132” (3,353 mm) or 145” (3,683 mm) |
| Width Outside Columns | 126.75” (3,219 mm) or 139.75” (3,550 mm) |
| Width Inside Columns | 105” (2,667 mm) or 118” (2,997 mm) |
| Drive-Thru Clearance | 93” (2,362 mm) or 106” (2,692 mm) |
| Floorplate Width | 8.5” (216 mm) |
| Floorplate Height | 1.25″ (33 mm) |
| Arm Reach | 32.25″ (819 mm) – 52.25” (1,327 mm) |
| Max Load per Arm | 2,000 lbs (907 kg) |
| Time to Full Rise | 45 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
Performance & Safety
- Two-Stage Telescoping Pads: Provides enhanced versatility to reach factory lift points on various vehicles.
- Direct-Drive Hydraulic Cylinders: Delivers smooth lifting and minimizes maintenance.
- Automatic Arm Restraints: Locks arms securely for safe vehicle service.
- Self-Lubricating Bearings: Reduces maintenance and ensures smooth operation.
- Oversized Carriage and Cable Sheaves: Reduces cable fatigue and strengthens lift stability.
The Dannmar D2-8F is a reliable, adaptable lift suited for professional garages or home workshops, offering the precision and strength needed for diverse lifting applications.
