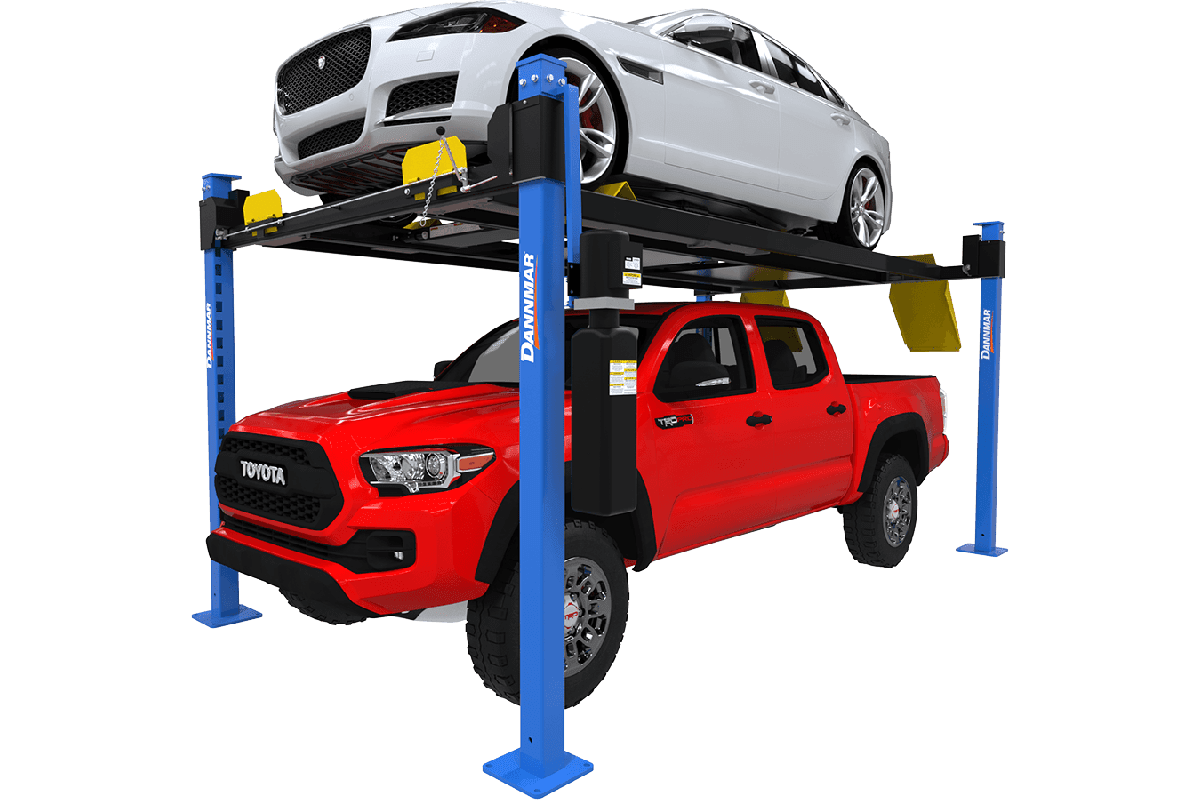

The Dannmar D4-9X, offered by Danbury Automotive Lifts, is engineered for durability, convenience, and high-rise lifting. With a generous runway length of 198″ and a lifting capacity of 9,000 lbs., this lift supports a range of vehicle types, from daily drivers to heavy-duty trucks. This model comes equipped with essential accessories, including a caster kit, drip trays, and aluminum ramps, typically sold separately by other brands.
| Key Features | Details |
|---|---|
| Brand | Dannmar – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| Lift Height | High-rise for added clearance |
| Lift Design | Freestanding with optional floor-mounting |
| Power System | Electric/hydraulic with single-cylinder operation |
| Safety Features | Pneumatic push-button safety release, backup slack-cable safety latches, multi-position safety locks |
| Runway Surface | Non-skid with built-in rail kit for additional accessories |
| Runway Width | 18.75″ (476 mm) |
| Approvals | CE and ETL-certified |
| Offered By | Danbury Automotive Lifts |
| Noise Level | 45 dB |
Specifications
| Description | Measurement |
|---|---|
| Min. Runway Height | 5″ (127 mm) |
| Max. Rise | 82″ (2,083 mm) |
| Max. Lifting Height | 87″ (2,210 mm) |
| Height of Columns | 99″ (2,515 mm) |
| Drive-Thru Clearance | 86″ (2,184 mm) |
| Overall Width | 114.5″ (2,908 mm) |
| Width Between Columns | 98″ (2,489 mm) |
| Overall Length | 227″ (5,766 mm) |
| Outside Length | 200.5″ (5,093 mm) |
| Width Between Runways | 37.5″ (953 mm) |
| Runway Centerline | 53.75″ (1,365 mm) |
| Outside Edge of Runways | 72.5″ (1,842 mm) |
| Runway Length | 189.75″ (4,820 mm) |
| Min. Wheelbase @ Rated Capacity | 135″ (3,429 mm) |
| Locking Positions | 16 (every 4″ / 102 mm) |
| Time to Full Rise | 60 seconds |
| Motor | 110VAC, 50-60Hz, 1Ph, 20A or 208-230VAC, 50-60Hz, 1Ph, 25A |
Performance & Safety
- Enhanced Runway Design: Extra-long runways accommodate larger vehicles and long wheelbases.
- Pneumatic Safety Release: Allows for secure lift operation with easy, reliable release.
- Heavy-Duty Cable System: 1/2” aircraft-grade cables and oversized sheaves reduce cable fatigue.
- Backup Safety Mechanisms: Includes secondary slack-cable lock and enclosed safety locks for additional protection.
- Wide Runway Centerline: Adjustable width provides versatility for various vehicle types.
This high-quality lift by Dannmar, provided by Danbury Automotive Lifts, is ideal for garages and workshops that need to maximize storage, service capacity, and height flexibility.
