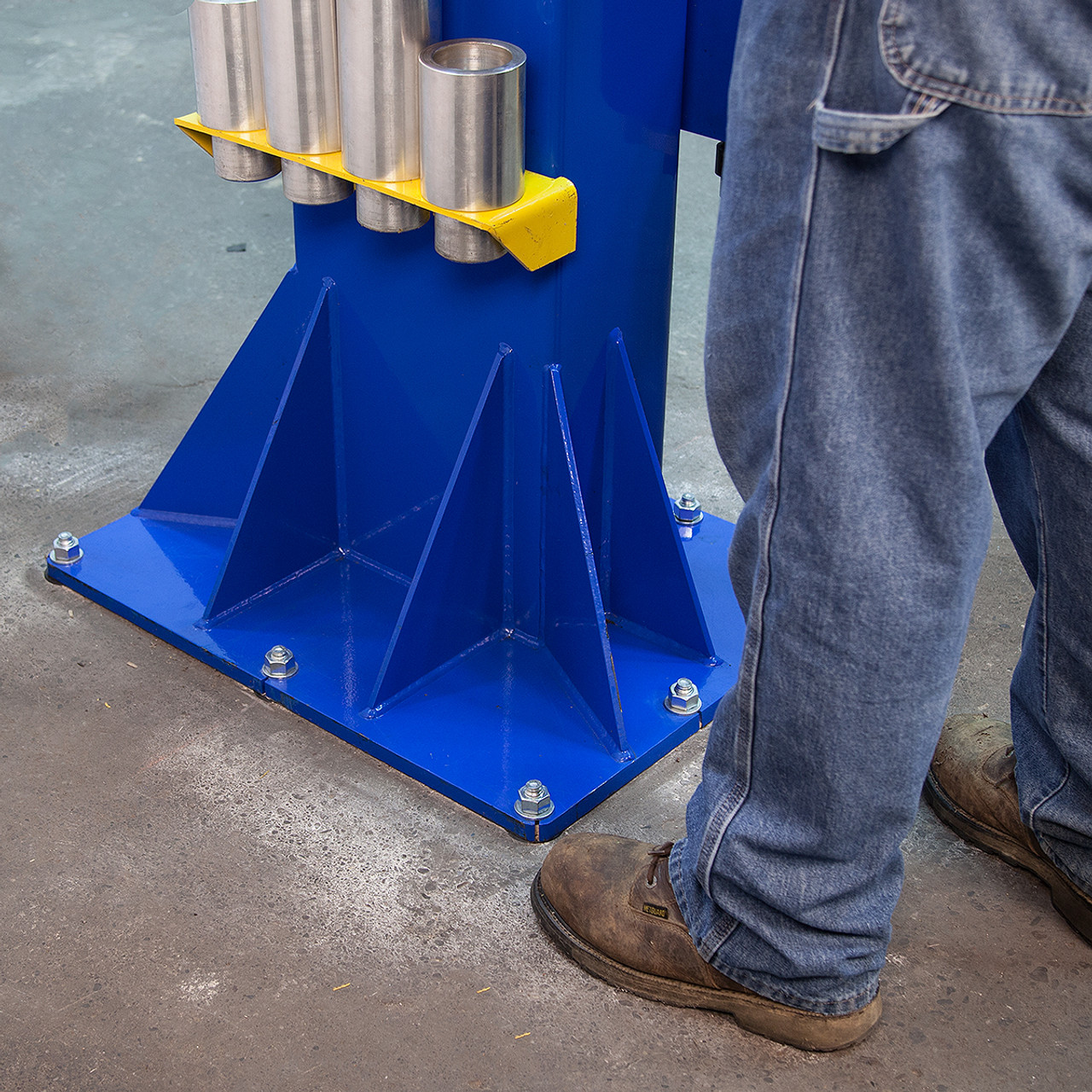

The Forward Lift DP15 is built for heavy-duty performance, featuring robust steel construction and large base plates for stability. With a 15,000 lb. capacity, it can handle most trucks, vans, and even smaller buses. Designed with three height options, the DP15 can fit a range of ceiling heights, making it a versatile choice for any shop.
| Key Features | Details |
|---|---|
| Brand | Forward Lift – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 15,000 lbs (6,804 kg) |
| Arm Type | 2-Stage reinforced with gussets |
| Adapter Extensions | Includes 5” and 10” aircraft-grade aluminum adapters |
| Column Design | Symmetrical with closed-loop hydraulic system for low maintenance |
| Safety Features | Padded shut-off bar, single-point lock release |
| Finish | Durable powder coat |
| Offered By | Danbury Automotive Lifts |
| Specifications | DP15N000 (No Extension) | DP15N001 (Standard Height) | DP15N002 (Extended Height) |
|---|---|---|---|
| Model Number | DP15N000BL / DP15N000RD | DP15N001BL / DP15N001RD | DP15N002BL / DP15N002RD |
| Total Capacity | 15,000 lbs. (6,804 kg) | 15,000 lbs. (6,804 kg) | 15,000 lbs. (6,804 kg) |
| Rise | 83.25″ (2,114 mm) | 83.25″ (2,114 mm) | 83.25″ (2,114 mm) |
| Overall Height | 154.75″ (3,930 mm) | 175″ (4,445 mm) | 199″ (5,054 mm) |
| Height to Shut-Off | 147.25″ (3,735 mm) | 167.25″ (4,250 mm) | 191.25″ (4,860 mm) |
| Ceiling Height Requirement | 155.75″ (3,956 mm) | 176″ (4,470 mm) | 200″ (5,080 mm) |
| Overall Floor Width | 154.375″ (3,921 mm) | 154.375″ (3,921 mm) | 154.375″ (3,921 mm) |
| Inside Column Width | 119.625″ (3,038 mm) | 119.625″ (3,038 mm) | 119.625″ (3,038 mm) |
| Drive-Through Width | 108.25″ (2,749 mm) | 108.25″ (2,750 mm) | 108.25″ (2,750 mm) |
| Arm Reach (Min/Max) | 38″ (965 mm) – 61″ (1,549 mm) | 38″ (965 mm) – 61″ (1,549 mm) | 38″ (965 mm) – 61″ (1,549 mm) |
| Adapter Height (Low/High) | 5.5″ (139 mm) – 15.5″ (393 mm) | 5.5″ (139 mm) – 15.5″ (393 mm) | 5.5″ (139 mm) – 15.5″ (393 mm) |
| Voltage / Amps | 208/230V, 20 Amps | 208/230V, 20 Amps | 208/230V, 20 Amps |
| Motor | 2 HP / 1Ø | 2 HP / 1Ø | 2 HP / 1Ø |
Performance & Safety
- Heavy-Duty Construction: Reinforced 2-stage arms with gusseting for strength.
- Enhanced Adapter Extensions: Aircraft-grade aluminum adapters in 5” and 10” sizes for varied vehicle needs.
- Low Profile Arms: Easier maneuverability for larger vehicles.
- Padded Safety Bar: Prevents overextension and ensures safe operation.
- Powder-Coated Finish: Resists wear and corrosion, adding longevity to the lift.
