The Forward Lift DP18 is a high-capacity, heavy-duty lift designed to handle the heaviest trucks, vans, and small buses. Constructed with high-strength steel columns and large base plates, it offers the stability and support needed for demanding lifting tasks. With an impressive 18,000 lb capacity, the DP18’s adaptability shines with three height options to fit a variety of ceiling heights, making it a versatile solution for professional workshops.
| Key Features | Details |
|---|---|
| Brand | Forward Lift – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 18,000 lbs (8,164 kg) |
| Column Design | Symmetrical with closed-loop hydraulic system |
| Adapter Extensions | Includes 8 aluminum adapters (4 of each: 5” and 10”) |
| Arm Type | 2-Stage with reinforced gusset |
| Safety Features | Padded shut-off bar, single-point lock release |
| Finish | Durable powder coat |
| Offered By | Danbury Automotive Lifts |
| Specifications | DP18N000 (No Extension) | DP18N001 (Standard Height) | DP18N002 (Extended Height) |
|---|---|---|---|
| Model Number | DP18N000BL / DP18N000RD | DP18N001BL / DP18N001RD | DP18N002BL / DP18N002RD |
| Total Capacity | 18,000 lbs. (8,164 kg) | 18,000 lbs. (8,164 kg) | 18,000 lbs. (8,164 kg) |
| Rise | 83.25″ (2,114 mm) | 83.25″ (2,114 mm) | 83.25″ (2,114 mm) |

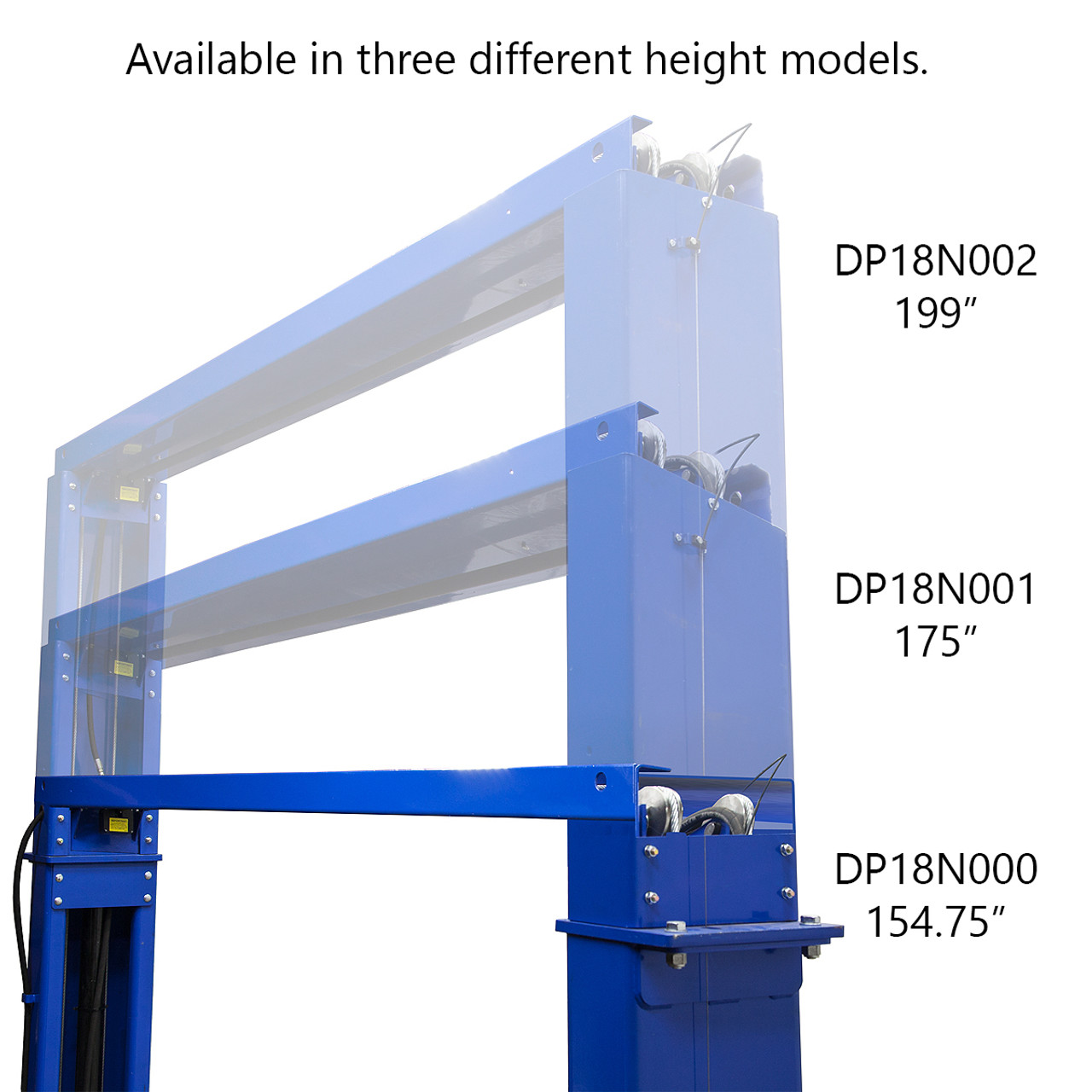

| Overall Height | 154.75″ (3,930 mm) | 175″ (4,445 mm) | 199″ (5,054 mm) |
| Height to Shut-Off | 147.25″ (3,735 mm) | 167.25″ (4,250 mm) | 191.25″ (4,860 mm) |
| Minimum Ceiling Height | 155.75″ (3,956 mm) | 176″ (4,470 mm) | 200″ (5,080 mm) |
| Overall Floor Width | 154.375″ (3,921 mm) | 154.375″ (3,921 mm) | 154.375″ (3,921 mm) |
| Inside Column Width | 119.625″ (3,038 mm) | 119.625″ (3,038 mm) | 119.625″ (3,038 mm) |
| Drive-Through Width | 108.25″ (2,749 mm) | 108.25″ (2,750 mm) | 108.25″ (2,750 mm) |
| Arm Reach (Min/Max) | 38″ (965 mm) – 61″ (1,549 mm) | 38″ (965 mm) – 61″ (1,549 mm) | 38″ (965 mm) – 61″ (1,549 mm) |
| Adapter Height (Low/High) | 5.5″ (139 mm) – 15.5″ (393 mm) | 5.5″ (139 mm) – 15.5″ (393 mm) | 5.5″ (139 mm) – 15.5″ (393 mm) |
| Voltage / Amps | 208/230V, 20 Amps | 208/230V, 20 Amps | 208/230V, 20 Amps |
| Motor | 2 HP / 1Ø | 2 HP / 1Ø | 2 HP / 1Ø |
Performance & Safety
- Reinforced Arm Design: Provides durability and stability for heavy-duty tasks.
- Dual Stage Arm Design: Adaptable reach with high-grade aluminum adapters.
- Closed-Loop Hydraulic System: Reduces contamination and prolongs lift life.
- Safety Shut-Off Bar: Prevents vehicle contact with the lift’s upper limits.
- Powder-Coated Finish: Resistant to wear, extending the lift’s lifespan.
This lift’s high-strength design and array of height options make it an essential addition for any workshop aiming to handle larger vehicles with reliability and safety.
