iDEAL CK-FP14KACX-IWA-60-2000T-K 14,000 lb Alignment Lift Package – Offered by Danbury Automotive Lifts
This premium alignment package combines the power of the iDEAL FP14KAC-X 14,000 lb 4-post lift and the precision of the iDEAL iPRO 3D Imaging Wheel Alignment System (IWA-60-2000T-K), delivering professional-grade performance for vehicle service and alignment. It’s engineered to handle a wide variety of vehicles, providing durability, safety, and accuracy in every service. The package also includes the iDEAL RAJ-7K Rolling Bridge Jacks, further expanding service capabilities.
Package Components
| Component | Description |
|---|---|

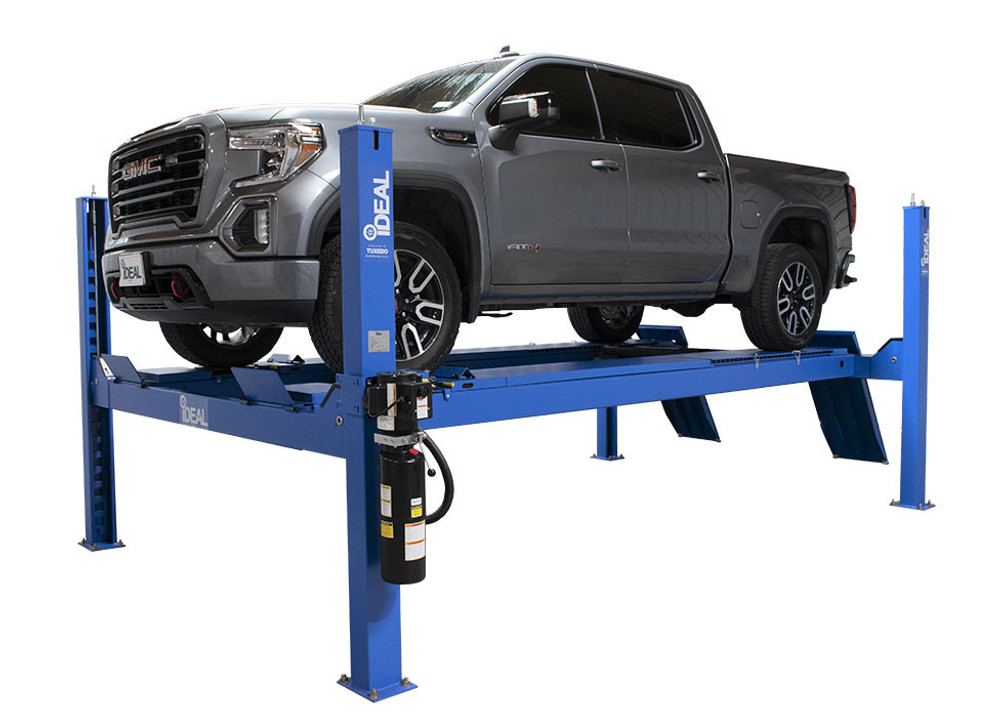

| iDEAL FP14KAC-X Lift | 14,000 lb capacity, closed-front, cable-driven 4-post lift with extended-rise capability and 18 locking height positions. Single-point pneumatic lock release with powder-coated finish for durability. |

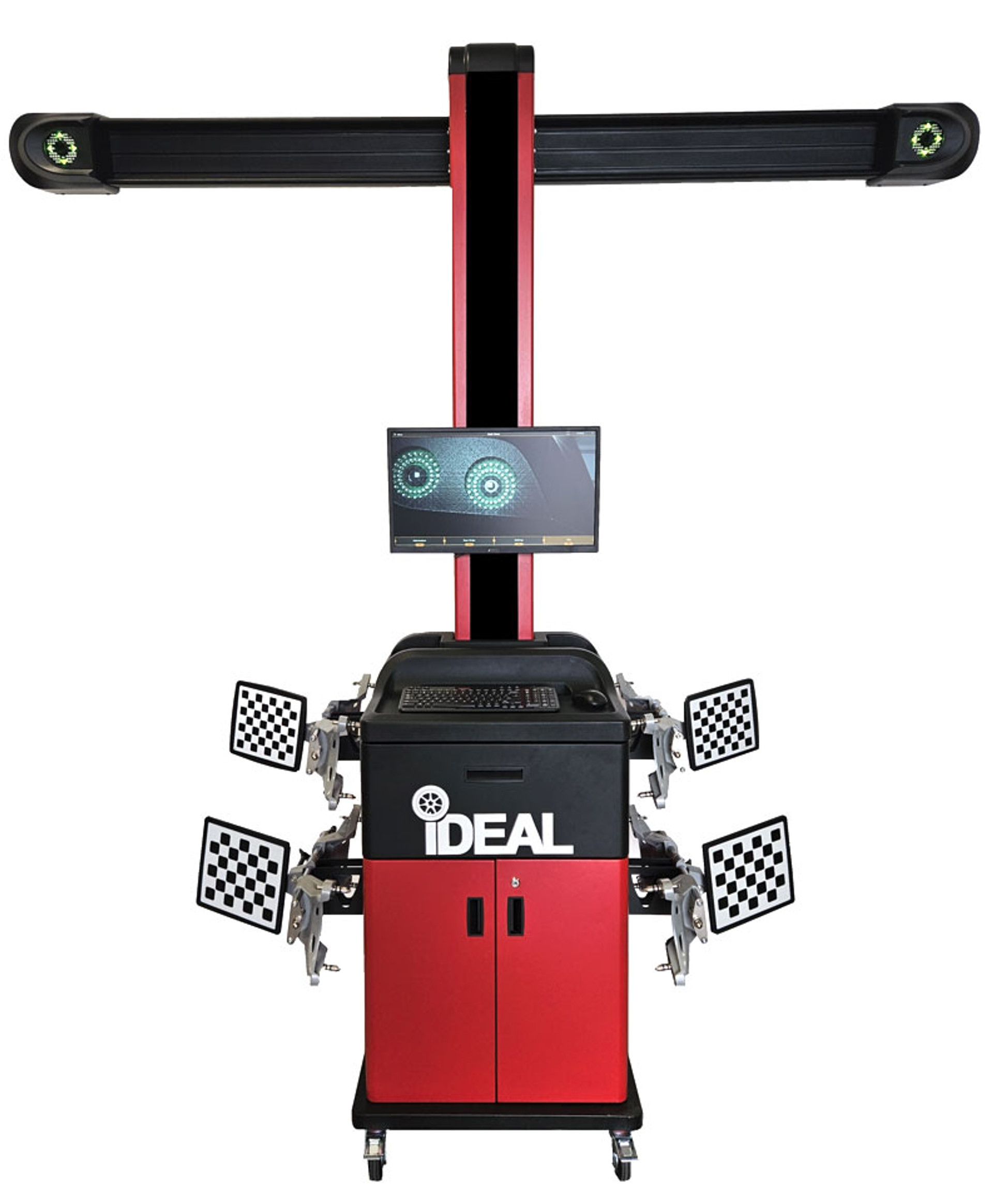

| iDEAL iPRO 3D Aligner | 3D imaging wheel alignment system with 0.01-degree accuracy, Wide Scope technology for extended height range, real-time measurements, and 2D/3D display options on a 21.5″ LCD monitor. |
| iDEAL RAJ-7K Bridge Jacks | 7,000 lb capacity, pneumatic/hydraulic rolling bridge jacks with adjustable height roller body assemblies and dual-precision guide wheels for “wheels-free” service. |

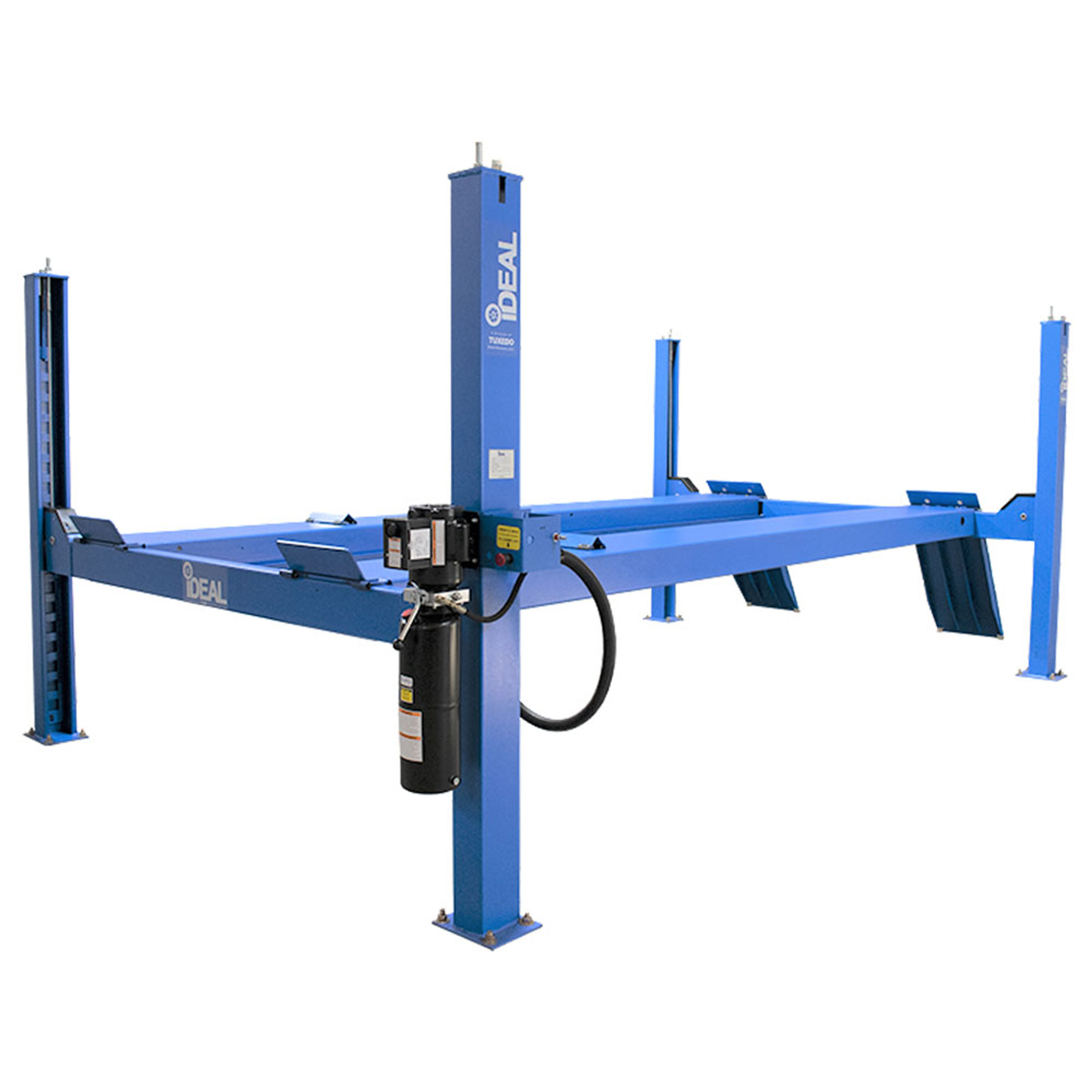

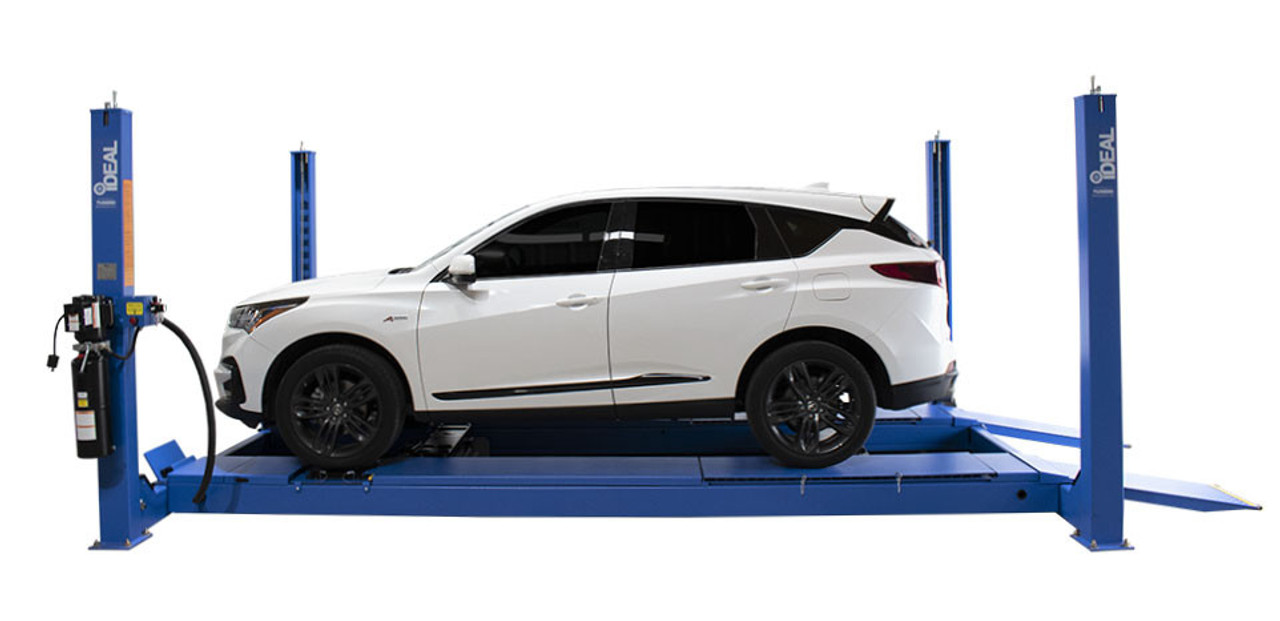

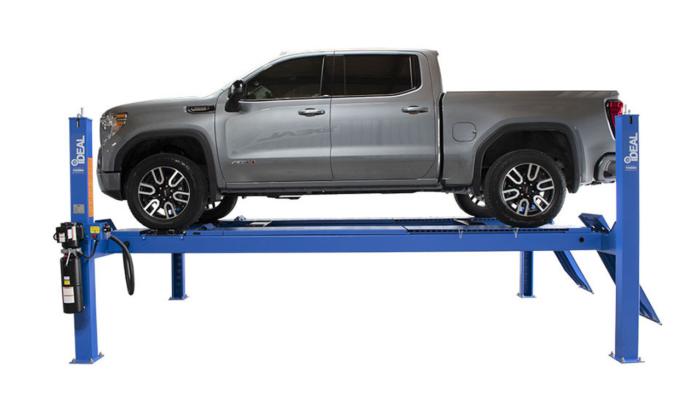

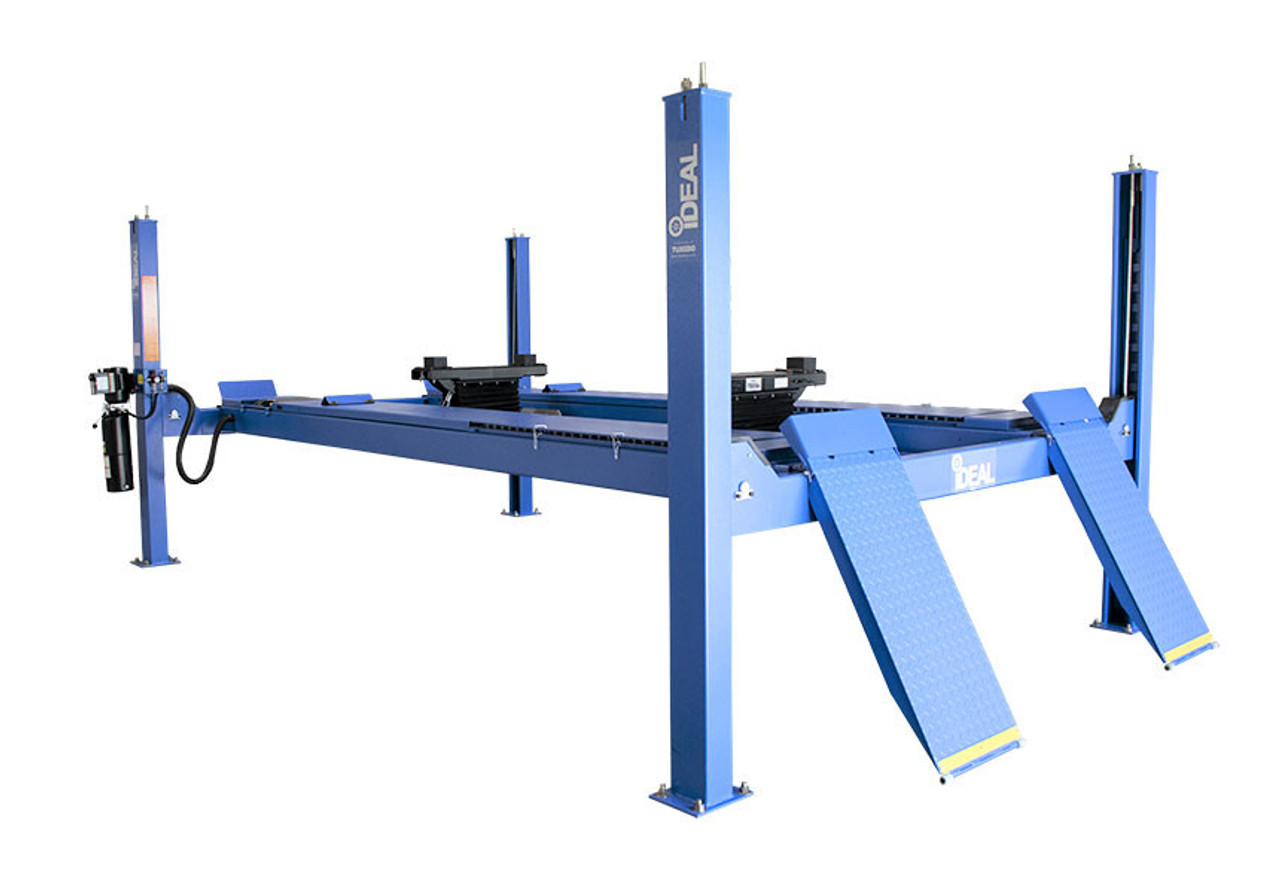

iDEAL FP14KAC-X 4-Post 14,000 lb Alignment Lift Specifications
| Feature | Details |
|---|---|
| Capacity | 14,000 lbs |
| Overall Length (with Ramp) | 252.5″ |
| Overall Width (with Power Unit) | 142″ |
| Overall Height | 92.5″ |
| Max Rise Height | 79.5″ |
| Drive-Through Clearance | 100″ |
| Width Between Runways | 43″ or 46″ |
| Max Service Wheelbase | 182.5″ |
| Lock Positions | 18 positions |
| Power Requirement | 220V, 20 Amp, Single Phase |
| Minimum Bay Size | 16′ x 25′ |
iDEAL iPRO 3D Imaging Wheel Alignment System (IWA-60-2000T-K) Specifications
| Feature | Details |
|---|---|
| Aligner Type | 3D ‘Wide Scope’ Imaging |
| Accuracy | 0.01 degrees |
| Max Alignment Wheelbase (2-Wheel) | 166.7″ |
| Max Alignment Wheelbase (4-Wheel) | 157″ |
| Max Service Wheelbase | 182.5″ |
| Monitor | 21.5″ LCD, 2D/3D display options |
| Software & Database | 25+ years of vehicle specs, alignment diagrams, and adjustment images |
| Power Requirement | 120V, 15 Amp, Single Phase |
| Additional Features | Portable multi-bay system, wireless control, adjustable wheel clamps, dual high-res cameras |

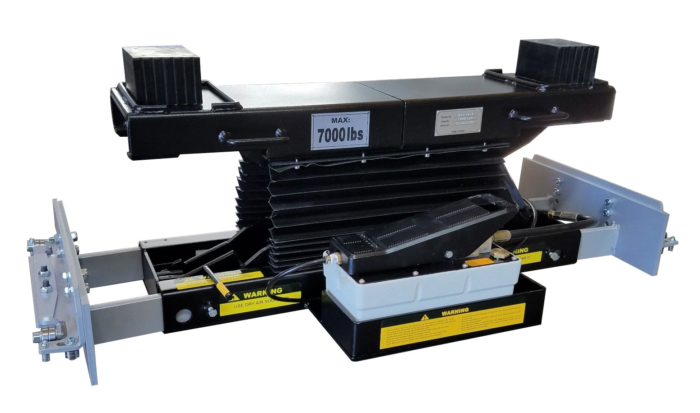

iDEAL RAJ-7K Rolling Bridge Jacks Specifications
| Feature | Details |
|---|---|
| Lifting Capacity | 7,000 lbs |
| Support Arms – Min/Max | 37-3/4″ – 49-1/4″ |
| Lifting Height – Min/Max | 8-11/16″ – 18-7/8″ |
| Rubber Adapter Height | 3-1/8″ |
| Air Power Requirement | 125 PSI, 20 CFM |
| Features | Adjustable height roller body, dual-precision guide wheels, spring-loaded roller action |
Standard Accessories Included
| Accessory | Description |
|---|---|
| Wheel Clamps | 4 adjustable wheel clamps (12″ to 24″) |
| Magnesium Alloy Targets | Durable, oil-resistant targets |
| Caster Kit | Enables easy movement of the lift |
| Jack Tray | For lifting one end of the vehicle |
| Drip Trays | 6 trays included for fluid containment |
| Approach Ramps | 4 removable approach ramps with nylon rollers |
| Steering Wheel Holder & Brake Depressor | For secure positioning during alignment |
| Storage Cabinet | Lockable with storage brackets for wheel adapters and targets |
| Remote Control & USB Receiver | Wireless operation for convenience |
This package provides a comprehensive solution for alignment, lifting, and service, ensuring safety, accuracy, and efficiency in every use. Designed with high-performance standards and quality materials, the iDEAL CK-FP14KACX-IWA-60-2000T-K Alignment Lift Package, offered by Danbury Automotive Lifts, is perfect for any professional garage aiming to deliver top-tier vehicle service and alignment capabilities.
