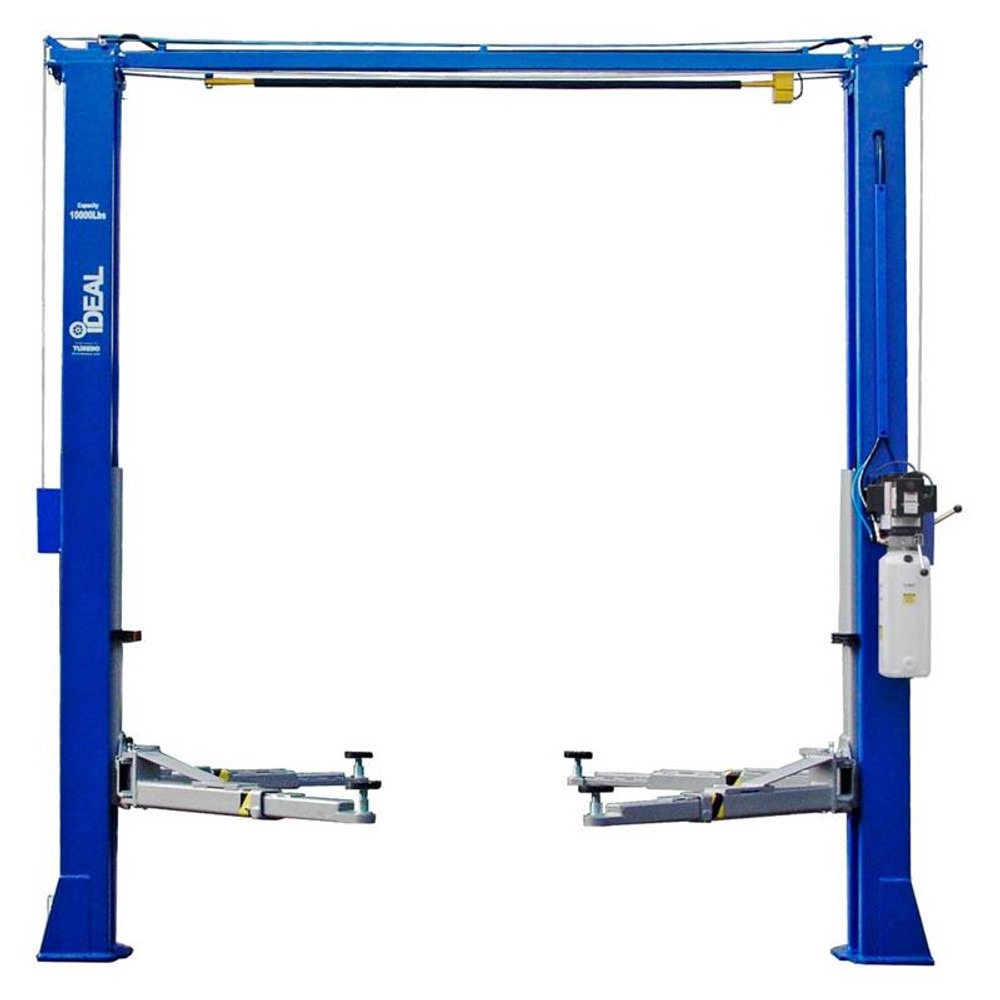

The iDEAL TP10KAC-DX 10,000 lb. Bi-Symmetric™ 2-Post Lift combines the benefits of both symmetric and asymmetric lifting, thanks to its 3-stage front arms with full 180° rotation. This clear-floor lift, ideal for passenger cars, SUVs, and light-duty trucks, is equipped with advanced features, including low-profile swing arms, adjustable swivel pads, and a single-point lock release. With a strong, single-piece column and direct-pull hydraulic cylinders, this lift provides stability and efficiency, making it an exceptional choice for any service garage.
| Key Features | Details |
|---|---|
| Brand | iDEAL – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 10,000 lbs |
| Design | Bi-Symmetric Arm Design, Clear Floor |

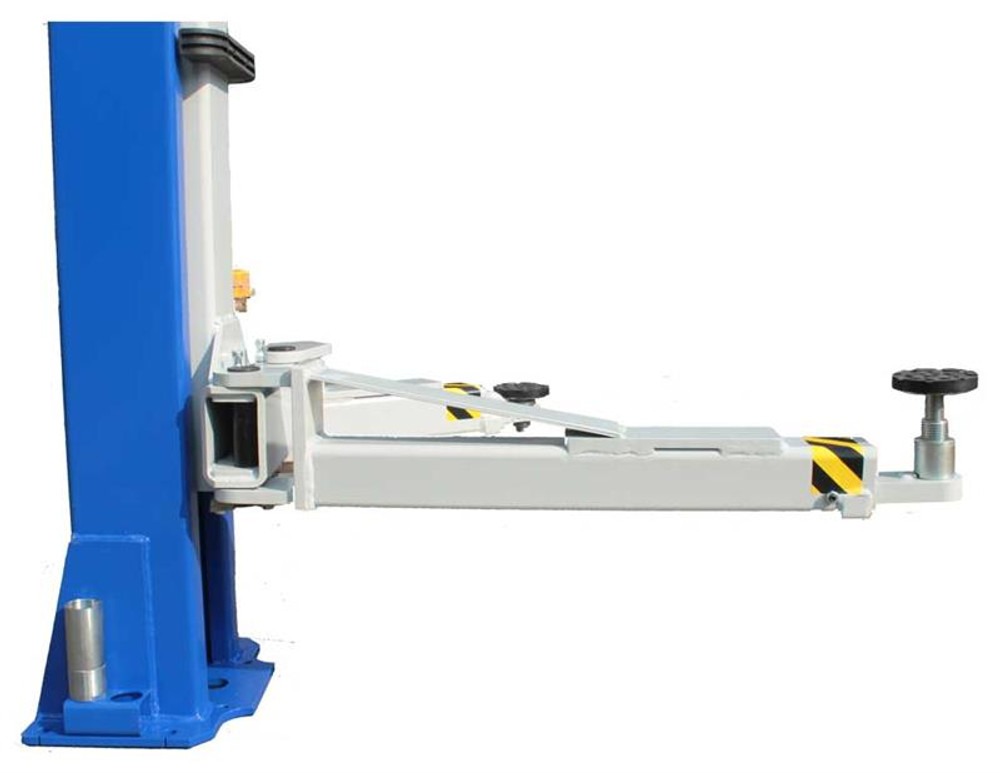

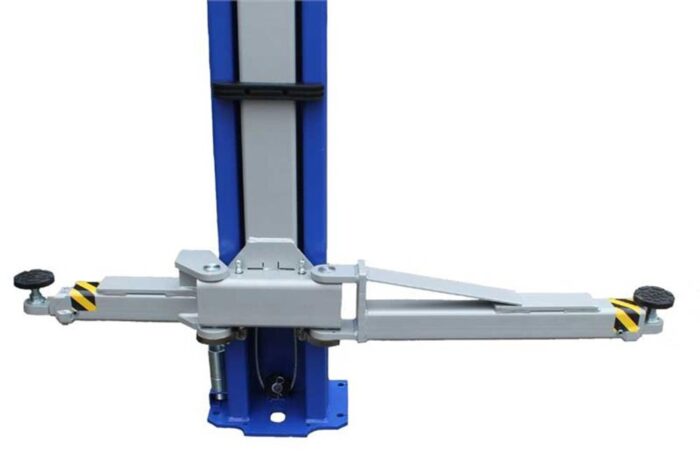

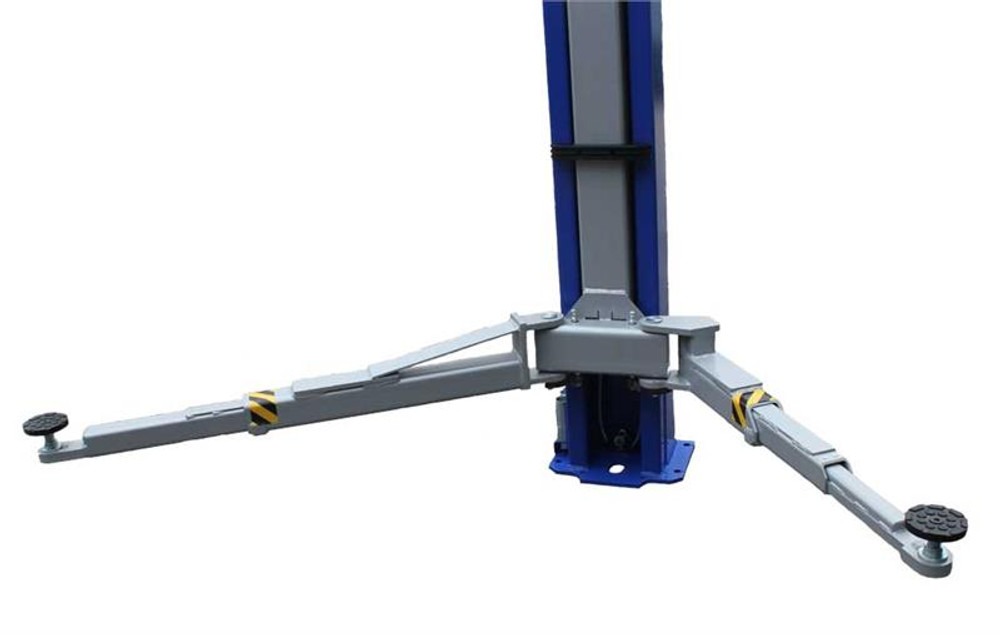

| Arm Type | 3-stage front arms, low-profile swing arm |
| Swivel Pads | Adjustable, with 2″ & 4″ stackable truck adapters |
| Safety Mechanism | Single-point lock release, automatic arm restraints |

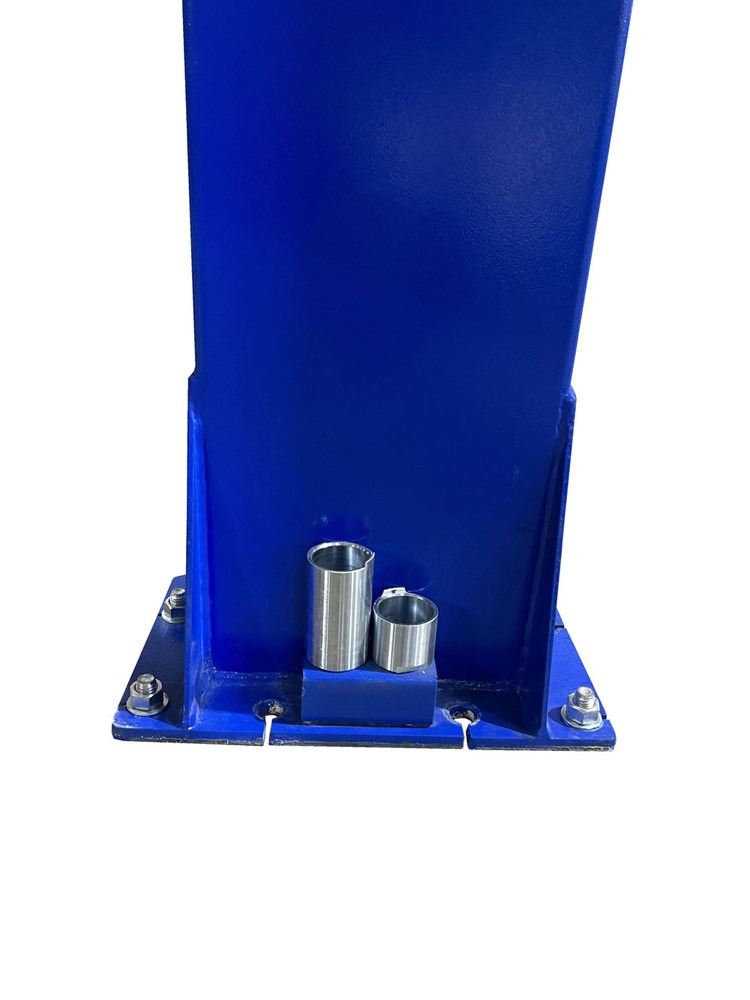

| Column | Rigid single-piece for enhanced stability |

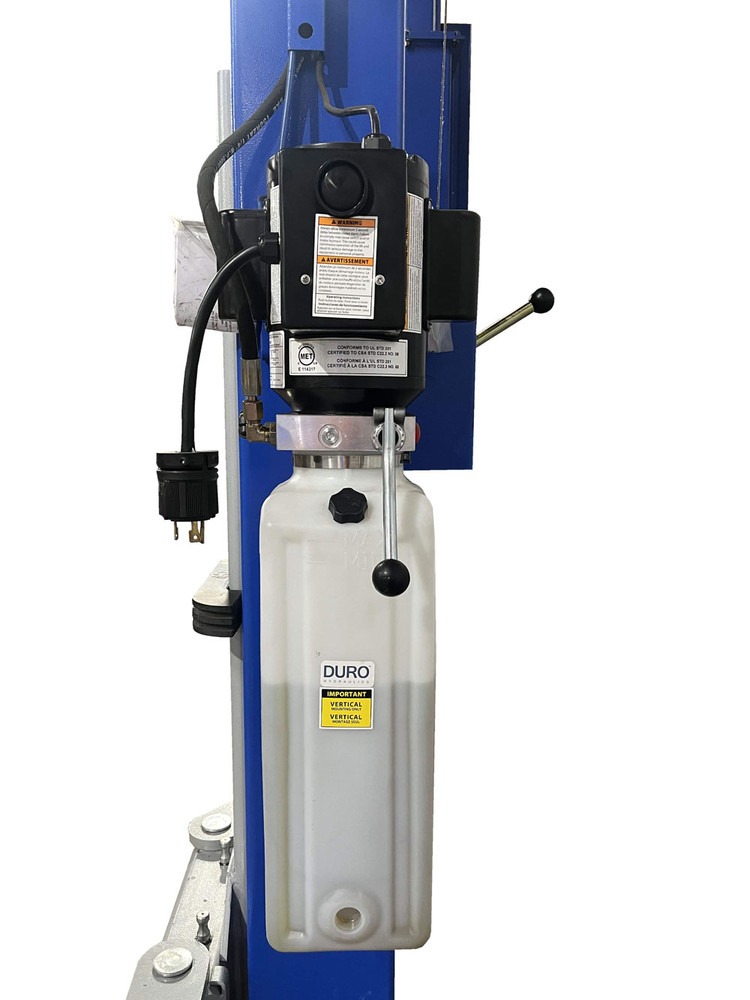

| Power Unit Certification | MET UL/CSA Certified Duro |
| Durability | Rubber door guards, powder-coated finish |
| Warranty | 5 years structural, 1-year parts |
| Offered By | Danbury Automotive Lifts |
| Specifications | Measurements |
|---|---|
| Overall Height | 144″ |
| Overall Width w/ Power Unit | 145 1/2″ |
| Max Lift Height | 71″ |
| Width Between Columns | 116″ |
| Minimum Pad Height | 4″ |
| Drive-Thru Clearance | 104″ |
| Lifting Speed | 50 seconds |
| Short Arm Reach (Min/Max) | 23″ – 45″ |
| Long Arm Reach (Min/Max) | 41″ – 59″ |
| Max Load per Arm | 2,500 lbs |
| Shipping Weight | 1,705 lbs |
| Power Requirements | 220V, 20 AMP, Single Phase |
Performance & Safety

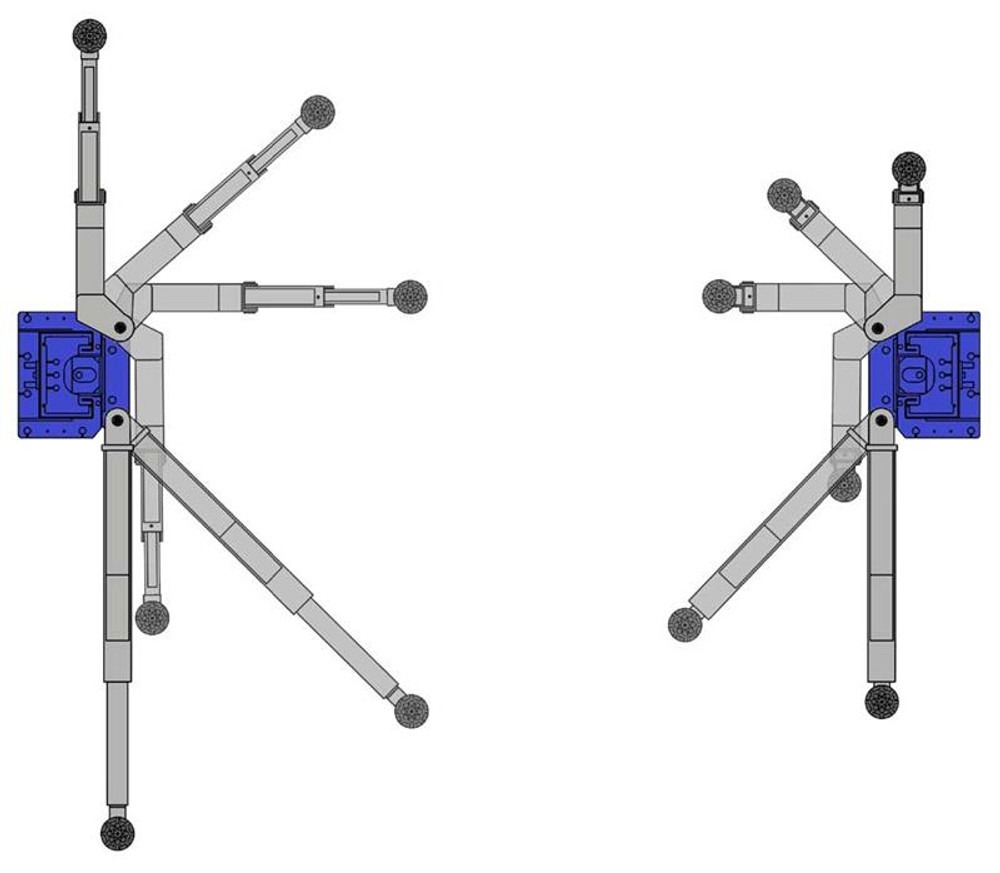

- Bi-Symmetric Arm Design: Accommodates a range of vehicles with both symmetric and asymmetric lifting options.
- Direct Pull Cylinders: Efficient lifting with fewer moving parts for reduced maintenance.
- Enhanced Safety: Includes automatic arm restraints, padded overhead shutoff, and rubber door guards.
- Durable Build: Powder-coated finish and robust construction ensure long-lasting performance.
The iDEAL TP10KAC-DX provides high-quality performance and flexibility, making it a valuable addition to any professional automotive service setting.
