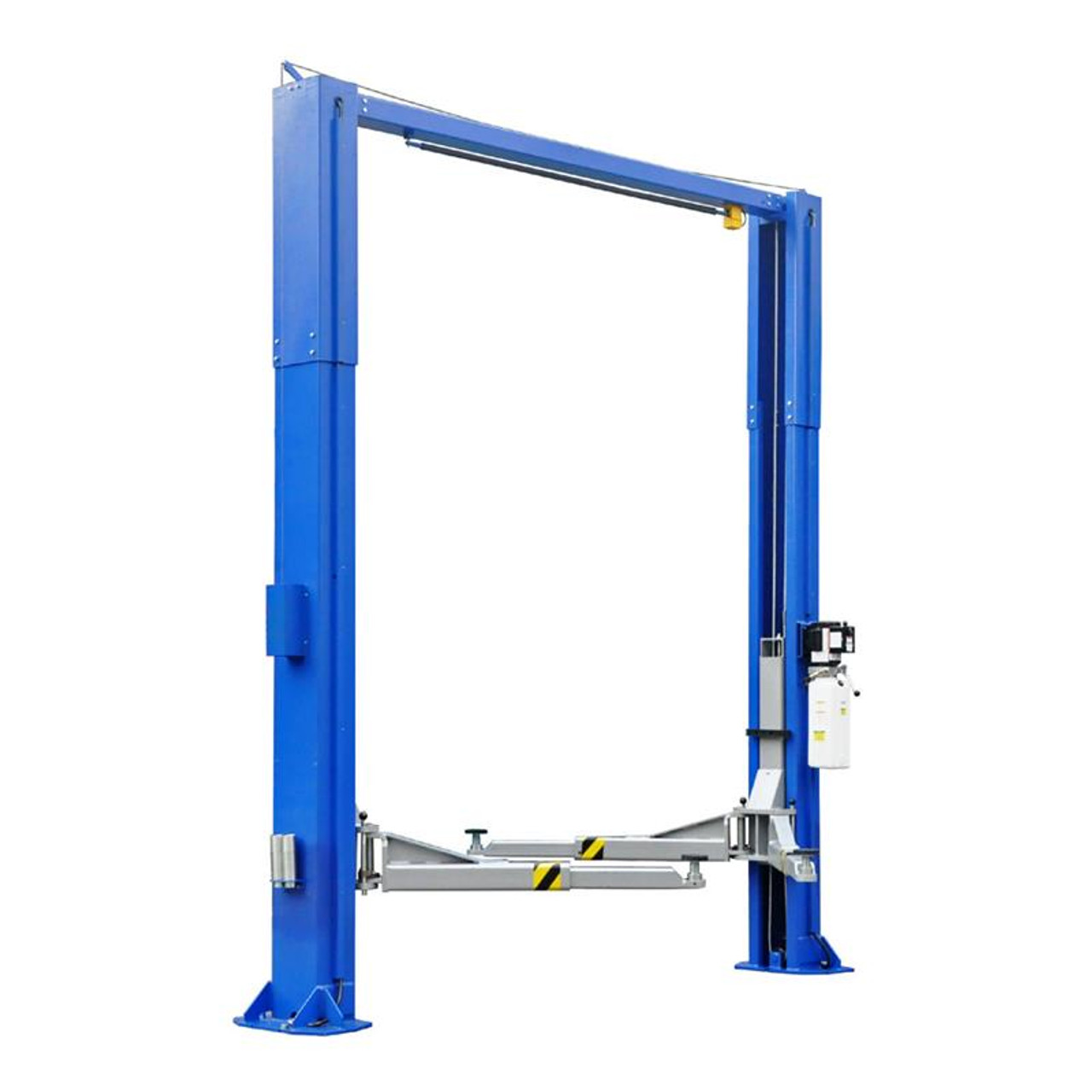

The iDEAL TP12KSC-DX is a heavy-duty, 12,000 lb capacity, two-post symmetric lift designed for reliable performance on light and super-duty trucks and most passenger vehicles. This lift combines a clear floor design, low-profile swing arms, adjustable swivel pads, and a single-point cable lock release for easy operation and stability. With automatic arm restraints, rubber door guards, and a durable powder-coat finish, this lift is built for high standards of quality and safety.
| Key Features | Details |
|---|---|
| Brand | iDEAL – Offered by Danbury Automotive Lifts |
| Lifting Capacity | 12,000 lbs |
| Design | Symmetric, Clear Floor |
| Arm Type | Low-profile swing arms |
| Swivel Pads | Adjustable, with 2.6″ & 5″ stackable adapters |
| Safety Mechanism | Single-point cable lock release, automatic arm restraints |
| Power Unit Certification | MET UL/CSA Certified DURO |
| Durability | Powder-coated finish, rubber door guards |
| Warranty | 5 years structural, 1-year parts |
| Offered By | Danbury Automotive Lifts |
| Specifications | Measurements |
|---|---|
| Overall Height | 168 1/2″ |
| Overall Width w/ Power Unit | 151 5/16″ |
| Max Lift Height | 75″ |
| Width Between Columns | 122″ |
| Minimum Pad Height | 4 7/8″ |
| Drive-Thru Clearance | 109″ |
| Lifting Speed | 50 seconds |
| Short Arm Reach (Min/Max) | 37 5/8″ – 57″ |
| Long Arm Reach (Min/Max) | 37 5/8″ – 57″ |
| Max Load per Arm | 3,000 lbs |
| Ceiling Height Required | 170″ |
| Shipping Weight | 2,295 lbs |
| Power Requirements | 220V, 20 AMP, Single Phase |
Performance & Safety
- Symmetric Arm Design: Ensures stability for a wide range of vehicles, especially suitable for trucks.
- Direct ‘Push’ Drive Cylinders: Offers smooth lifting and lowering with fewer moving parts for reduced maintenance.
- Safety-Driven Features: Includes automatic arm restraints, rubber door guards, and a single-point lock release for secure operations.
- Heavy-Duty Construction: Durable powder-coat finish and external hose guards for extended lift life.
The iDEAL TP12KSC-DX 2-post lift is a premium, value-driven solution for professional shops needing dependable lifting power.
