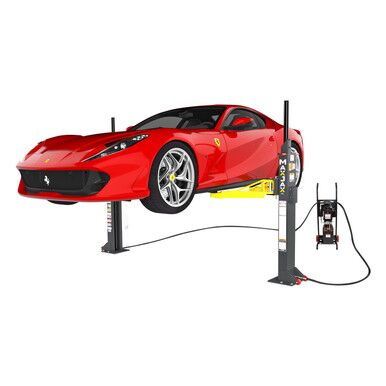

MaxJax M7K Portable Two-Post Garage Lift – Standard Package
Key Features
| Feature | Description |
|---|---|
| 7,000 lbs. Lifting Capacity | Handles most passenger vehicles and light-duty trucks effortlessly. |
| Portability | Easily move and store the lift, clearing garage space when not used. |
| Direct-Drive Technology | Eliminates lifting chains for smoother, low-maintenance operation. |
| Adjustable Lifting Arms | Accommodates a variety of vehicles, including those with unique frame configurations. |
| Automatic Arm Restraints | Locks arms in place for safety; disengages automatically when lowering. |
| Industrial-Grade Cylinders | High-quality HVLP Direct-Drive cylinders for reliable performance. |
| Single-Piece Columns | Increases durability and reduces fatigue under heavy loads. |
| Quick Setup | Recessed drop-in anchors and quick-connect hydraulic couplers make setup fast and easy. |
| Pop-Up Bay Ready | It is ideal for creating additional workspace on demand and is perfect for expanding service areas. |
| ADAS Calibration Compatible | Provides the precision and space needed for Advanced Driver Assistance Systems (ADAS) calibration. |
Specifications
| Specification | Details |
|---|---|
| Brand | MaxJax |
| Offered By | Danbury Automotive Lifts |
| Model | MaxJax M7K |
| Capacity | 7,000 lbs. (2,722 kg) |
| Max Load Per Arm | 1,750 lbs. (794 kg) |
| Height Overall | 89.5″ (2,273 mm) |
| Height of Column | 64″ (1,626 mm) |
| Min. Pad Height | 5.5″ (139.7 mm) |
| Max Lift Height (Pad Only) | 47.25″ (1,200 mm) |
| Max Lift Height with Adapter | 50.5″ (1,283 mm) |
| Arm Reach (Min-Max) | 26″ – 40″ (660 mm – 1,016 mm) |
| Width (Outside Base Plate) | 105″ – 135″ (2,667 mm – 3,429 mm) |
| Drive-Thru Clearance | 74″ – 104″ (1,880 mm – 2,642 mm) |
| Locking Positions | 7 (every 3″) |
| Motor | VAC / 50-60 Hz / 1 Phase / 15 Amps |
| Time to Full Rise | 45 seconds |
| Individual Column Weight | 300 lbs. (136 kg) |
| Shipping Weight | 980 lbs. (444 kg) |
| Shipping Dimensions | 68″ x 39″ x 35″ (1,727 mm x 990.6 mm x 889 mm) |
The MaxJax M7K Standard Package offers a portable, reliable, and flexible solution for automotive maintenance tasks. Whether you need extra garage space, quick setup, or advanced calibration compatibility, this lift is your dependable partner for all vehicle servicing needs.
