Advanced Precision Balancing for Versatile Applications
The Ranger DST30P Wheel Balancer delivers unmatched accuracy, featuring advanced 64-tooth magnetic transducer encoder technology for precise weight placements. Compact and efficient, the DST30P handles wheels up to 30” in diameter with ease. Its space-saving design, coupled with robust features like a Direct-Axis drive system and highly precise digital sensor technology, makes it the perfect solution for small shops, high-volume tire centers, and professionals seeking top-tier performance.
Key Features
- Direct-Axis Drive System
- Ensures smooth, maintenance-free operation with a single belt connecting the motor and unbalanced sensor.
- 64-Tooth Magnetic Encoder
- Offers superior precision, doubling the accuracy of weight placement compared to previous models.
- Dynamic, Static, and Performance Alloy Settings
- Supports a variety of wheel types, including OEM and aftermarket configurations.

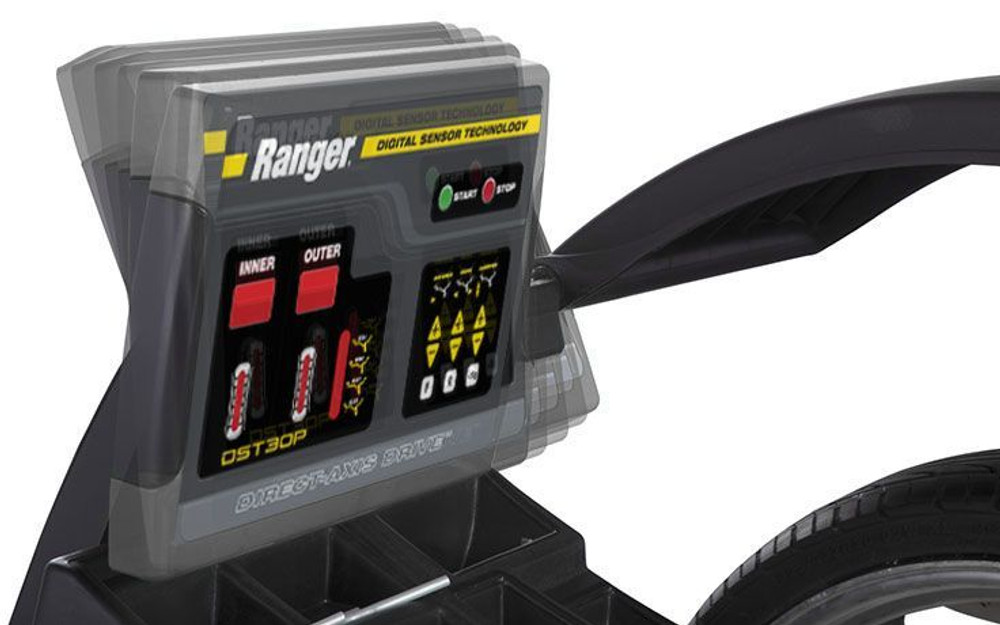

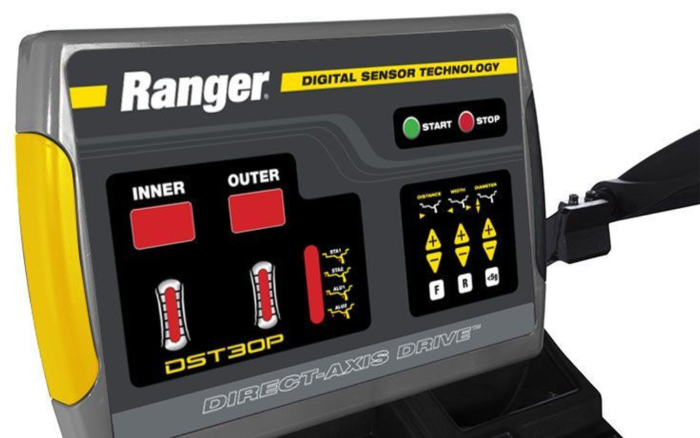

- Full-Tilt LED Display Panel
- Adjustable tower-style display minimizes glare and maximizes operator comfort.
- Multi-Directional Quartz Piezoelectric Load Sensors
- Provides exceptional sensitivity and fatigue resistance for superior balancing accuracy.

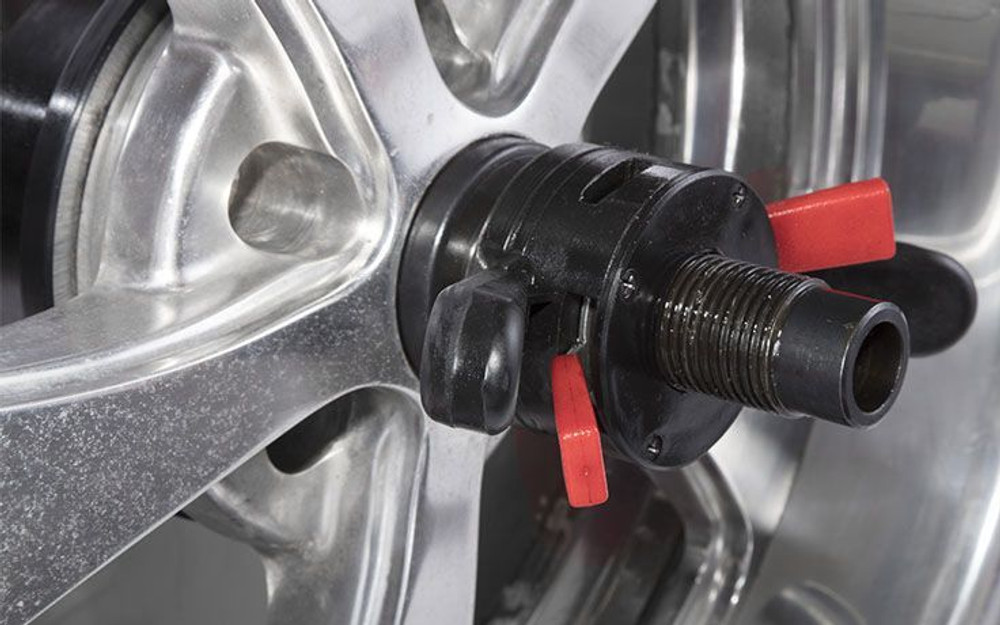

- Quick-Release Hub Nut
- Reduces setup times for efficient operations.

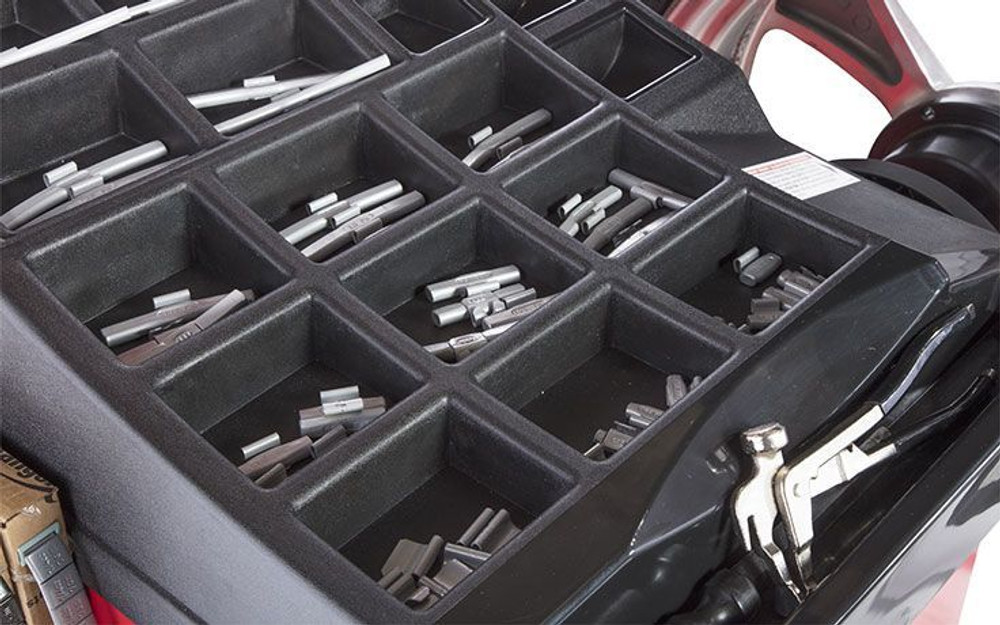

- Wheel Weight Starter Kit
- Includes adhesive steel tape weights (black and silver) and mixed clip-on weights.
Specifications
| Feature | Details |
|---|---|
| Model | Ranger DST30P |
| Style | Auto & Light Truck |
| Motor | 1.5 HP, 110-240V, 50/60 Hz, 1-Phase |
| Drive System Type | Belt Drive |
| Balancing Modes | Dynamic / Static / 3-Alloy |
| Cycle Time | 6 – 9 Seconds (avg.) |
| Wheel Diameter Capacity | 8” – 30” (203 mm – 762 mm) |
| Wheel Width Capacity | 1.2” – 20” (30 mm – 508 mm) |
| Max. Tire Diameter | 50” (1,270 mm) |
| Max. Tire Weight | 150 lbs. (68 kg) |
| Balancing Speed | 180 RPM |
| Accuracy | +/- 1 gram (.035 oz) |
| Resolution | 0.01 ounce, 1.4° |
| Shipping Weight | 398 lbs. (181 kg) |
| Shipping Dimensions | 45″ x 50″ x 68″ (1,143 mm x 1,270 mm x 1,727 mm) |
| Brand | Ranger |
| Offered By | Danbury Automotive Lifts |
Why Choose the Ranger DST30P?
The DST30P is engineered for efficiency, offering highly precise balancing capabilities at an affordable price point. Whether balancing light truck wheels or handling challenging configurations, this machine is built to save time, reduce operational costs, and improve service quality. Its compact size and user-friendly design make it the ultimate choice for professional shops and garages.
