Supreme Speed and Precision with Laser-Spot™ Technology
The Ranger LS43B sets a new standard in wheel balancing with its advanced Laser-Spot™ technology and precision engineering. Designed for high-volume shops, this balancer ensures quick setup, fast cycle times, and pinpoint weight placement accuracy. Handling wheels up to 43 inches in diameter, the LS43B balances wheels within mere seconds, providing a superior driving experience for your customers.
Key Features
Laser-Spot™ Technology

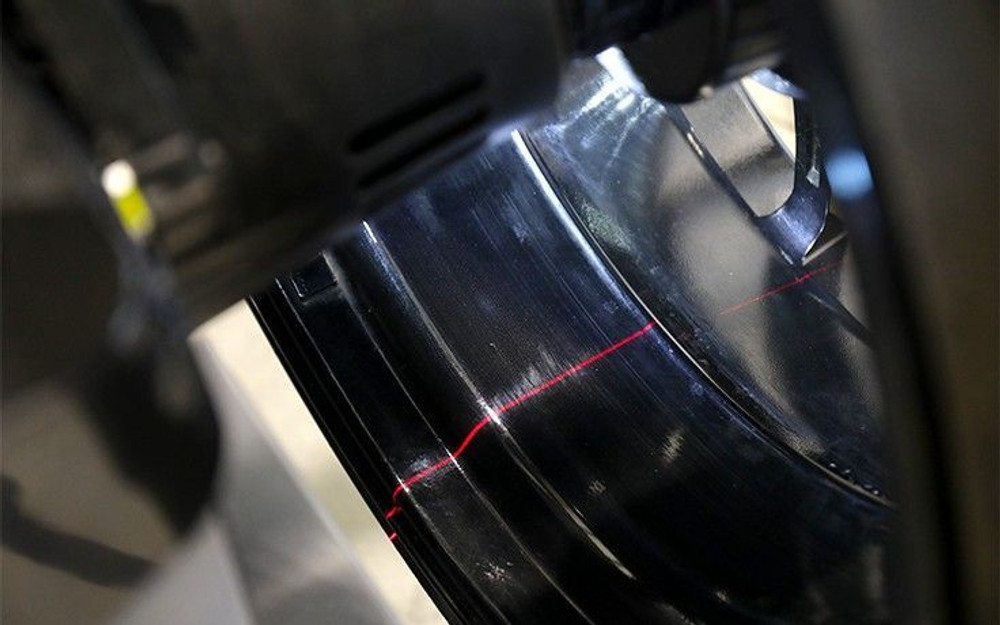

- Laser-Guided Precision: Dual Laser-Spot™ indicators ensure accurate inboard and outboard weight placements.
- Simplified Placement: Automatically directs stick-on weights to the 6-o’clock position and clip-on weights to the 12-o’clock position for seamless installation.
- Enhanced Accuracy: Minimizes weight usage while ensuring smooth and long-lasting wheel balances.
Automatic 3D Data Entry

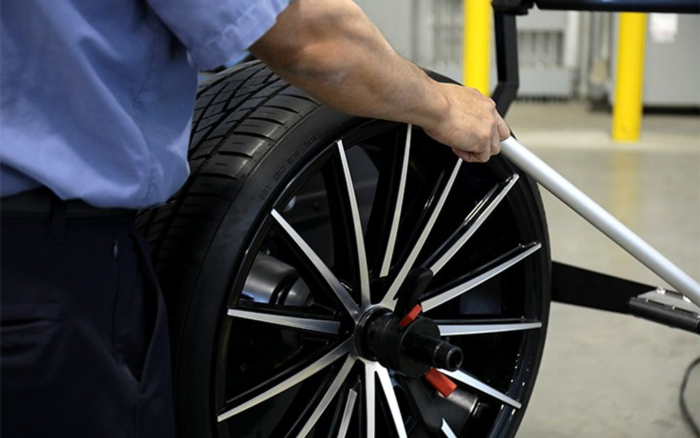

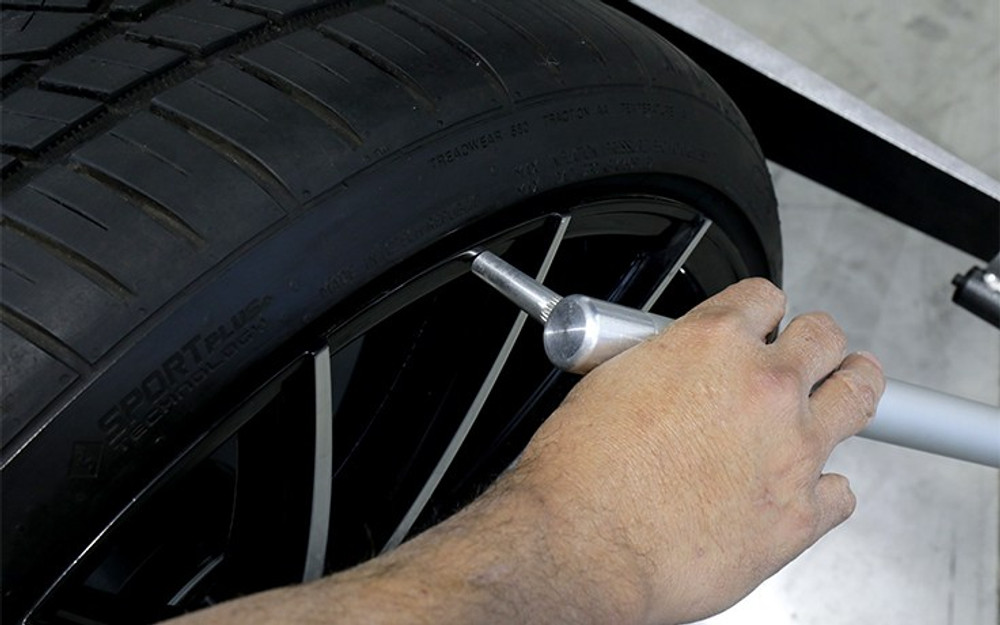

- DataWand™ and Quick-Touch Data Arm™: Automatically retrieve wheel diameter, width, and offset distance within seconds.
- User-Friendly: Eliminates the need for manual data input, saving time and reducing errors.
- Optional Manual Input: For operators who prefer manual controls.
Efficient and Ergonomic Operation
- 7-Second Cycle Time: Rapid operation ensures high productivity for busy shops.
- Automatic Braking System: Electromagnetic brakes hold the wheel at precise positions for effortless weight application.

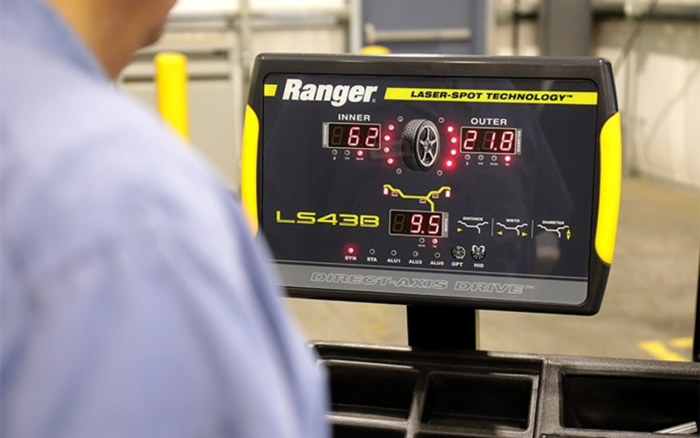

- Bright LED Displays: Guides technicians with clear visuals for weight placement, even in low-light conditions.
Advanced Balancing Technology
- Dynamic, Static, and ALU Modes: Offers flexibility to handle a wide range of wheel types and profiles.
- Multi-Directional Sensors: Quartz piezoelectric sensors provide unparalleled stability and fatigue resistance for multi-directional force detection.
- Weight Optimization: Minimizes weight usage for cost savings and improved performance.
Durable and Maintenance-Friendly Design

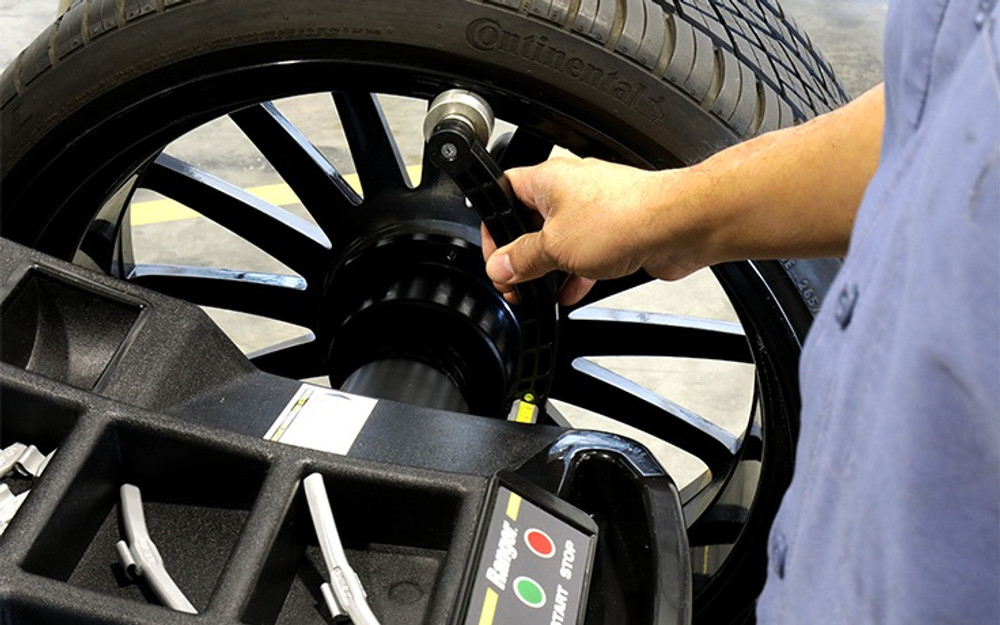

- Quick-Nut and Bell Adapter: Ensures secure, non-marring wheel mounting with reduced setup errors.
- Sealed Electrical Components: Protects from dust and debris for long-lasting reliability.

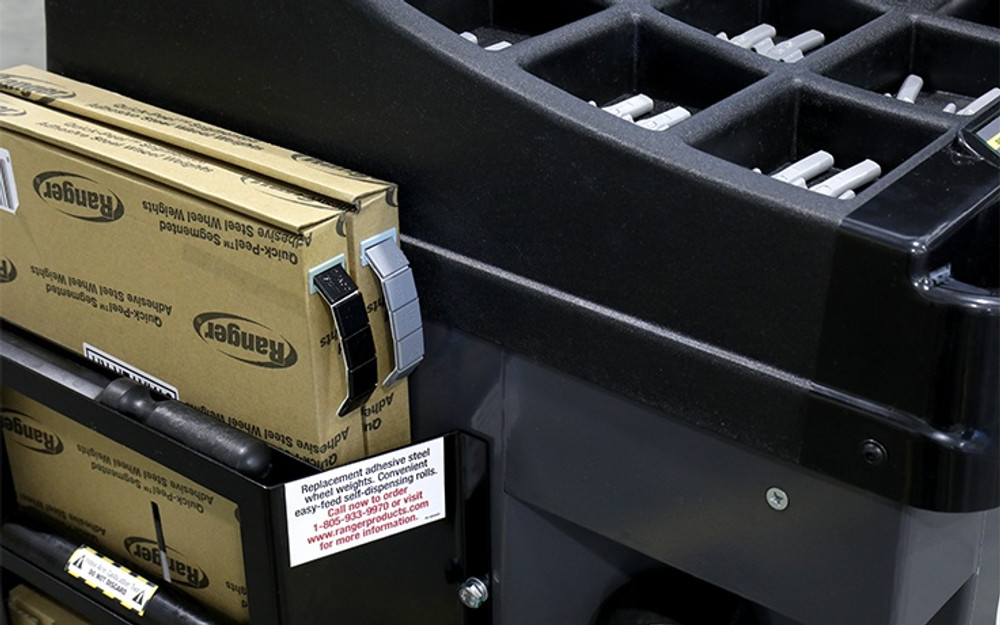

- Open-Top Tape Weight Feeder: Conveniently stores and dispenses adhesive weights for uninterrupted workflow.
Standard Accessories
- Mounting Cones: Includes three standard automotive and light truck cones (1.75” – 2.75”, 2.75” – 3.50”, 3.50” – 4.25”) and one heavy-duty truck cone (4.50” – 5.00”).
- Wheel Weight Starter Kit: Includes adhesive steel tape weights (100 silver, 100 black) and mixed clip-on weights.
- Built-In Storage: Features side cone storage pegs and high-capacity weight trays.
Specifications
| Feature | Details |
|---|---|
| Model | Ranger LS43B |
| Style | Auto & Light Truck |
| Motor | 1.5 HP, 208-240V, 50/60 Hz, 1Ph |
| Working Temperature | 27°F (-5°C) – 82°F (50°C) |
| Cycle Time | 6 seconds (avg.) |
| Balancing Modes | Dynamic / Static / 3-Alloy |
| Drive System | Belt Drive |
| Wheel Braking | Automatic / Electronic |
| Max Tire Diameter | 43” (1,100 mm) |
| Max Tire Weight | 145 lbs. (65 kg) |
| Wheel Diameter Capacity | 12” – 26” (304 mm – 660 mm) |
| Wheel Width Capacity | 4” – 15” (102 mm – 381 mm) |
| Balancing Speed | 260 RPM / 320 RPM |
| Accuracy | +/- 1 gram (.035 oz.) |
| Resolution | 0.01 ounce, 1.4° |
| Shipping Weight | 398 lbs. (181 kg) |
Why Choose the LS43B?
With the Ranger LS43B, you’re investing in a machine designed to enhance shop efficiency, reduce customer comebacks, and optimize profits. The combination of Laser-Spot™ technology, 3D Auto Data Entry, and fast cycle times ensures the precision and speed that busy shops demand. From standard vehicles to heavy-duty applications, this balancer is an essential addition to any professional service center.
