Comprehensive Tire Service Solution for Professional Shops

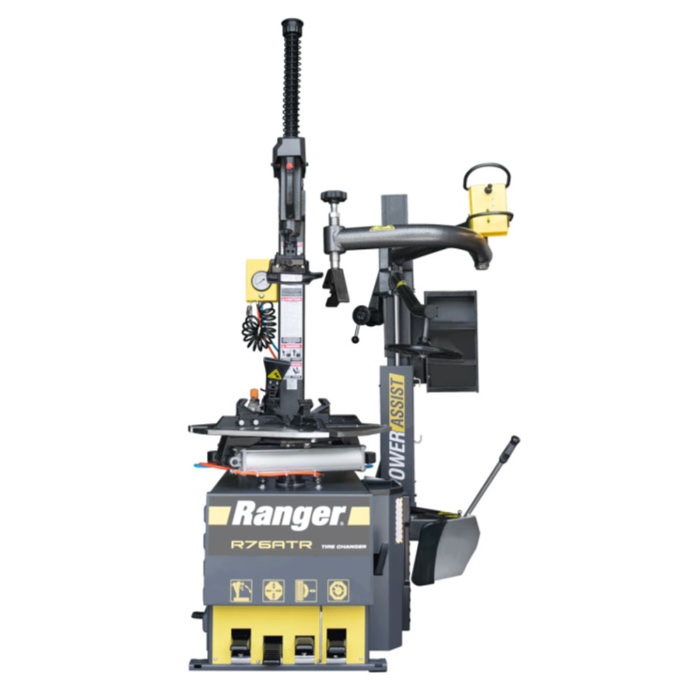

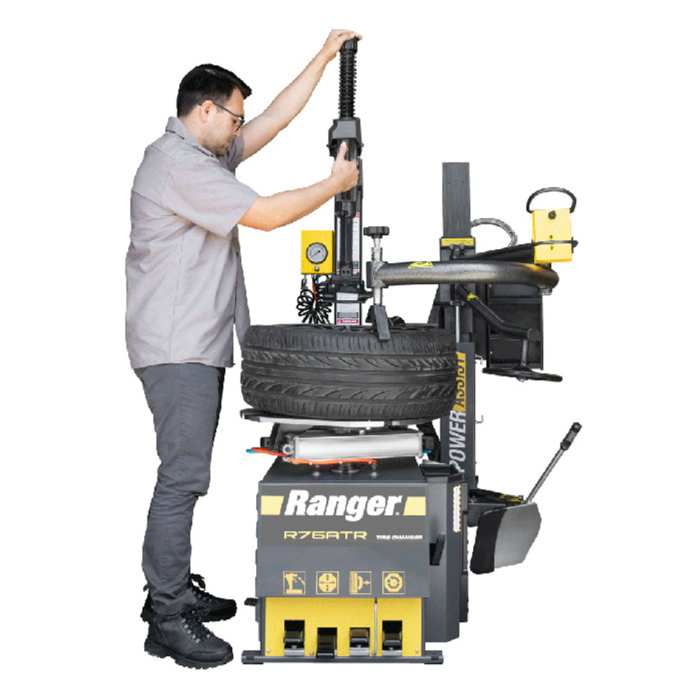

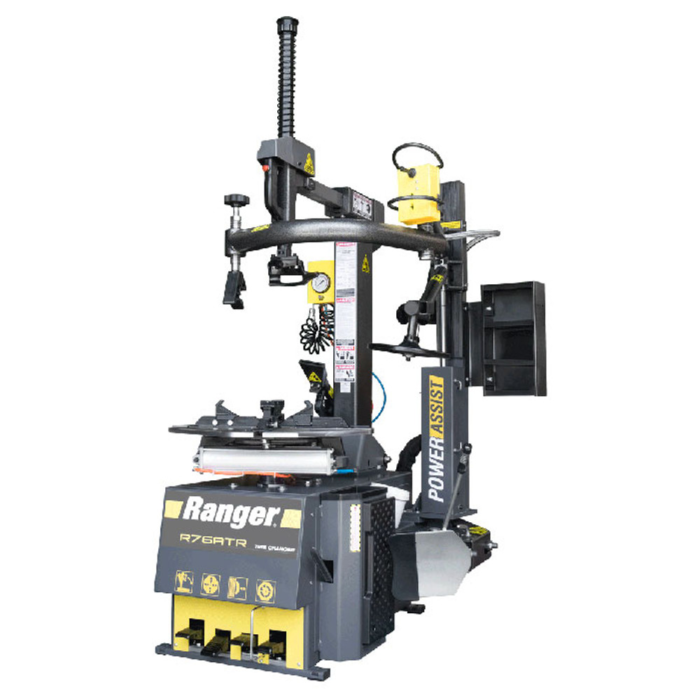

The Ranger R76ATR Tilt-Back Tire Changer combines precision, power, and efficiency, making it the ideal choice for handling even the most challenging tire and wheel combinations. Its innovative design, including the tilt-back tower and assist tower, simplifies handling low-profile and run-flat tires. With a maximum capacity of 30″, this tire changer is perfect for high-volume shops, offering unmatched reliability and safety.
Key Features
- Tilt-Back Tower Design
- Provides ample clearance for loading and unloading tires.
- Saves setup time by locking the tool head in place.
- Single Assist Tower
- Handles stiff sidewalls and run-flats with ease.
- Ensures bead placement in the drop center for added protection.
- RimGuard™ Wheel Clamps
- Adjustable clamps accommodate wheels from 9” to 30”.
- Built with durable, hardened steel for longevity.
- TurboBlast™ Bead Seating System
- Delivers a powerful burst of air for quick bead seating.
- Enhanced Bead Breaker Technology
- Adjustable blade for multi-angle tire capacity.
- Fast and efficient bilateral pneumatic accelerators.
- Advanced Drive Belt System
- Optimized for durability and reduced maintenance.
Specifications
| Feature | Details |
|---|---|
| Model | Ranger R76ATR |
| Style | Tilt-Back Tower Design |
| Motor | 3 HP (220 VAC 50-60 HZ) |
| Drive System Type | Electric / Hydraulic |
| Air Requirement | 110-175 PSI (8-12 BAR) |
| Internal Rim Clamping Capacity | 10” – 30” (254 mm – 762 mm) |
| External Rim Clamping Capacity | 9” – 28” (229 mm – 711 mm) |
| Maximum Rim Width | 15” (381 mm) |
| Maximum Tire Diameter | 43” (1,092 mm) |
| Bead Breaking System | Adjustable Pneumatic Blade |
| Bead Seating System | TurboBlast™ |
| Shipping Weight | 970 lbs. (440 kg) |
| Shipping Dimensions | 45″ x 73″ x 51″ (1,143 mm x 1,854 mm x 1,295 mm) |
| Brand | Ranger |
| Offered By | Danbury Automotive Lifts |
Why Choose the Ranger R76ATR?
With its ergonomic design, advanced bead-breaking capabilities, and powerful assist tower, the R76ATR is built to maximize efficiency and safety. This tire changer delivers superior performance for professional shops handling diverse tire sizes and styles.
