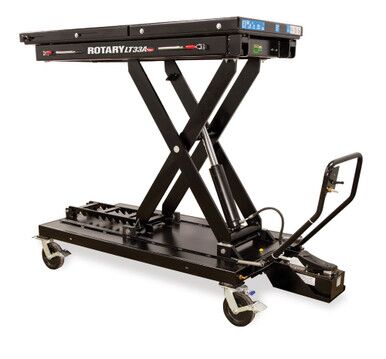

The Rotary LT33A is a versatile and robust lifting table designed to meet the demands of modern vehicle servicing, especially for electric and hybrid vehicles. With advanced features like a split sliding top, rear tilt adjustment, and exceptional stability, it’s the perfect solution for handling heavy components like batteries, engines, and transmissions.
| Feature | Description |
|---|---|
| Lifting Capacity | 3,300 lbs. |
| Max. Rise Height | Standard Casters: 67 3/8″ / Optional 8″ Casters: 69 3/8″ |
| Collapsed Height | Standard Casters: 26 1/4″ / Optional 8″ Casters: 28 1/4″ |
| Platform Dimensions | Width: 31 7/8″ / Length: Closed: 73 5/8″, Open: 81 5/8″ |
| Overall Dimensions | Width: 36 1/4″ / Length: 97 3/8″ |
| Locking Positions | 9 positions at 2 3/4″ increments (First lock at 32″ height with standard casters) |
| Air Requirements | 90-120 PSI (6.2-8.3 bar) |
| Weight | 1,300 lbs. |
Key Features
Split Sliding Top
- Extends the platform by 8” for enhanced multi-positioning without repositioning the entire table.
Rear Platform Tilt Adjustment
- Tilts up to 1° for precise under-vehicle alignment and adjustments while under load.
Side-to-Side Alignment
- Shift the platform 1” left or right with ease using simple toggle handles.
Air-Released Mechanical Locks
- Secures the table in place with 9 locking positions for added safety and stability.
Air System Controls
- Includes an air-over-hydraulic pump for effortless operation.
Foot Pedal Controls
- Conveniently raise and lower the table with foot-operated controls.
Fixture Holes
- Threaded 10mm holes on the tabletop allow for mounting a variety of brackets and tools.
Multi-Directional Casters
- Large 360° locking casters ensure smooth movement and directional control.
Why Choose the Rotary LT33A?
The LT33A combines strength, precision, and user-friendly features to meet the demands of modern workshops. Whether you’re servicing electric vehicle batteries or heavy vehicle components, this lifting table provides the flexibility and reliability needed for safe and efficient operation.
