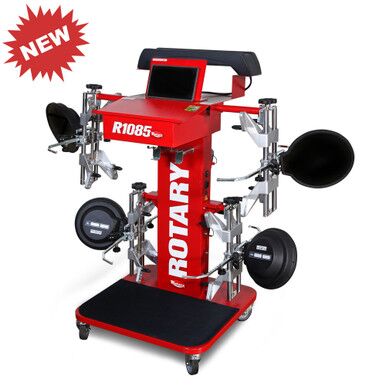

Revolutionary Tower-Free Alignment System for Maximum Efficiency and Accuracy
The Rotary R1085 Pro 3D Alignment System is designed to perform alignments up to 30% faster with unmatched precision and convenience. Featuring advanced 3D target imaging technology, fixed cameras, and remote-controlled sensors, this tower-free system eliminates space limitations and interruptions. The operator controls the process remotely using an integrated Android tablet, providing seamless operation and quicker alignments.
Key Features
Tower-Free System
- No Tower, No Limitations: No dedicated alignment bay is required.
- Fits Any Space: Operates seamlessly with any alignment lifts at any height without interruptions.
- Compact Design: Requires less than 10 ft. of space in front of the lift.
Advanced Software with On-Rack Test Drive
- Intuitive User Interface: Animated, step-by-step instructions with live adjustment illustrations.
- On-Rack Validation: Eliminates the need for physical test drives, saving time and ensuring precision.
- Magnetized Tablet: Can be positioned on the cart, lift, or vehicle during the alignment process.
Quick Locking Clamps
- Rim-Friendly Design: 4-point clamps that don’t tighten around the wheel, preventing rim damage.
- Effortless Operation: Quick and distortion-free clamping mechanism.
Patented 3D Targets
- Enhanced Accuracy: True 3D imaging technology ensures precise measurements.
- Maintenance-Free: Lightweight with built-in leveling displays and no electronic components.
Fixed Cameras with Solid Vision Technology
- Auto-Positioning Cameras: Instantly recognize targets for rapid and precise readings.
- Rugged and High-Resolution: Rubber-armored measuring heads with digital display keyboard and remote functions.
Specifications
| Feature | Details |
|---|---|
| Accuracy | Front and Rear Axles |
| Total Toe | +/- 2′ (Precision: +/- 2°) |
| Partial Toe | +/- 1′ (Precision: +/- 1°) |
| Set-Back | +/- 2′ (Precision: +/- 2°) |
| Camber | +/- 2′ (Range: +/- 3°) |
| Caster | +/- 5′ (Range: +/- 10°) |
| King-Pin | +/- 5′ (Range: +/- 10°) |
| Thrust Angle | +/- 2′ (Precision: +/- 2°) |
| Power Supply | 110V / 1Ø / 60 Hz |
Why Choose the Rotary R1085 Pro 3D Alignment System?
The R1085 offers unparalleled precision, faster alignments, and a user-friendly operation without the space limitations of traditional tower systems. Its advanced features, such as patented 3D targets, fixed cameras, and remote-controlled sensors, make it the go-to alignment solution for modern automotive workshops.
| Brand | Rotary |
|---|---|
| Offered By | Danbury Automotive Lifts |
Upgrade your alignment capabilities today with the Rotary R1085 Pro 3D Alignment System for maximum efficiency and reliability. Let me know if you need additional details or further customization!
