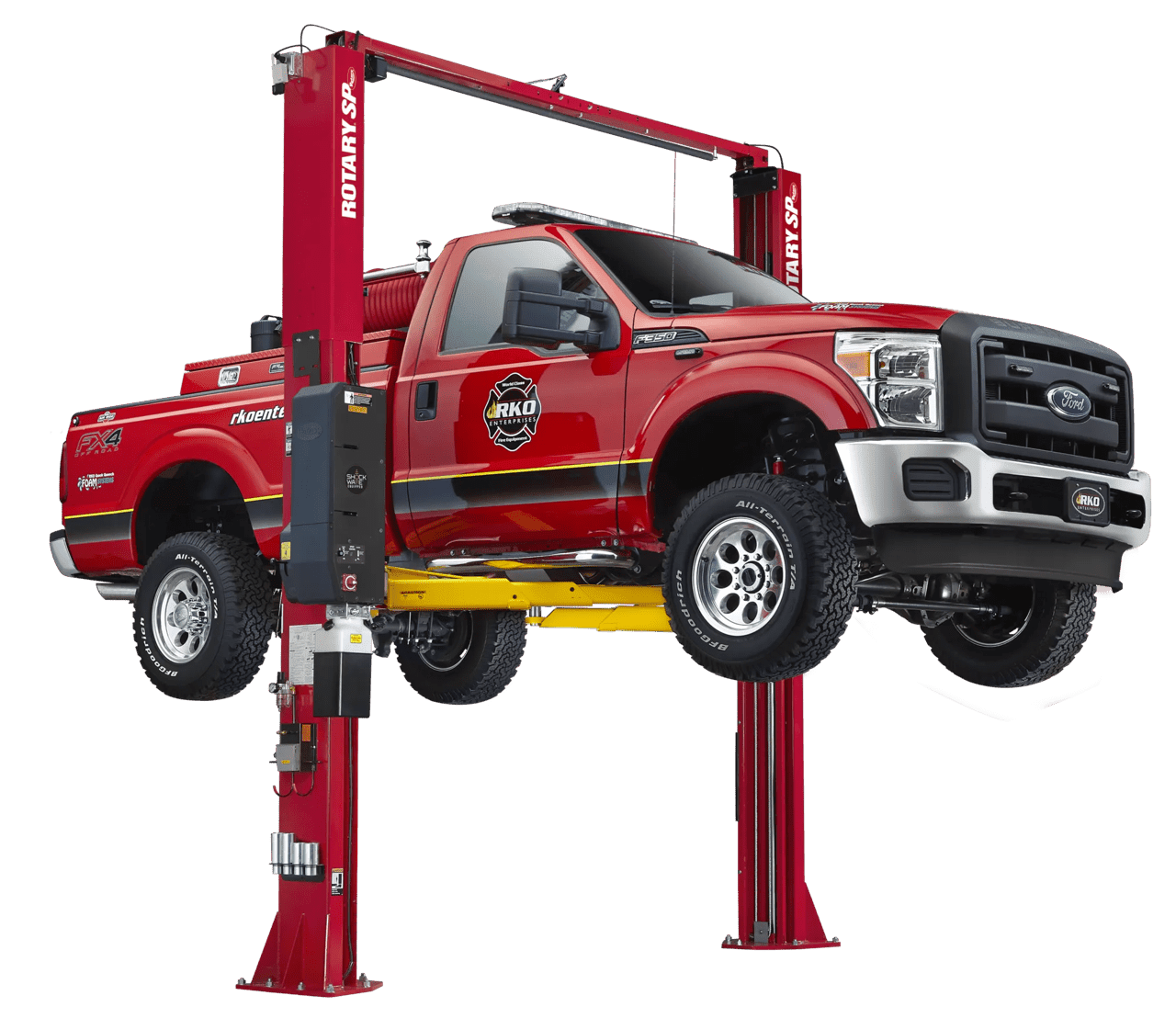

The Rotary SPO12 sets the standard for symmetric two-post lifts, offering unparalleled performance and reliability for decades. Ideal for professional workshops, the SPO12 is equipped with advanced features like the patented single-piece “double S” column design, adjustable flip-up adapters, and optional height extensions. With a capacity of 12,000 lbs., this lift is engineered to handle a wide range of vehicles, including light-duty trucks and SUVs, efficiently and safely.
Key Features
| Feature | Description |
|---|---|
| 12,000 lbs. Capacity | Heavy-duty capacity accommodates large vehicles, including light-duty trucks and SUVs. |
| Patented Double S Columns | Provides unmatched strength and durability for long-term performance. |
| True Symmetric Columns | Delivers balanced lifting for vehicles with varying centers of gravity. |
| Flip-Up Adapters | Three-position adapters for enhanced flexibility and compatibility. |
| Optional Height Extensions | Extended height models are available for vehicles with higher profiles. |
| Shockwave™ Technology Option | Cut lifting and lowering times in half for maximum efficiency. |
| Wide Drive-Thru Clearance | 8′ 6 3/8″ clearance ensures easy access for larger vehicles. |
Specifications
| Specification | Details |
|---|---|
| Brand | Rotary |
| Offered By | Danbury Automotive Lifts |
| Model | SPO12 |
| Capacity | 12,000 lbs. |
| Rise Height | 72 3/4” – 75 1/4” |
| Overall Height | 13′ 8″ |
| Base Ceiling Height Required | 14′ |
| 1′ Extension Ceiling Height | 15′ |
| 2′ Extension Ceiling Height | 16′ |
| Overall Width | 11′ 5 5/8″ |
| Drive-Thru Width | 8′ 6 3/8″ |
| Front Arm Min/Max | 27 1/2″ – 59″ |
| Rear Arm Min/Max | 27 1/2″ – 59″ |
| Min Adapter Height | 4 3/4″ |
| Motor | 2 HP |
| Voltage | 208v-230v |
| Time of Full Rise/Descent | 60 secs./40 secs. |
| Min Bay Size | 12’ x 26′ |
Why Choose the Rotary SPO12?
With a legacy of excellence, the Rotary SPO12 is the ultimate solution for shops requiring a versatile and reliable two-post lift. Whether for routine maintenance or heavy-duty repairs, this lift offers the performance and adaptability needed to meet modern automotive service demands. Enhance your shop’s efficiency and capabilities with this trusted industry leader.
