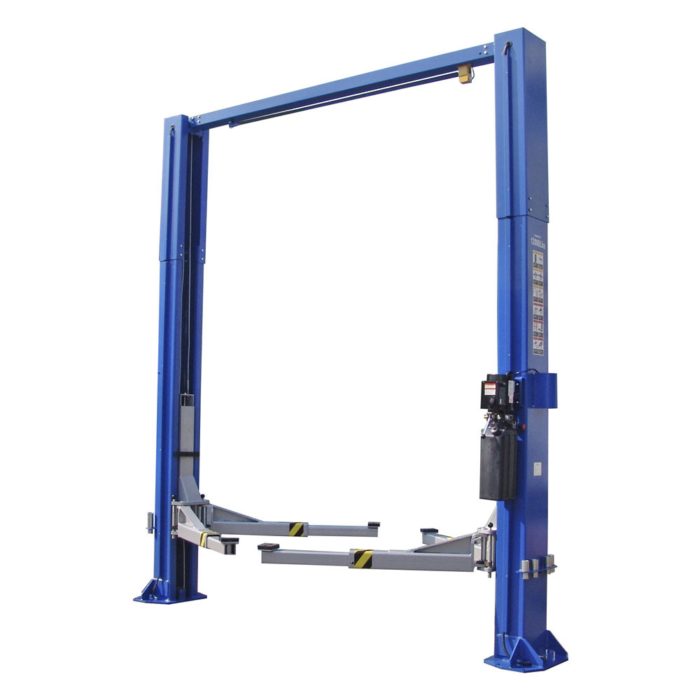

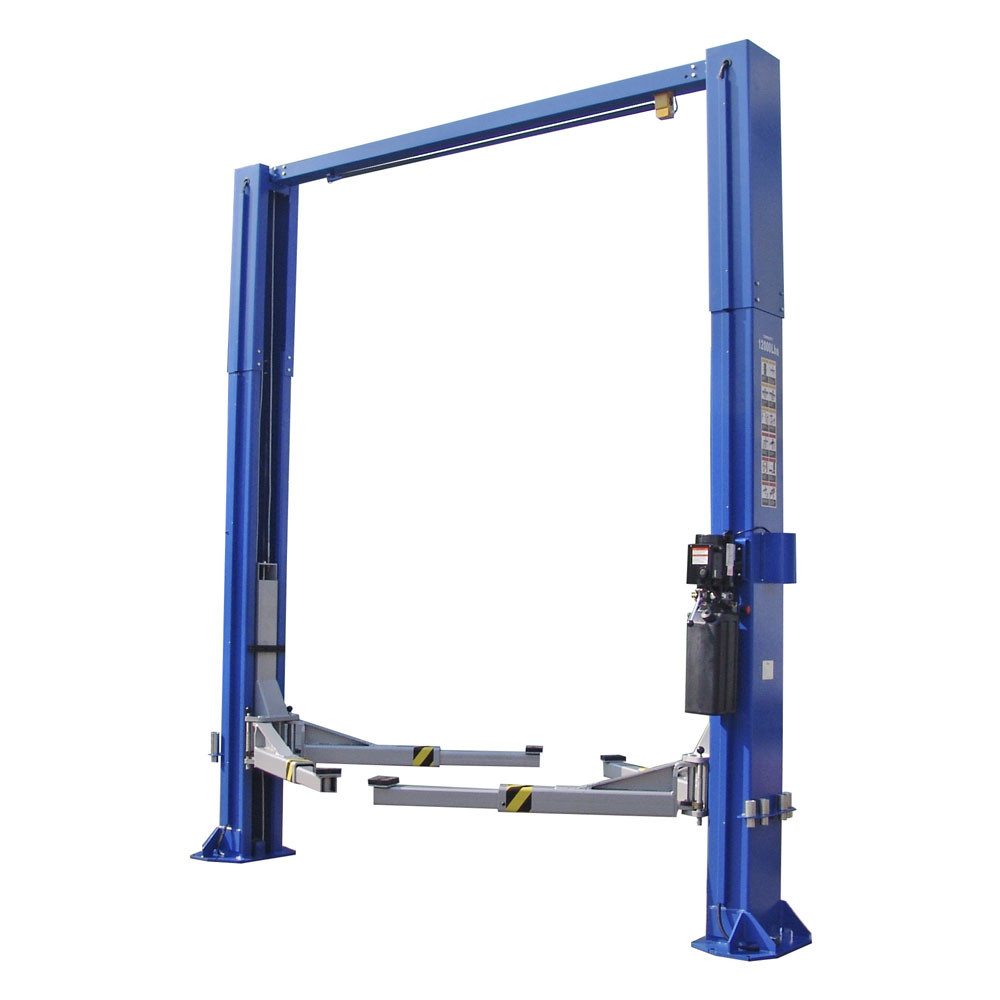

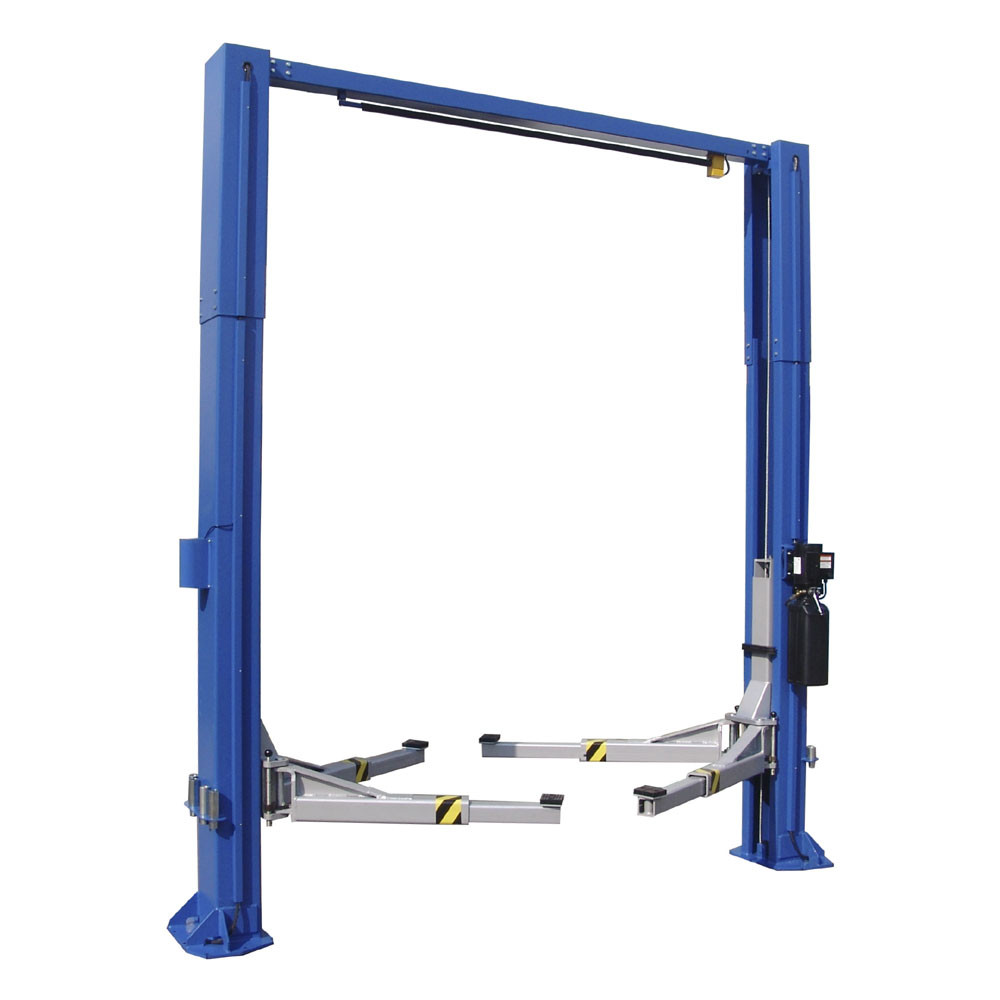

The Tuxedo TP12KC-D is a high-capacity, 12,000 lb. two-post lift with a symmetric design and direct drive mechanism, ideal for heavy-duty service needs. Engineered with robust direct-drive cylinders and an extra-long carriage to reduce slider wear, the TP12KC-D offers durability and dependable performance for servicing various vehicles, including light-duty trucks and SUVs.
Key Features
| Feature | Description |
|---|---|
| Brand | Tuxedo, offered by Danbury Automotive Lifts |
| Capacity | 12,000 lbs |
| Symmetric Direct Drive Design | Ensures balanced lifting for a variety of vehicle types |
| Direct Drive Cylinders | Provides smoother and more efficient lifting |
| 48″ Extra Long Carriage | Reduces wear on sliders, enhancing lift longevity |
| Padded Overhead Cut-Off Bar | Stops the lift at maximum height for enhanced safety |
| Single Point Pneumatic Safety Lock Release | Allows easy control over safety locks |
| Heavy Duty Arm Restraint System | Provides secure arm positioning |
| Drop-In Lift Pads with Stackable Truck Adapters | Includes adjustable pads for flexible lifting options |
| External Hose Guards | Protects hoses from wear and damage |
| Rubber Door Guards | Prevents accidental door damage |
| Powder-Coated Finish | Durable finish resistant to corrosion and wear |
Specifications
| Specification | Details |
|---|---|
| Lift Model | TP12KC-D |
| Capacity | 12,000 lbs |
| Height Overall | 165″ |
| Width Overall with Power Unit | 151″ |
| Width Between Columns | 122″ |
| Max Lift Height | 72″ |
| Min. Pad Height | 5.5″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50 seconds |
| Configuration | Symmetric |
| Floor Type | Clear Floor |
| Short Arm Reach (Min/Max) | 37-5/8″ – 56-3/4″ |
| Long Arm Reach (Min/Max) | Same |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,295 lbs |
| Power Requirement | 220V, 20 AMP, Single Phase |
The Tuxedo TP12KC-D 2-Post Direct Drive Lift from Danbury Automotive Lifts is the ideal solution for shops requiring a high-capacity, efficient, and durable lift with a compact design. Its symmetric lifting capability and robust features provide excellent value for comprehensive service applications.
